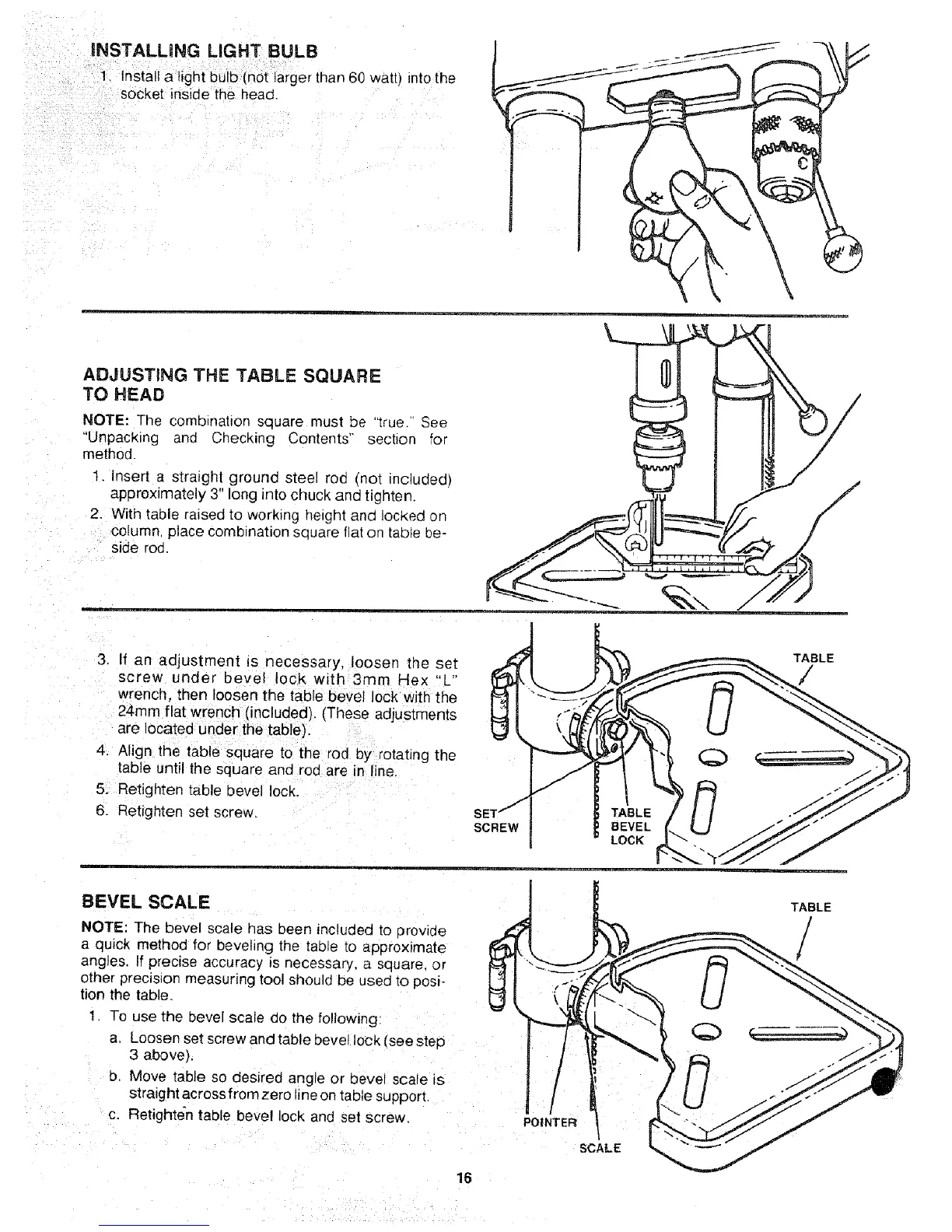

|NSTALUNG LIGHT BULB
than 60 watt) into the
!ii ¸¸¸_V¸¸:: i !
/ _iill i_:__ _i_I _i_i_i,_i_i,. _ _ _
_ _i:_i!i_i_i_ _!_ i i__ _
ADJUSTING THE TABLE SQUARE
TO HEAD
NOTE: The combination square must be 'true. See
"Unpacking and Checking Contents" secuon for
method.
1. Insert a straight ground steel roe ('not included_
approximately 3" long into chuck and tighten.
2. With table raised to working height and lOCked Dn
column place combination square flat on table oe-
side roe.
3. If an adjustment is necessary, moosen the set
screw under bevel lock with 3ram Hex "L"
wrench, then loosen the table bevel lock with the
24mnq flat wrench (included). (These adjustments
are located under the table),
4, Align the table souare to the rod by rotating the
table until the square and rod are in line.
5. Retigmen table bevel lock.
6. Retigmen set screw,
BEVEL _ U /_" /
BEVEL SCALE
NOTE: The bevel scale has been included to orovide
a quick method for beveling the table _o approximate
angles. If precise accuracy is necessary, a souare, or
other precision measuring tool should be used to posi-
tion the table.
1. To use the bevel scale ao the following:
a. Loosen set screw and table bevel lock (see step
3 above).
D Move table so desired angle or bevel scale is
straight across from zero line on table support.
c. Retighten table bevel lock and set screw.
POINTER
SCALE
TABLE
/
16
