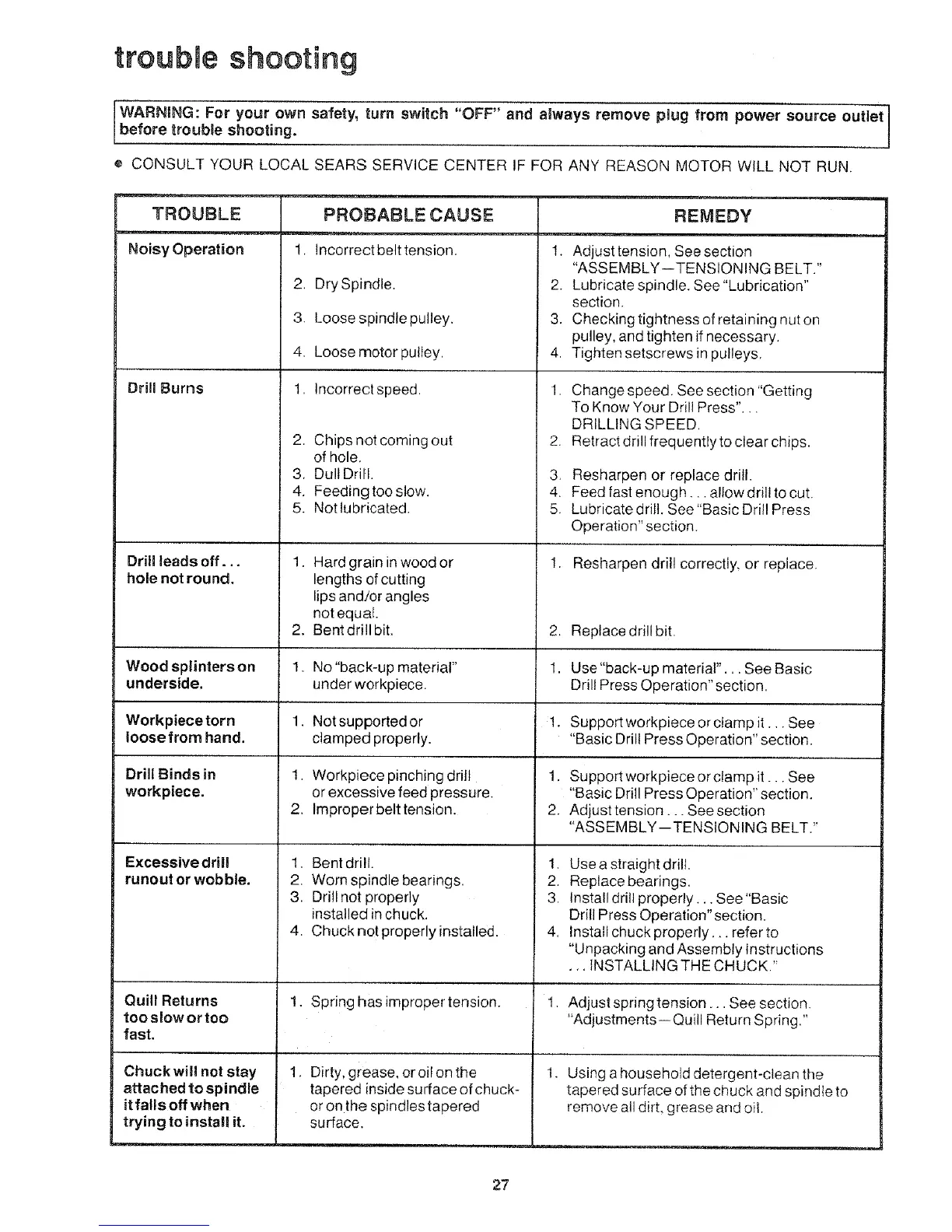

troubWe shooting
WARNING: For your own safety, turn switch "OFF" and always remove pUugfrom power source outlet-]
before troubge shooting.
]
® CONSULT YOUR LOCAL SEARS SERVICE CENTER IF FOR ANY REASON MOTOR WILL NOT RUN.
TROUBLE
NoisyOperation
Drill Burns
Drill leads off...
hole not round.
Wood splinters on
underside.
Workpiece torn
loose from hand.
Drill Binds in
workpiece.
Excessive drill
runout or wobble.
QuilmReturns
tooslowor too
fast.
Chuck will not stay
attached to spindle
itfalls off when
trying to install it.
PROBABLE CAUSE
1. Incorrectbelttension.
2, Dry Spindle.
3. Loose spindle pulley.
4. Loose motor putley,
1. Incorrect speed,
2, Chips not coming out
of hole.
3, Dull Drill.
4, Feeding too slow.
5. Not lubricated.
1. Hard grain in wood or
lengths of cutting
lips and/or angles
notequal.
2. Bentdrill bit.
1. No"back-up material"
under workpiece.
1. Not supportedor
clamped properly.
1. Workpiece pinching drilt
or excessive feed pressure.
2. Improper belt tension.
1, Bent drill.
2. Worn spindle bearings.
3. Drill not properly
installed in chuck.
4. Chuck not properly installed.
1. Spring has impropertension.
1. Dirty, grease, or oil on the
tapered inside surface of chuck-
oron the spindles tapered
surface.
REMEDY
1. Adjust tension, See section
"ASSEMBLY--TENSIONING BELT."
2. Lubricate spindle. See "Lubrication"
section.
3. Checking tightness ofretaining nut on
pulley, and tighten if necessary.
4, Tighten setscrews in pulleys.
1, Change speed. See section "Getting
To Know Your Drill Press"...
DRILLING SPEED,
2. Retract drill frequently to clear chips.
3, Resharpen or replace drill.
4. Feed fast enough,,, allow drill to cut,
5. Lubricate drill. See "Basic Drill Press
Operation" section.
1. Resharpen drill correctly, or replace.
2. Replace drill bit.
1. Use"back-up material".,. See Basic
Drill Press Operation" section.
!. Support workpiece or clamp it... See
"Basic Drill Press Operation" section.
1. Support workpiece or clamp it... See
"Basic Drill Press Operation" section.
2. Adjust tension,.. See section
"ASSEMBLY--TENSIONING BELT,"
1, Use a straight drill.
2. Replace bearings.
3. Install drill properly... See"Basic
Drill Press Operation" section,
4, Install chuck properly,,, refer to
"Unpacking and Assembly Instructions
,., INSTALLING THE CHUCK."
1. Adjust spring tension,.. See section.
"Adjustments--Quill Return Spring."
1. Using a household detergent-clean the
tapered surface ofthe chuck and spindle to
remove all dirt, grease and oil.
27
