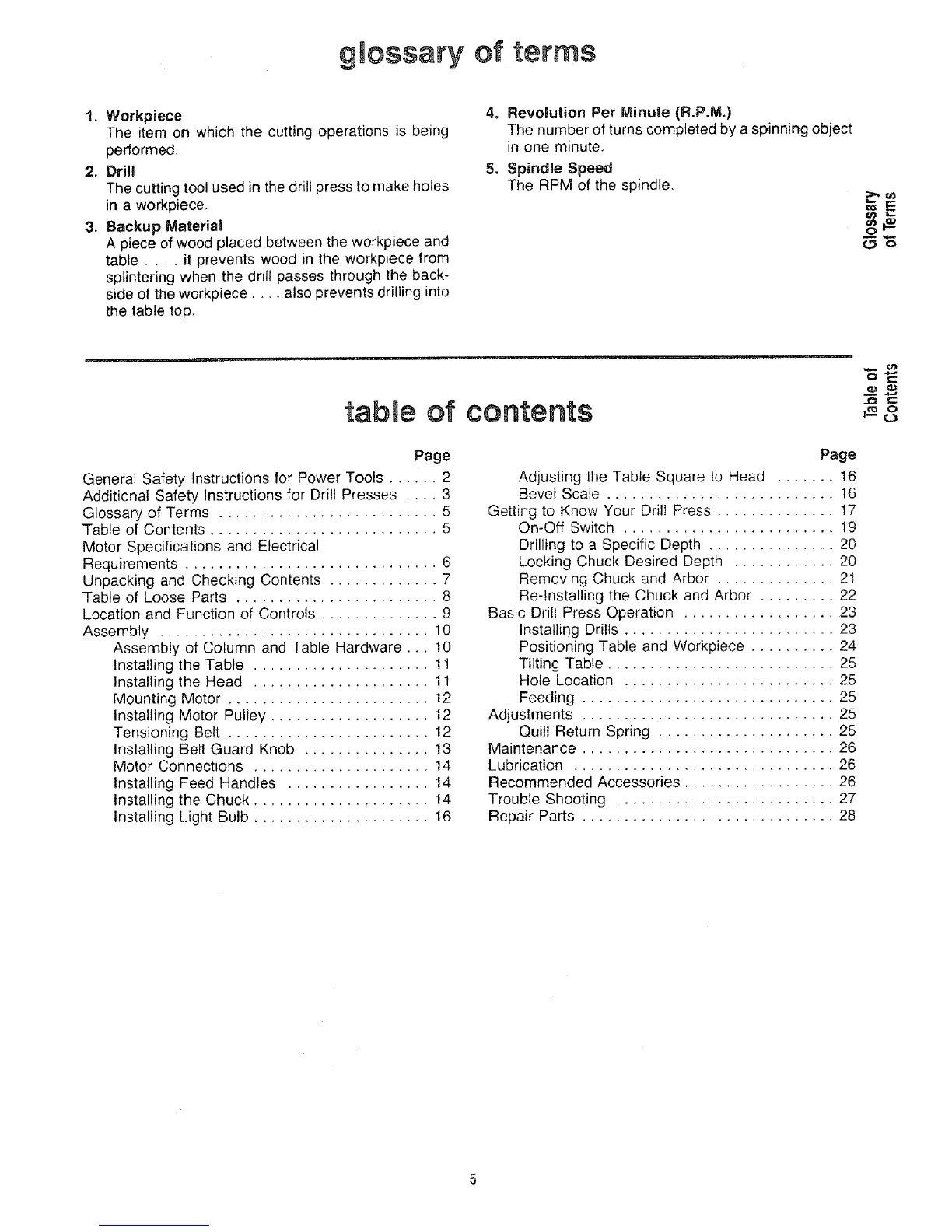

gmessary of terms
1. Workpiece
The item on which the cutting operations is being
performed.
2. Drill
The cutting tool used in the drill press to make holes
in a workpiece,
3. Backup Material
A piece of wood placed between the workpiece and
table .... it prevents wood in the workpiece from
splintering when the drill passes through the back-
side of the workpiece .... also prevents drilling into
the table top.
4. Revolution Per Minute (R.P.M.)
The number of turns completed by a spinning object
in one minute.
5, Spindle Speed
The RPM of the spindle,
_E
table of contents
Page
General Safety Instructions for Power Tools ...... 2
Additional Safety Instructions for Drill Presses .... 3
Glossary of Terms .......................... 5
Table of Contents ........................... 5
Motor Specifications and Electrical
Requirements .............................. 6
Unpacking and Checking Contents ............. 7
Table of Loose Parts ........................ 8
Location and Function of Controls .............. 9
Assembly ................................ 10
Assembly of Column and Table Hardware... 10
Installing the Table ..................... 11
Installing the Head ..................... 11
Mounting Motor ........................ 12
Installing Motor Pulley ................... 12
Tensioning Belt ........................ 12
Installing Belt Guard Knob ............... 13
Motor Connections ..................... 14
Installing Feed Handles ................. 14
Installing the Chuck ..................... 14
Installing Light Bulb ..................... 16
Page
Adjusting the Table Square to Head ....... 16
Bevel Scale ........................... 16
Getting to Know Your Drill Press .............. 17
On-Off Switch ......................... 19
Drilling to a Specific Depth ............... 20
Locking Chuck Desired Depth ............ 20
Removing Chuck and Arbor .............. 21
Re-Installing the Chuck and Arbor ......... 22
Basic Drill Press Operation .................. 23
Installing Drills ......................... 23
Positioning Table and Workpiece .......... 24
Tilting Table ........................... 25
Hole Location ......................... 25
Feeding .............................. 25
Adjustments .............................. 25
Quill Return Spring ..................... 25
Maintenance .............................. 26
Lubrication ............................... 26
Recommended Accessories .................. 26
Trouble Shooting .......................... 27
Repair Parts .............................. 28
