repmr pans
i i
!(

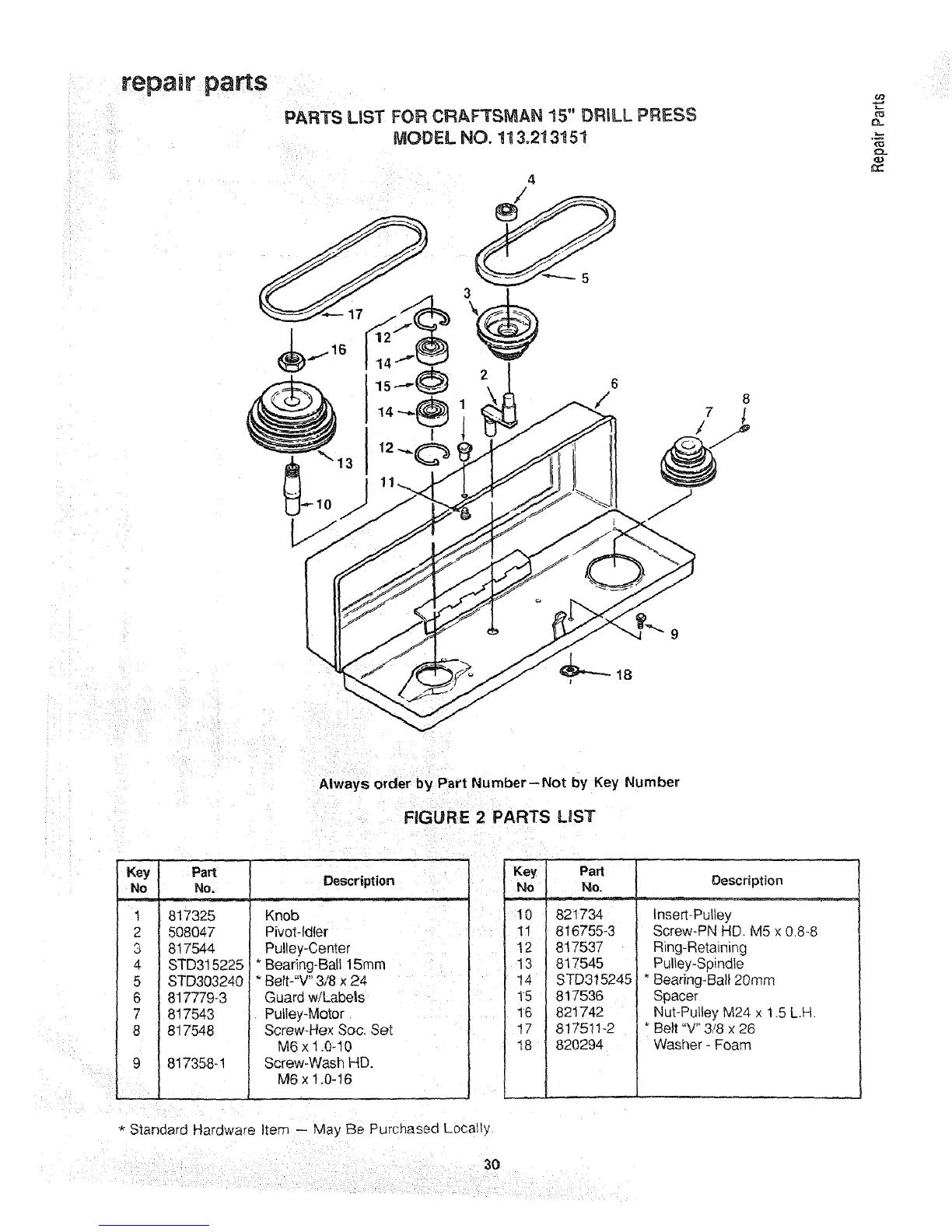

PABTS LIST FOR CRAFTSMAN 15" DRILL PRESS
MODEL NO. 113.213!51
4
7
/
13-
9
Always order by Part Number-Not by Key Number
FIGURE 2 PARTS L_ST
KeYi
No ;
m
1
2
3
4
5
6 '
7
8
I
i
9
Pa_
NO.
817325
508047
817544
STD315225
STD303240
817779-3
817543
817548
817358-1
Description
Knob
Pivot-Idler
Pulley-Center
* Bearing-Ball 15ram
Belt-"V" 3/8 x 24
Guard wtLabe_s
Pulley-Motor
Screw-He× Soc. Set
M6 x 1.6-10
Screw-Wash HD.
M6 x 1.0-16
* Standard Hardware Item -- May Be Purchased Locaily
Key
No
10
1]
12
13
14
15
16
17
t8
!
Pa_
No.
821734
816755-3
817537
817545
STD315245
817536
821742
817511-2
820294
I
Description
m_ .....
InsertPulley
Screw-PN HD, M5 × 0,8-8
Ring-Retaining
Pulley-Spindle
* Bearing-Ball 20ram
Spacer
Nut-Pulley M24 × 1.5 L.H.
"Belt "V" 3/8 x 26
Washer- Feam
3O
