3.
Assembly Procedure
03

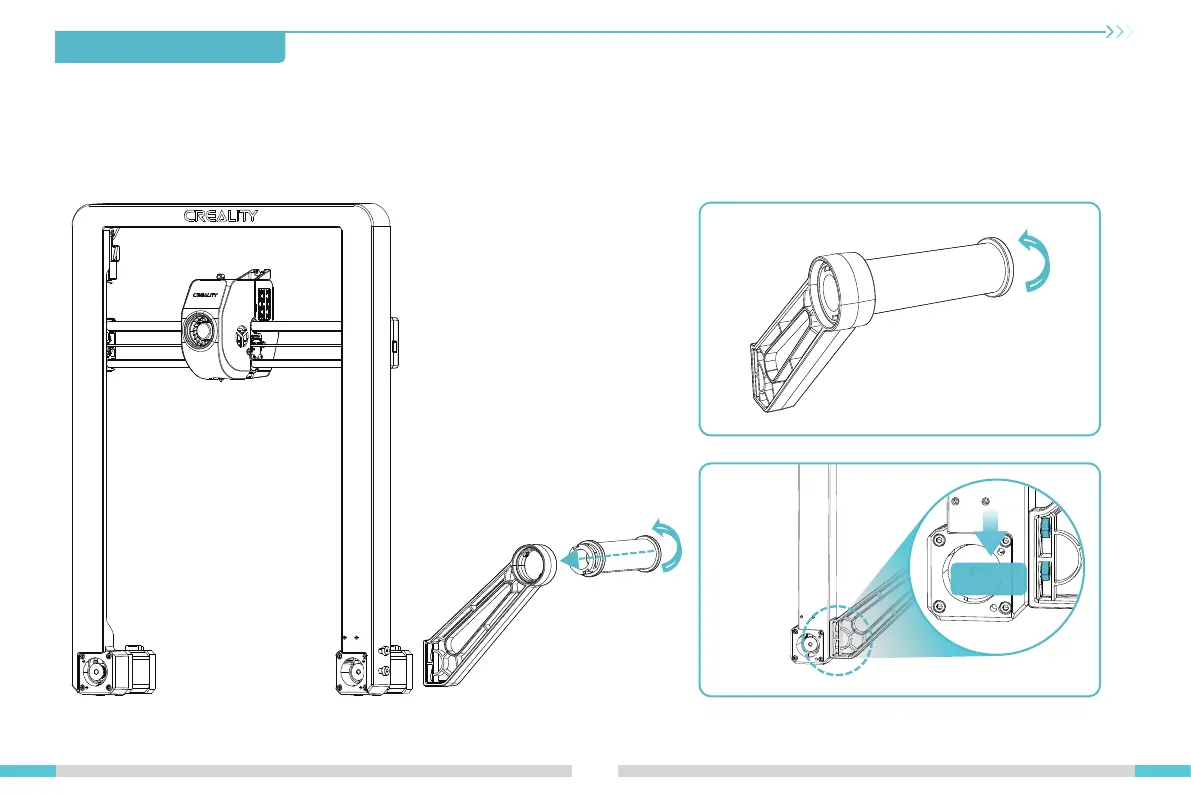

3.1 Material Rack Assembly Installation
①
Install the material rack and material barrel according to the diagram;
②
Align the installed material rack component holes with the locking positions to the immediate right of the gantry frame and secure them downwards smoothly.
①
②
Secure
downwards
6
8
Table of Contents
Default Chapter
4
Table of Contents
4
1 About the Printer
5
2 Parts List
6
3 Assembly Procedure
7
Material Rack Assembly Installation
7
Gantry Frame Assembly Installation
8
Touch Screen Installation
9
Equipment Wiring
10
4 About the Power-On Guide and User Interface
11
Power-On Guide
11
About the User Interface
13
5 First Printing
16
Filament Loading
16
LAN Printing
17
USB Flash Disk Printing
20
6 Functional Specification
21
Filament Retreat
21
Auto Extrude
23
7 Equipment Maintenance
24
Platform Plate Removal and Maintenance
24
Optical Axis Maintenance
24
8 Equipment Parameters
25
9 Circuit Wiring
26
