Connections
Connections
Ethernet 10/100 RJ45 socket
The DCS-6620 back panel features an RJ-45 connector for connections to 10Base-T Ethernet
cabling or 100Base-TX Fast Ethernet cabling. This network port supports the NWay protocol,
allowing the PTZ Internet Camera to automatically detect or negotiate the transmission speed
of the network.
Power Cord socket
The DC power input connector is located on the DCS-6620 PTZ Internet Camera’s back panel
and is labeled 12V with a single socket to supply power to the PTZ Internet Camera.
The Ethernet cable included with the DCS-6620 PTZ Internet Camera is
a Category 5 “straight through” cable. This is the recommended cable
type when the camera is connected to a 100Mbps Fast Ethernet network
router, hub or switch.

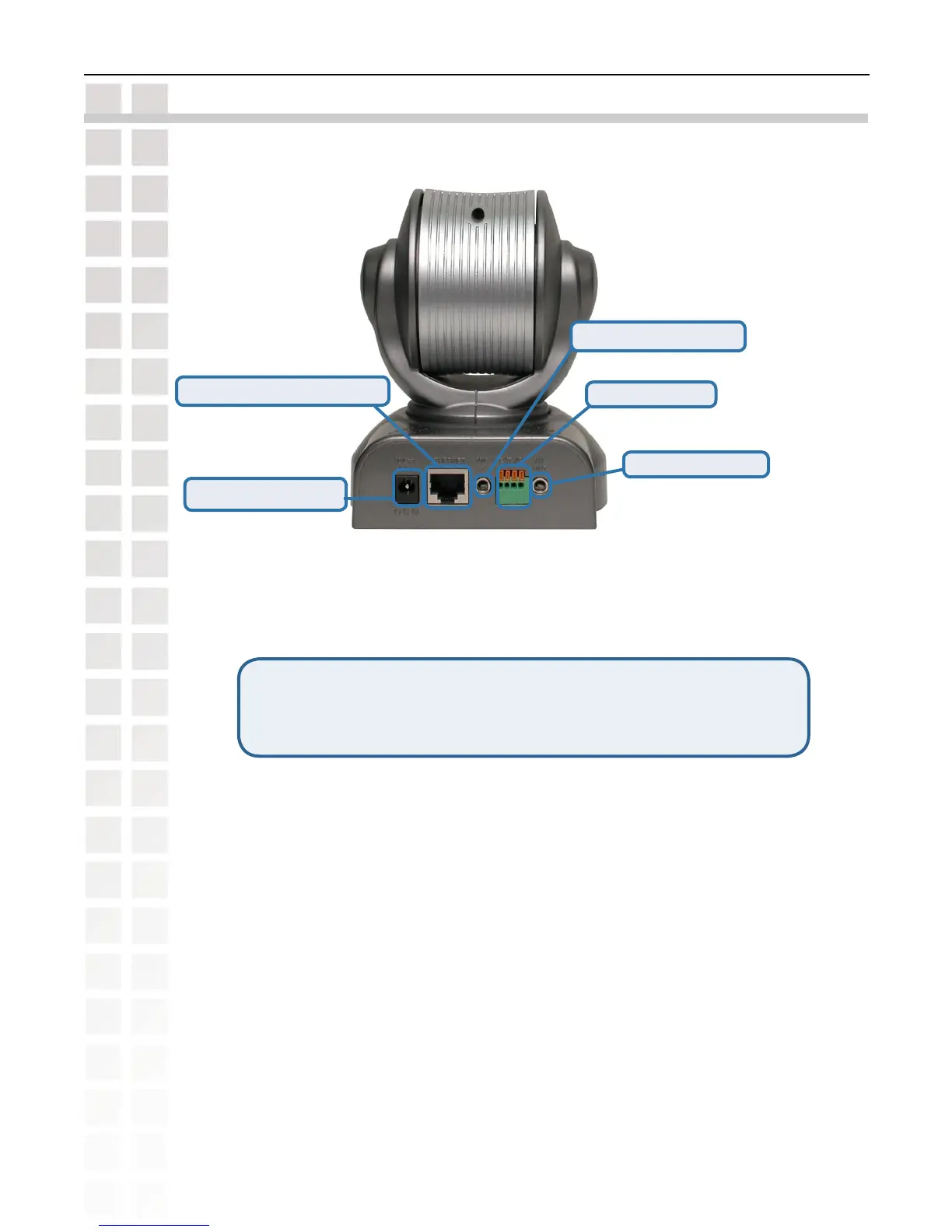

Ethernet 10/100 RJ45 socket
Power Cord socket
Microphone Connector
A/V Out Connector
External I/O Port
Microphone
The DCS-6620 PTZ Internet Camera has an internal microphone. However, you have the option
of using an external microphone by plugging it into the microphone connector.
A/V Out
Plug the included A/V cable into the A/V out connector to use the DCS-6620 with a television
or VCR.
