Using IP surveillance Software
Application Layout and Functionalities

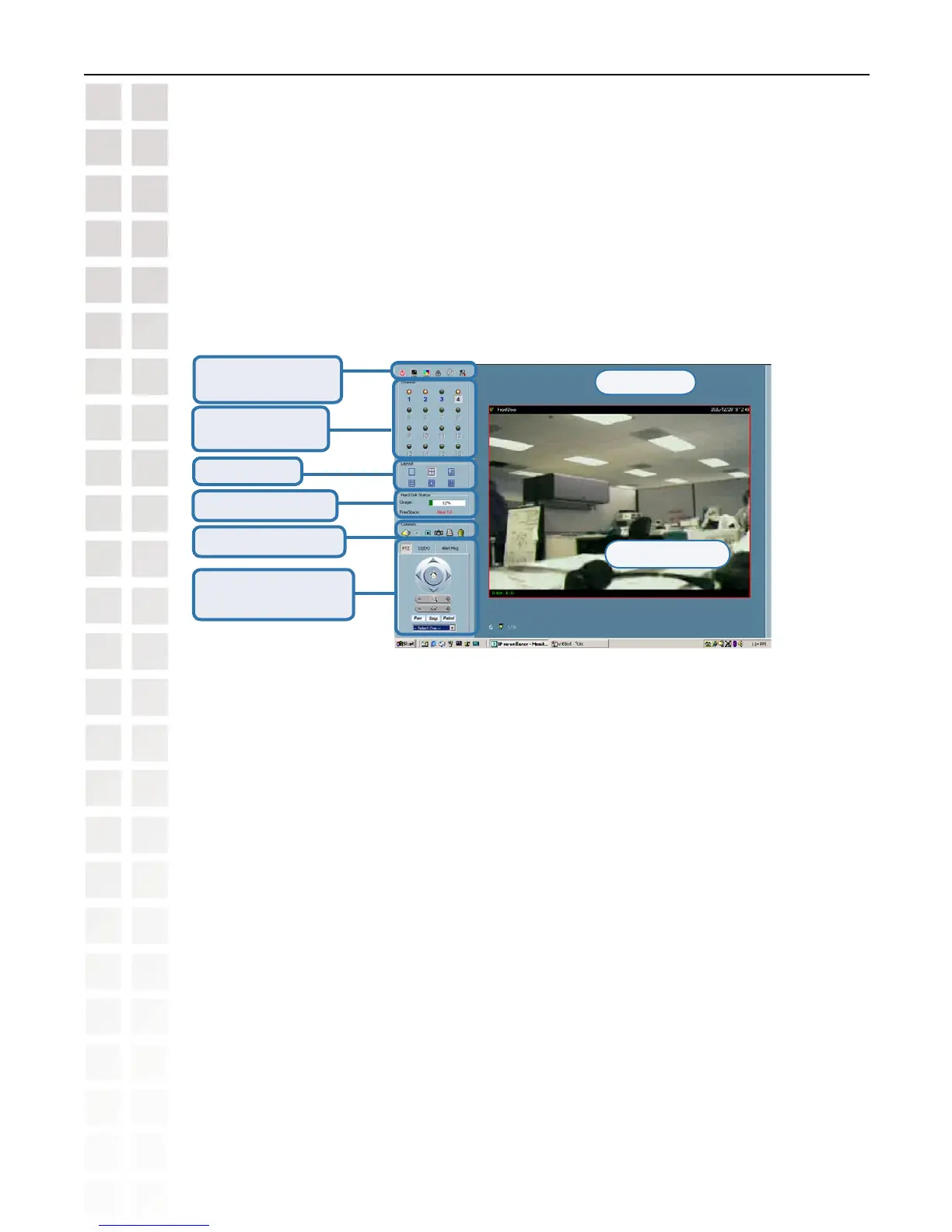

This section demonstrates a global view of the monitor tool, shown below. The components
of the monitor tool will be introduced in detail in the following sections.
Misc. Functions
Channel Area
Hard Disk Status
Layout Area
Common Controls
PTZ, DI/DO and
Alert Message
Display Frame
Video Area
There are several parts in the monitor tool:
Misc. functions:
These include application exit, minimization, full screen monitoring, lock,
stop alert, and configuration menu for camera configurations, global settings,
scheduler settings and the user information of this application software. The
tips about these operations are provided on-line when you move the mouse
cursor over them.
Channel area
This area displays the status of each video channel. The information indicates
the status of connection, recording, selection, and alert-event trigger.
Video area
In this area, you can see the video of the selected channel in the display frame.
The number of the display frames in the video area depends on the layout
chosen by the user. You can also use convenient controls to alter the video
display.
Monitor Program (continued)
