D-Link DES-1008D User Manual

10/100 Dual-Speed Switch User’s Guide
Identifying External Components
17
LED Indicators
The LED indicators of the switch include Power, Speed,
Link/Activity and Duplex Mode. The LED indicators are used to
facilitate monitoring and troubleshooting of the switch. The
following shows the LED indicators for the switch along with an
explanation of each indicator.

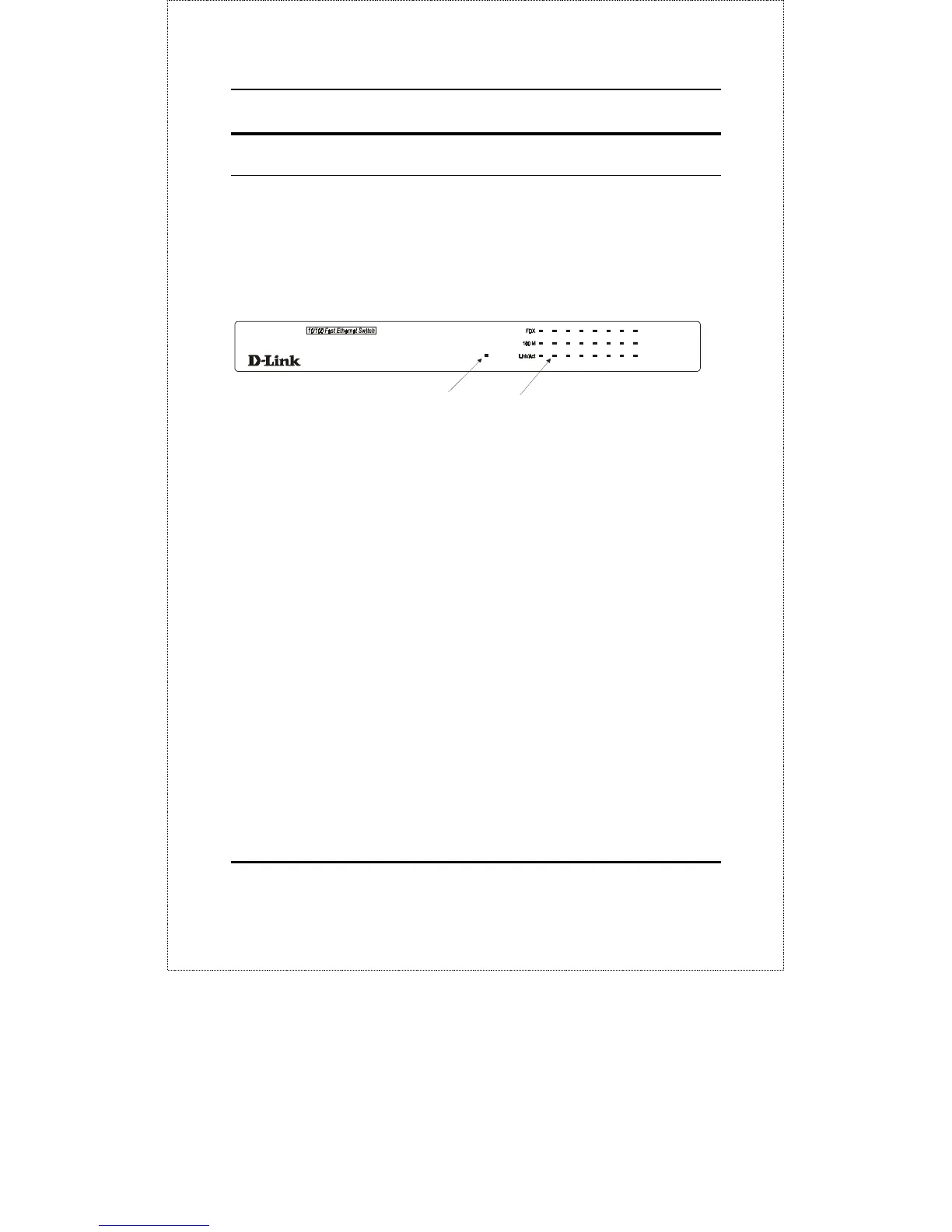

Figure 3.4 The DES-1008D Switch LED indicators
♦ Power This indicator lights green when the switch is
receiving power; otherwise, it is OFF. If this indicator is not
lit, check the DC power connector and wall jack to ensure
proper insertion of the power cord.
♦ 10/100 The LED indicator lights green when a 100 Mbps
device is connected to a port or the uplink port. If a 10 Mbps
device is connected to a port or the uplink port, the LED
indicator is OFF.
♦ Link/Act These LED indicators are lighted up green when
there is a secure connection (or link) to a device at the
analogous port. The LED indicators blink green whenever
there is reception or transmission (activity) of data occurring
at a port.
♦ FDX This LED indicator is green when a port is in full
duplex (FDX) mode and it is OFF for half duplex (HDX)
Power
DES-1008D
12345678
STATUS LEDs:
FDX (Green when full-duplex)
100M (Green when the respective port is operating at 100Mbps)
Link/Act (Green when linked, blinks green when active)
POWER LED
(Green)

D-Link DES-1008D Specifications

General

Switch type	Unmanaged
Switch layer	-
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Full duplex	Yes
Networking standards	IEEE 802.3, IEEE 802.3x
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
MAC address table	1024 entries
Product color	Black
Maximum data transfer rate	100 Mbit/s
Mean time between failures (MTBF)	116186 h
Input current	1 A
Output voltage	5 V
Package depth	158 mm
Package width	104 mm
Package height	94 mm
Package weight	310 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1885 mm
Pallet gross weight (air)	330500 g
Quantity per pallet (air)	1000 pc(s)
Shipping (inner) case width	211 mm
Shipping (inner) case height	350 mm
Shipping (inner) case length	543 mm
Shipping (inner) case weight	6230 g
Shipping (inner) case net weight	3960 g
Number of cartons per pallet (air)	50 pc(s)
Quantity per shipping (inner) case	20 pc(s)
Harmonized System (HS) code	85176990
