D-Link DES-1008D User Manual

10/100 Dual-Speed Switch User’s Guide
24
Connecting The Switch
10/100 Dual-speed and 100Base-TX Hubs
For 10/100 Dual-speed and 100Base-TX hubs, the switch’s LED
indicators should illuminate as follows:
♦ 100M indicator is ON.
♦ Link/Act is ON.
♦ FDX LED indicator is OFF.
Switch to Switch (or other devices)
The DES-1008D Dual-speed Switch can be connected to another
switch or other devices (routers, bridges, etc.) via a two-pair
Category 3, 4, 5 UTP/STP straight or crossover cable. When
connecting the DES-1008D to a 10 Mbps (only) Ethernet device, a
Category 3, 4 or 5 UTP/STP cable can be used; a connection to a
10/100 dual-speed or 100 Mbps Fast Ethernet device needs to use
Category 5 or better UTP/STP.

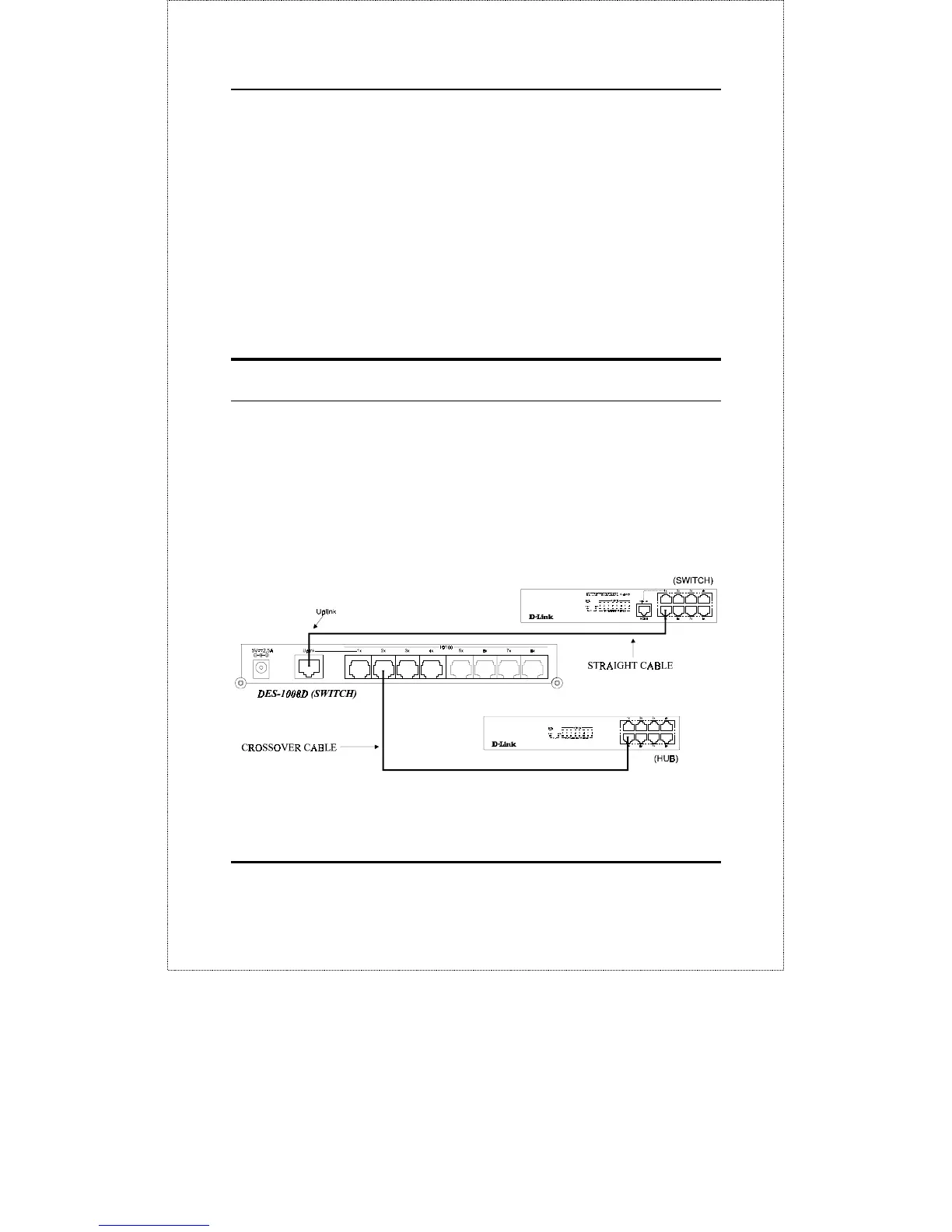

Figure 4.3 DES-1008D Uplink connections using straight and
crossover cables.

D-Link DES-1008D Specifications

General

Switch type	Unmanaged
Switch layer	-
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Full duplex	Yes
Networking standards	IEEE 802.3, IEEE 802.3x
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
MAC address table	1024 entries
Product color	Black
Maximum data transfer rate	100 Mbit/s
Mean time between failures (MTBF)	116186 h
Input current	1 A
Output voltage	5 V
Package depth	158 mm
Package width	104 mm
Package height	94 mm
Package weight	310 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1885 mm
Pallet gross weight (air)	330500 g
Quantity per pallet (air)	1000 pc(s)
Shipping (inner) case width	211 mm
Shipping (inner) case height	350 mm
Shipping (inner) case length	543 mm
Shipping (inner) case weight	6230 g
Shipping (inner) case net weight	3960 g
Number of cartons per pallet (air)	50 pc(s)
Quantity per shipping (inner) case	20 pc(s)
Harmonized System (HS) code	85176990
