D-Link DES-1016 User Manual

10/100 Fast Ethernet Switch User’s Guide
Unpacking and Setup
9

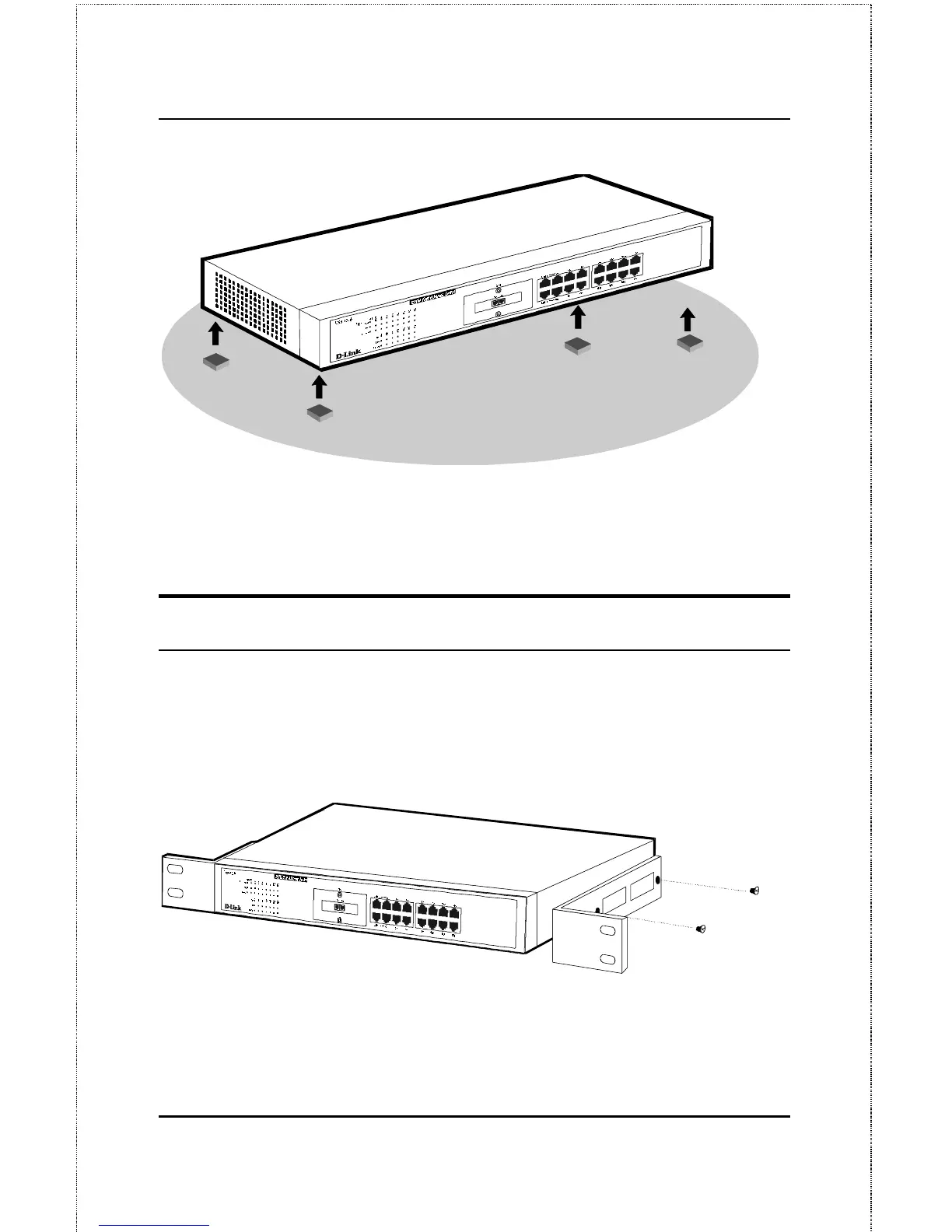

Figure 2.1 10/100 Fast Ethernet Switch installed on a Desktop or
Shelf
Rack Installation
The Switch can be mounted in an EIA standard size, 19-inch rack, which
can be placed in a wiring closet with other equipment. To install, attach the
mounting brackets on the switch’s front panel (one on each side) and secure
them with the screws provided.
Figure 2.2 Attaching the mounting brackets to the 10/100 Fast
Ethernet Switch

D-Link DES-1016 Specifications

General

Brand	D-Link
Model	DES-1016
Category	Network Router
Language	English
