4
2.1.2. Rear Panel

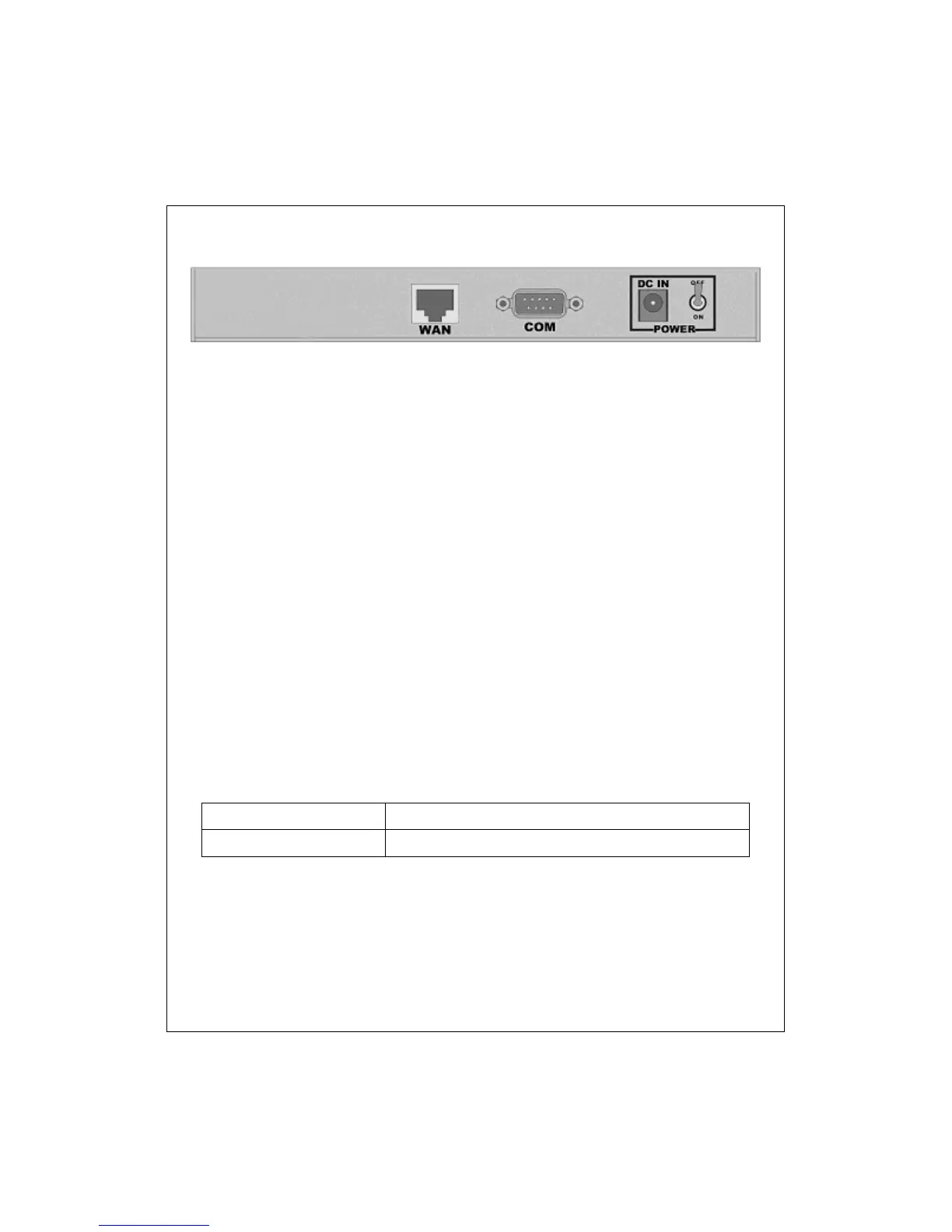

Figure 2-2 Rear Panel
WAN
WAN port socket (RJ-45). This is where you will connect to your cable (or
DSL) modem or Ethernet router.
COM
Serial port connector (9-pins D-type male). This is where you will connect
your modem. This port is also a console port.
Power
Power inlet. This is where you connect the included power adapter. Note that,
the included power adapter is DC 5V/1A. Using the wrong type of power
adapter may cause damage to the DI-704.
2.2 Installation Requirements
The DI-704 can be positioned at any convenient place in your office or house. No special
wiring or cooling requirements is needed. However, you should comply with the following
guidelines to install:
! Place the DI-704 on a flat horizontal surface.
! Keep the DI-704 away from excessive heat.
! Do not place the DI-704 in a dusty or wet environment.
The recommended operational specifications of DI-704 are:
Temperature 0
o
C ~ 55
o
C
Humidity 5 % ~ 90 %
In addition, remember to turn off the power, remove the power cord from the outlet, and keep
your hands dry when you install the DI-704.
