D-Link DIR-505 User Manual

107D-Link DIR-505 User Manual
Section 3 - Conguration

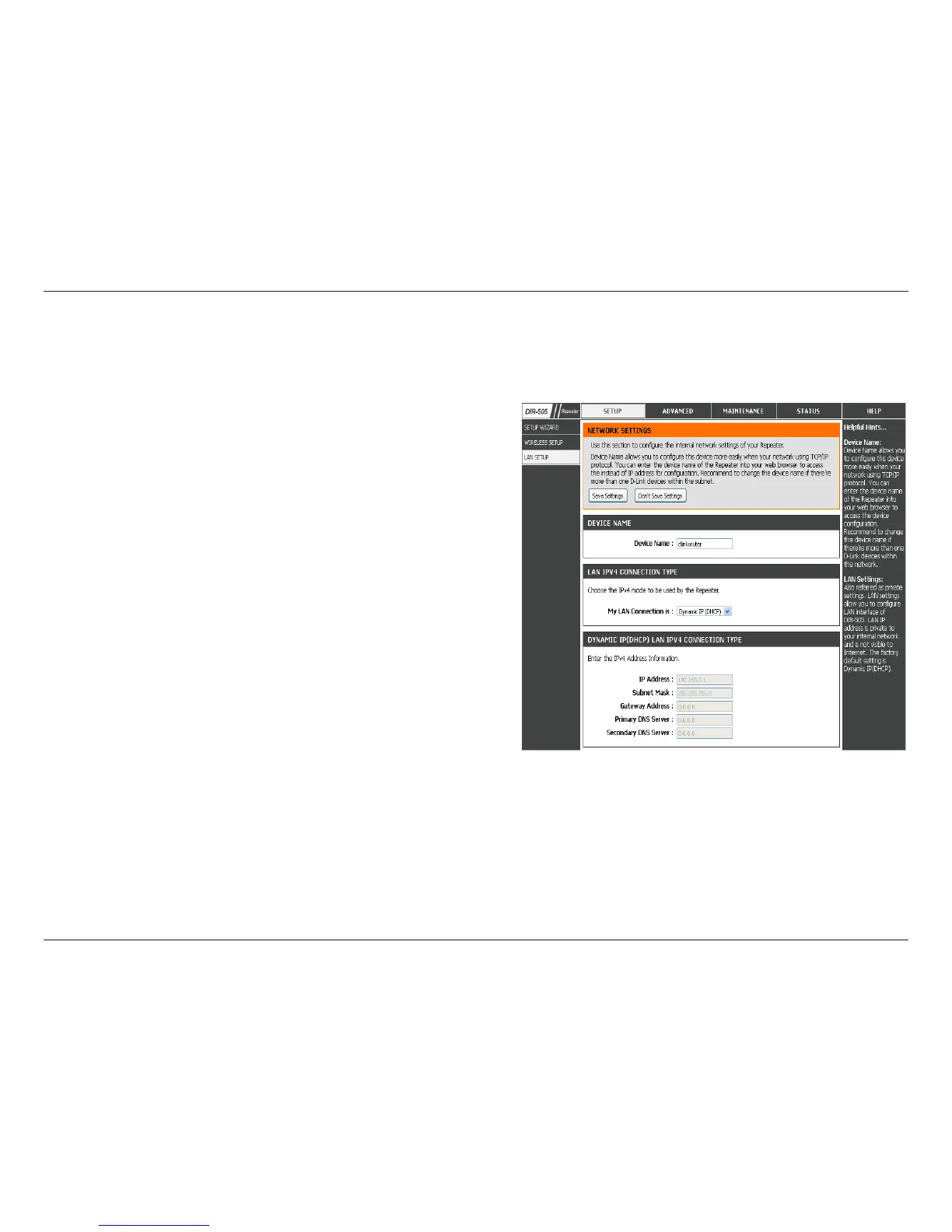

LAN Setup
This section will allow you to change the local network settings of the access point and to congure the DHCP settings.
Device Name:
LAN Connection
Type:
IP Address:
Subnet Mask:
Gateway
Address:
Enter the Device Name of the AP. It is recommended to
change the Device Name if there is more than one D-Link
device within the subnet.
Use the drop-down menu to select Dynamic IP (DHCP)
to automatically obtain an IP address on the LAN/private
network.
Enter the IP address of the access point. The default IP
address is 192.168.0.50. If you change the IP address, once
you click Apply, you will need to enter the new IP address
in your browser to get back into the conguration utility.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.

D-Link DIR-505 Specifications

General

Frequency Band	2.4 GHz
USB Port	1 x USB 2.0
Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Wireless Speed	Up to 150 Mbps
Antenna	Internal Antenna
Wireless Standard	802.11b/g/n
Ethernet Ports	1 x 10/100 Mbps
Security	WEP, WPA, WPA2
Operating Modes	Router, Access Point, Wi-Fi Hotspot
Weight	97.7 grams (3.44 ounces)
Power Supply	AC Input: 100 to 240 V AC, 50/60 Hz
