D-Link DIR-600 User Manual

105D-Link DIR-600 User Manual
Section 5 - Connecting to a Wireless Network

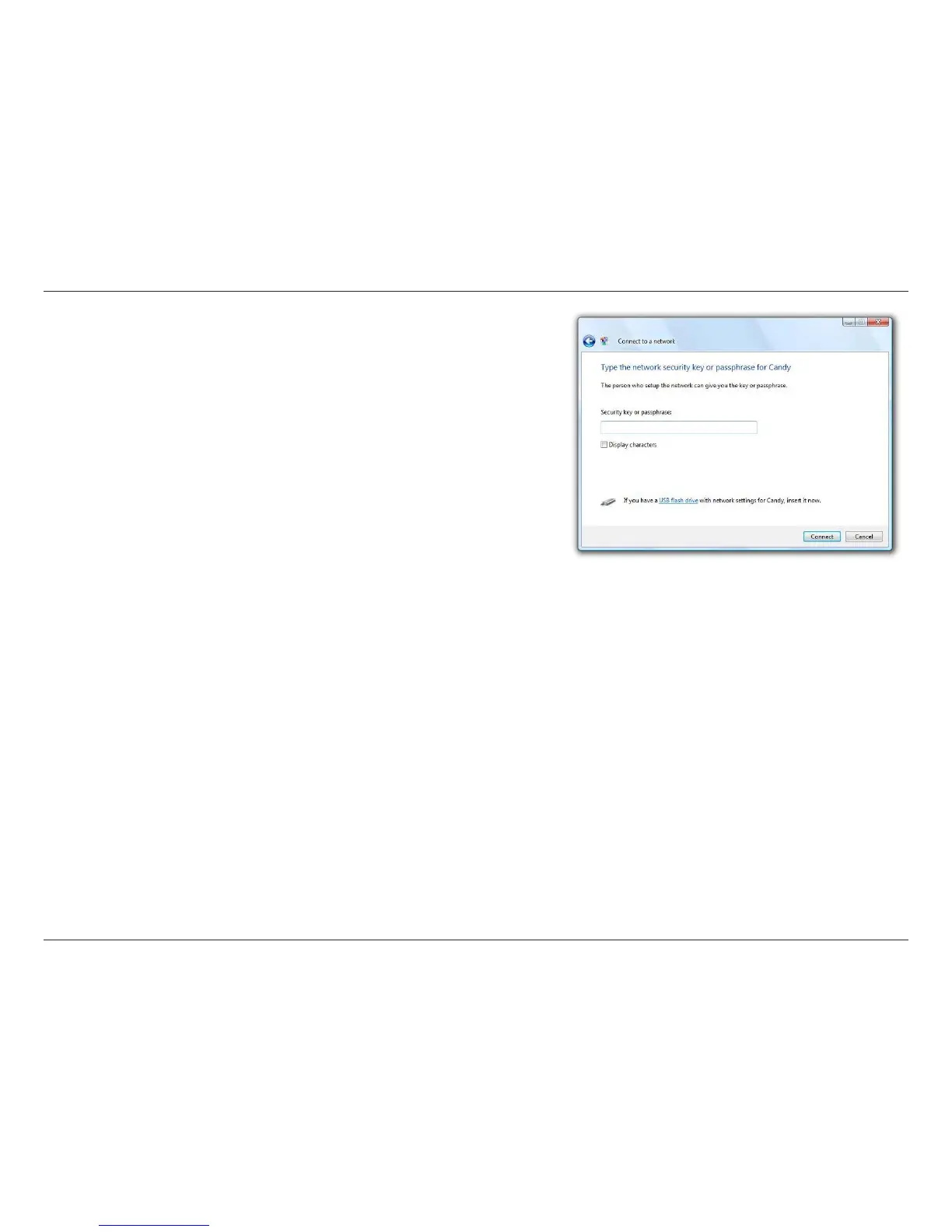

3. Enter the same security key or passphrase that is on your router and
click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.

D-Link DIR-600 Specifications

Wireless Signal Rates

IEEE 802.11n 20MHz Channel	65/72.2 Mbps (max)
IEEE 802.11n 40MHz Channel	135/150 Mbps (max)
IEEE 802.11g	54 Mbps - 48 Mbps - 36 Mbps - 24 Mbps - 18 Mbps - 12 Mbps - 11 Mbps - 9 Mbps - 6 Mbps

Operating Environment

operating temperature	0 °C to 40 °C (32 °F to 104 °F)
storage temperature	-20 °C to 65 °C (-4 °F to 149 °F)
humidity range	10% to 95% (non-condensing)

Frequency Range

wireless frequency range	2.4 GHz to 2.4835 GHz (802.11g/n)

Weight and Dimensions

length	160 mm (6.3 inches)
width	120 mm (4.72 inches)
height	59 mm (2.32 inches)
