DIR-825/AC Wireless AC1200 Dual Band Gigabit Router with
3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
In the Static DHCP section, you can specify MAC address and IP address pairs (set a fixed IPv4
address in the local area network for a device with a certain MAC address). The router assigns IP
addresses in accordance with the specified pairs only when the DHCP server is enabled (in the
DHCP server section, in the Mode drop-down list, the Enable value is selected).

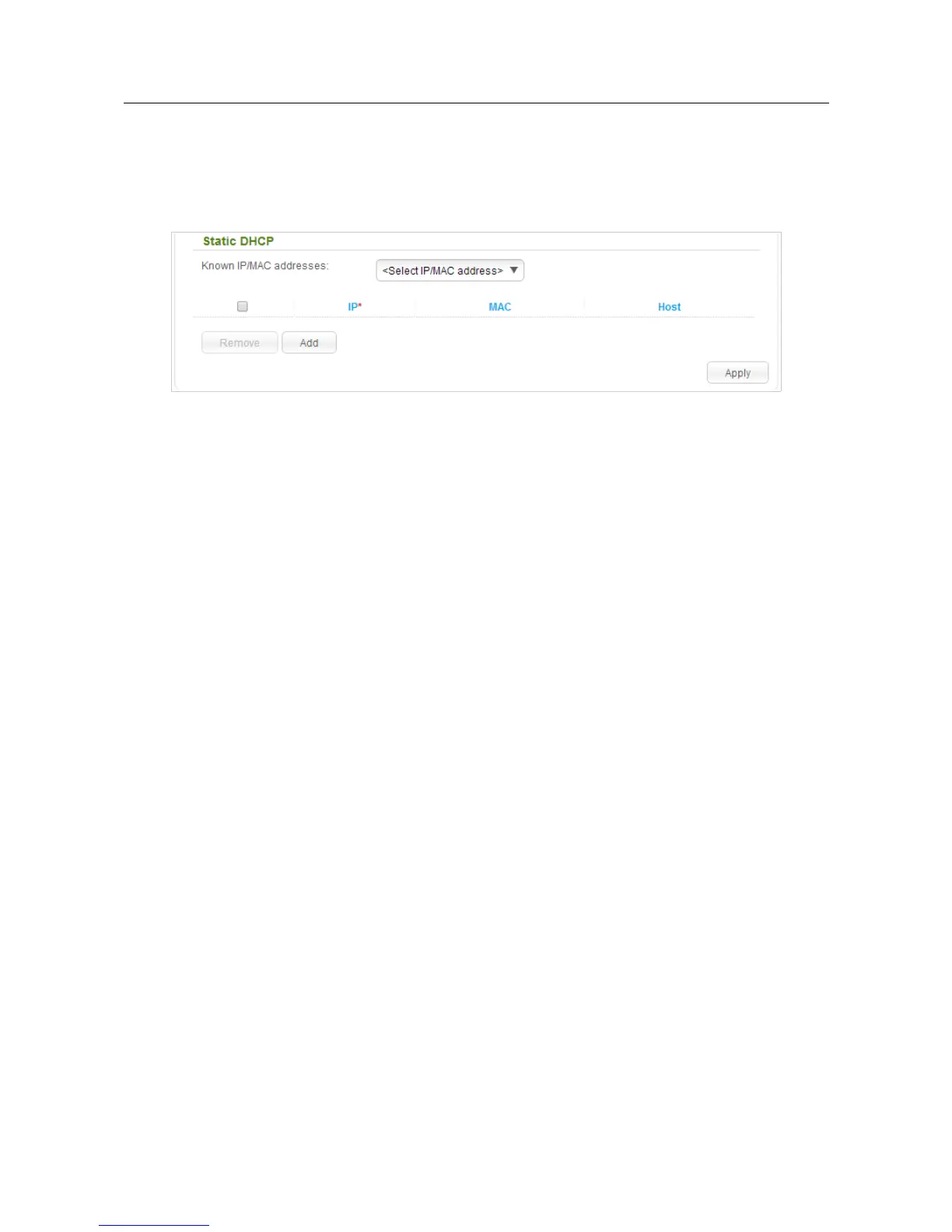

Figure 114. The section for creating MAC-IP pairs.
To create a MAC-IP pair, click the Add button. In the IP field, enter an IPv4 address which will be
assigned to the device from the LAN, then in the MAC field, enter the MAC address of this device.
In the Host field, specify a network name of the device for easier identification (optional).
Also you can create a MAC-IP pair for a device connected to the router's LAN at the moment. To do
this, select the relevant value from the Known IP/MAC addresses drop-down list (the IP and
MAC fields will be filled in automatically).
When all needed MAC-IP pairs are specified, click the Apply button.
Existing MAC-IP pairs are displayed in the table of the Static DHCP section. To remove a pair,
select the checkbox in the relevant line in the table and click the Remove button. Then click the
Apply button.
