DIR-825/AC Wireless AC1200 Dual Band Gigabit Router with
3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
PPPoE + Static IP Connection

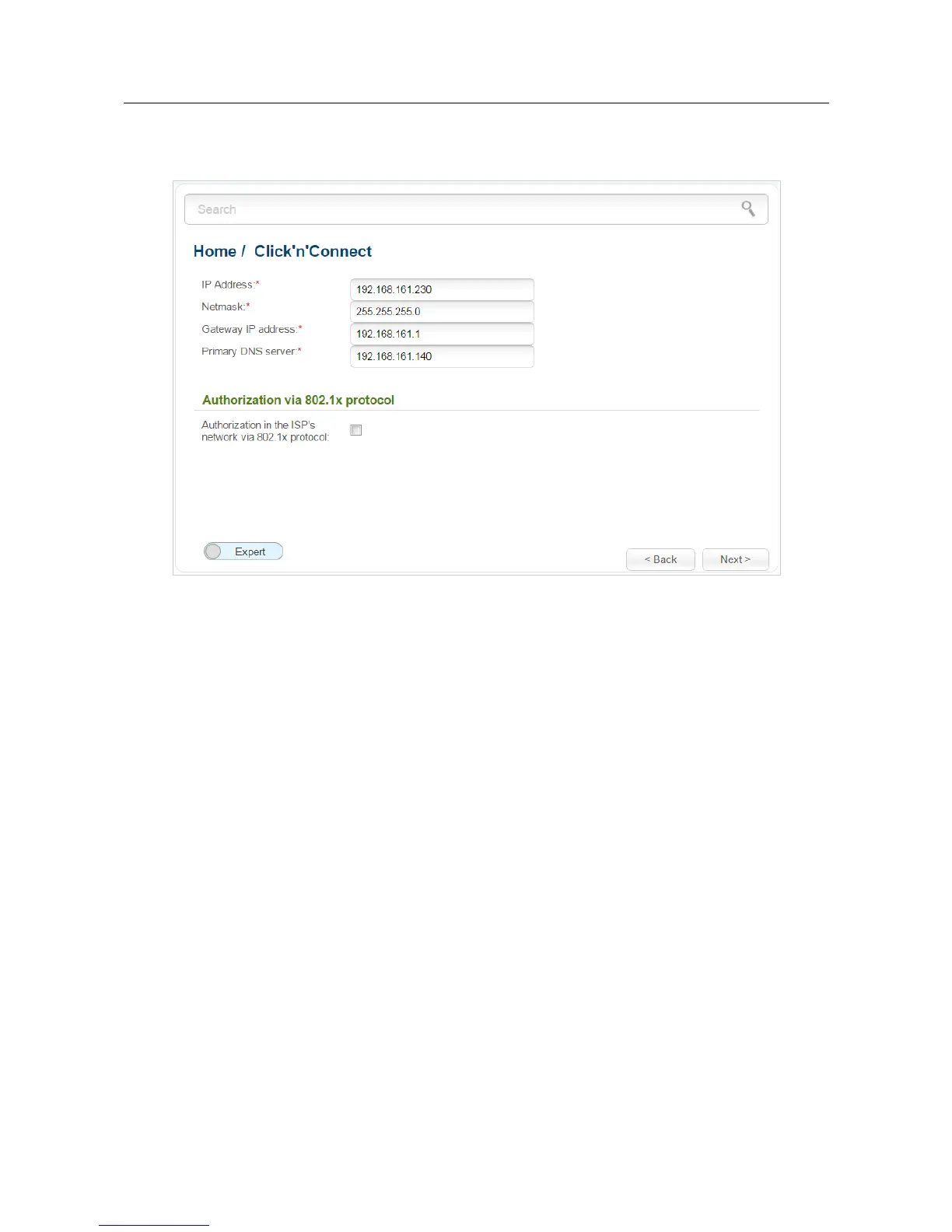

Figure 32. Configuring PPPoE + Static IP WAN connection.
Fill in the IP Address and Netmask fields.
In the Gateway IP address field, enter the IP address of the gateway used by this WAN
connection.
In the Primary DNS server field, enter the address of the primary DNS server.
If your wired ISP uses authorization via the 802.1x protocol, in the Authorization via 802.1x
protocol section, select the Authorization in the ISP's network via 802.1x protocol
checkbox and fill in the fields of the section in accordance with data provided by your ISP.
As a rule, the specified settings are enough at this step to configure a connection of the selected
type. If you need to specify additional settings, open the expert settings mode. To do this, use the
switch in the bottom left corner of the page (for a detailed description of all the connection's
parameters, see the Creating PPPoE + Static IP or PPPoE + Dynamic IP WAN Connection
section, page 114).
Click the Next button to continue.
Page 56 of 257
