DIR-825/AC
Wireless
AC1200
Dual
Band
Gigabit
Router
with
3G/L
TE
Support and USB Port
User Manual
Configuring via Web-based Interface

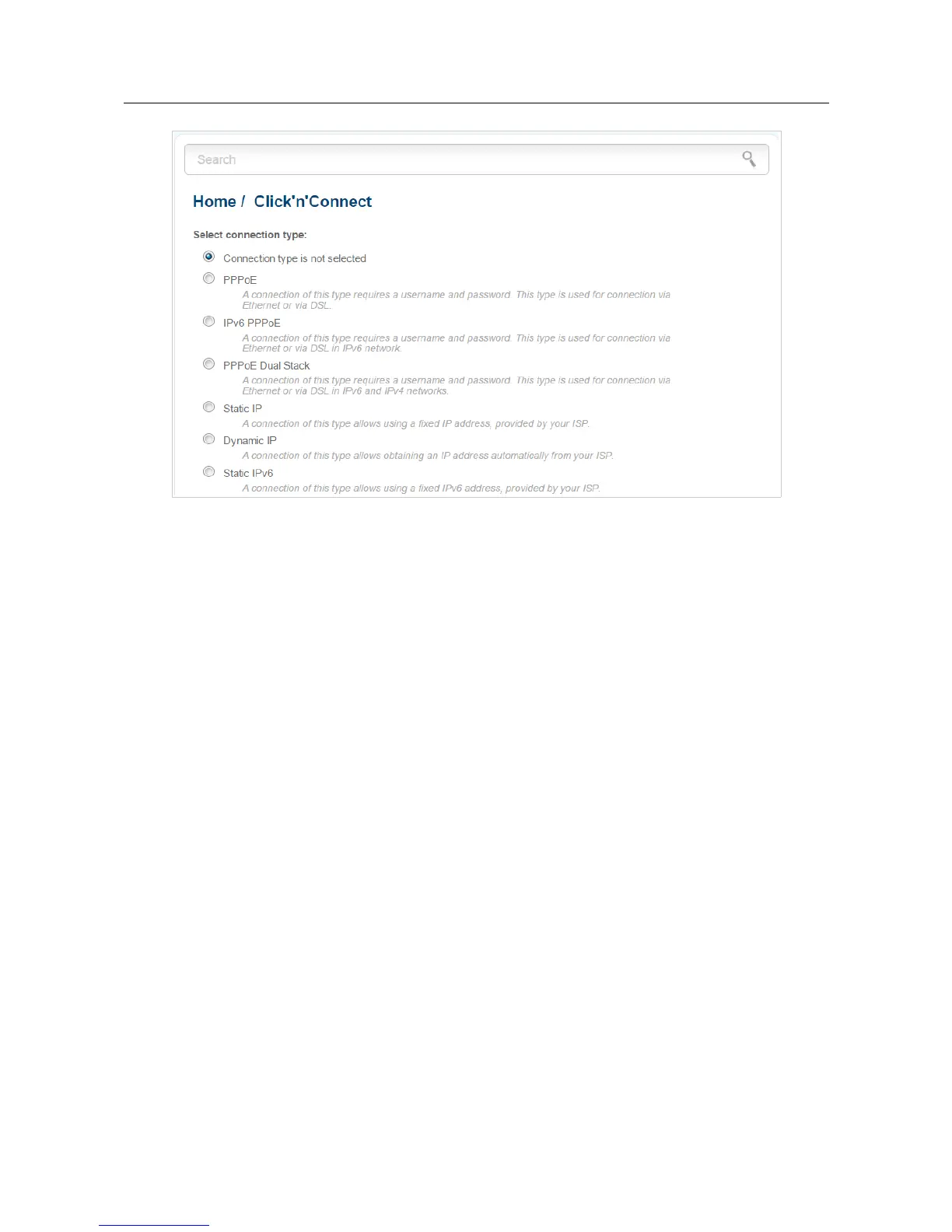

Figure 25. The page for selecting the connection ty
pe.
On the opened page, select the needed choice of the radio button and click the
Next
button.
Page
49
of 257
48
50
