DIR-825/AC Wireless AC1200 Dual Band Gigabit Router with
3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface

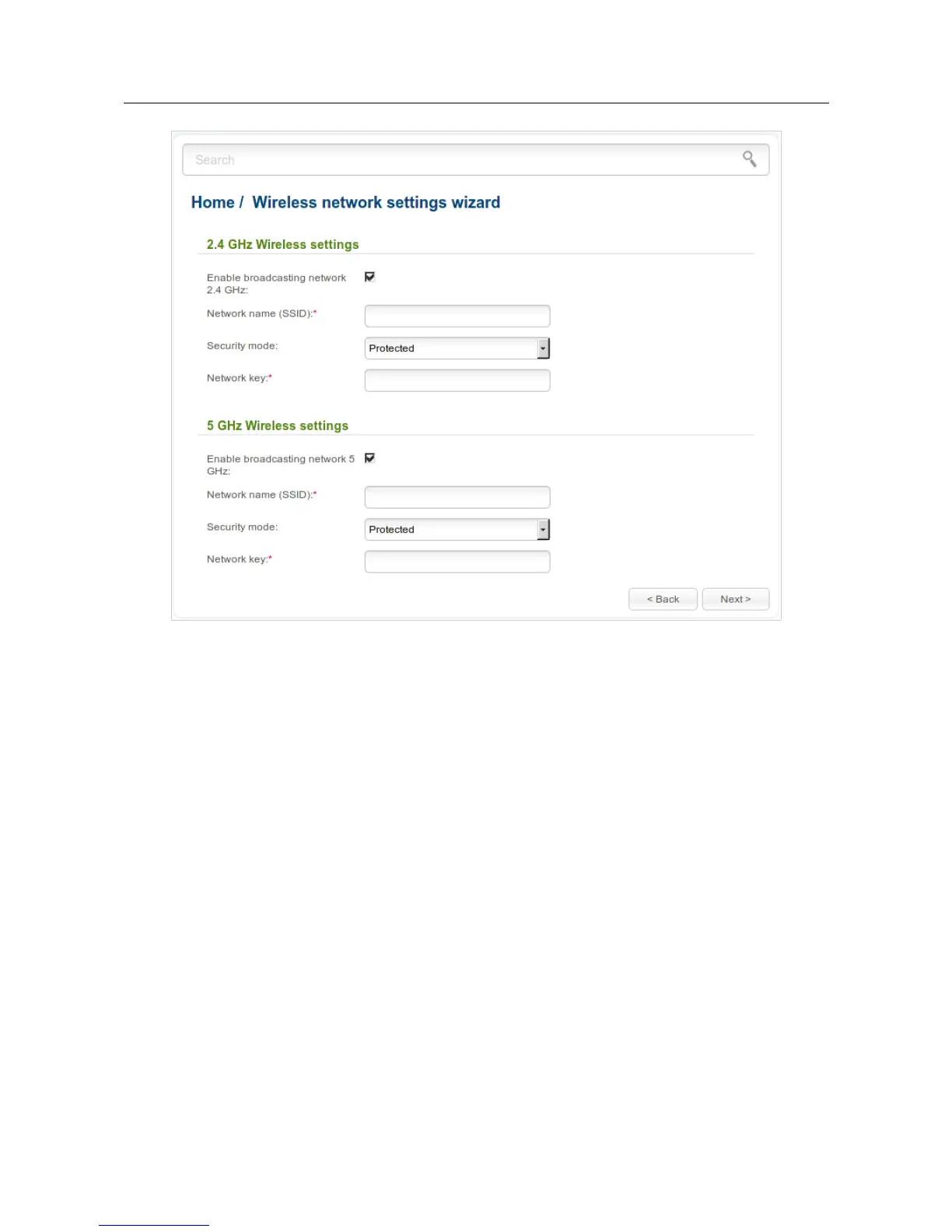

Figure 59. The page for changing the settings of the wireless local area network.
If you want to use the router's wireless network in the 2.4GHz or 5GHz band to connect devices,
leave the corresponding checkbox (Enable broadcasting network 2,4GHz or Enable
broadcasting network 5GHz) selected. Then, if needed, specify another name in the Network
name (SSID) field of the relevant section. Use digits and Latin characters.
It is strongly recommended to configure the secure wireless network of DIR-825/AC. To do this,
select the Protected value from the Network Authentication drop-down list and enter a key (a
password that will be used to access your wireless network) in the Network key field. Use digits
and Latin characters. After applying this setting, the WPA-PSK/WPA2-PSK mixed
authentication type is specified for the router's WLAN. Click the Next button.
On the next page, the parameters of the network to which you want to connect, the entered
password, and the settings of the wireless network of the router are displayed. Make sure that the
specified settings are correct and then click the Next button or the Back button to specify other
settings. Then click the Apply button. After that, the wireless channel of DIR-825/AC will switch
to the channel of the wireless access point to which you have connected.
After configuring the device as a client, you need to create a WAN connection with relevant
parameters for the WiFiClient interface.
After clicking the Apply button, the Home / Information page opens.
