Section 3 - Conguration

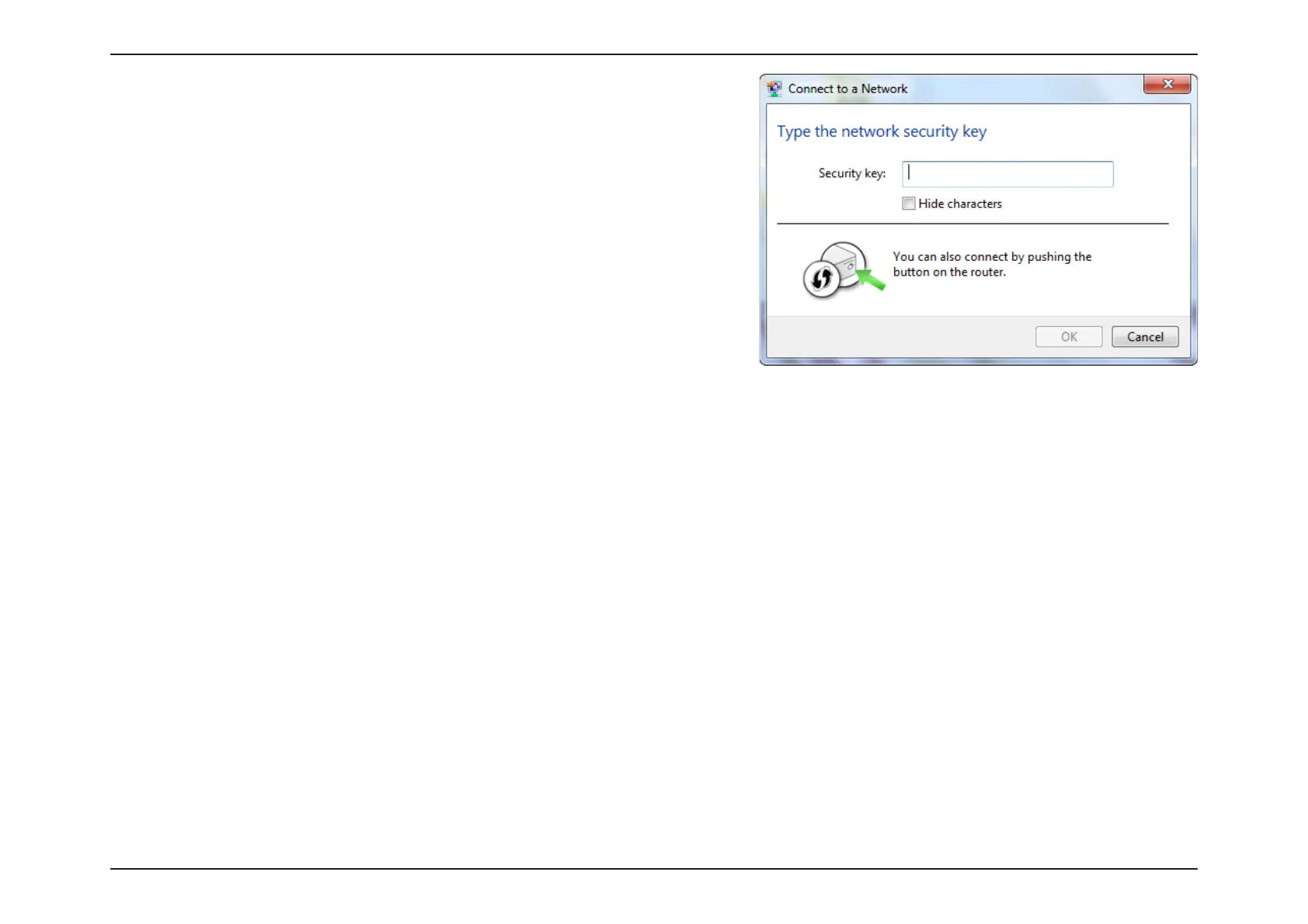

5. Enter the same security key or passphrase that is on your router and click
Connect. You can also connect by pushing the WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If the connection
GBJMTQMFBTFWFSJGZUIBUUIFTFDVSJUZTFUUJOHTBSFDPSSFDU5IFLFZPSQBTTQISBTF
must be exactly the same as on the wireless router.

D-Link DWA-182 Specifications

Power

current consumption (Tx)	495 mA
current consumption (Rx)	220 mA
operating voltage	5.0 VDC +/- 10%

Operating Environment

operating temperature	32°F to 104°F (0°C to 40°C)
operating humidity	10% to 90% maximum (non-condensing)

Weight and Dimensions

dimensions	3.8 x 1.1 x 0.5 inches (97.3 x 29.1 x 13.5 mm)
weight	21.94 grams
