D-Link Exo AX DIR-X5460 User Manual

133D-Link DIR-X5460 User Manual
Section 6 - Connect a Wireless Client to your Router
Windows® 8

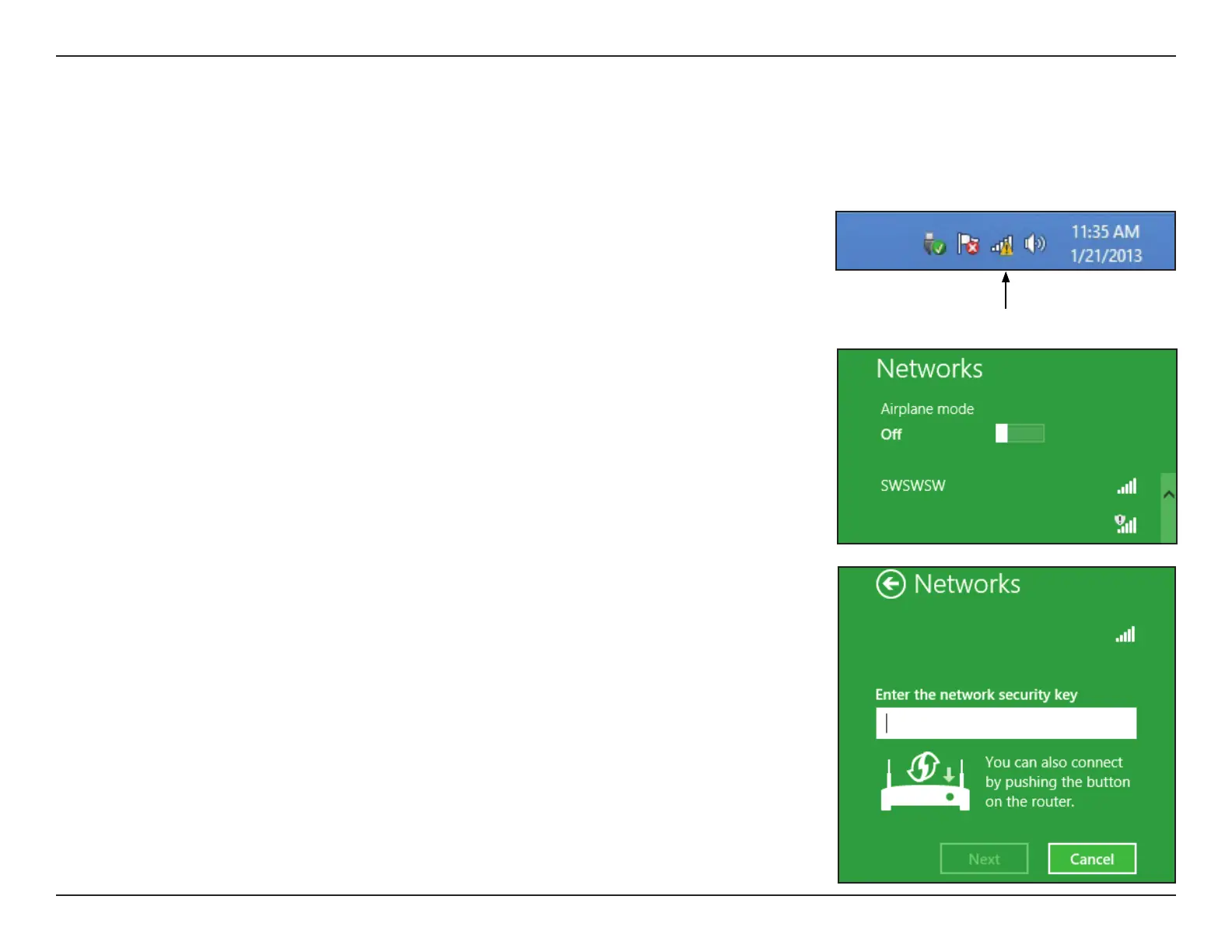

Clicking on this icon will display a list of wireless networks which are within
connecting proximity of your computer. Select the extender’s network by clicking
on the network name.
To join an existing network, locate the wireless network icon in the taskbar, next
to the time display.
Wireless Icon
dlink
You will then be prompted to enter the network security key (Wi-Fi password) for
the wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you
can also press the WPS button on your router at this point to enable the WPS
function.
dlink

D-Link Exo AX DIR-X5460 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Frequency range	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	2
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit AES, WPS
Flash memory	128 MB
Certification	FCC, IC, NCC, CE, RCM
Internal memory	512 MB
Minimum system requirements	Windows 10/8.1/8/7/Vista or MAC OS X 10.6 or higher Supports Internet Explorer 10, Firefox 28.0, Chrome 28.0, Safari 6.0, and up Network Interface Card Cable/DSL modem or other Internet service provider equipment with Ethernet port
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Product color	Black
LED indicators	Network, Power, USB
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	338.8 mm
Width	241.35 mm
Height	211.32 mm
Weight	732 g
