D-Link Exo AX DIR-X5460 User Manual

76D-Link DIR-X5460 User Manual
Section 3 - Conguration

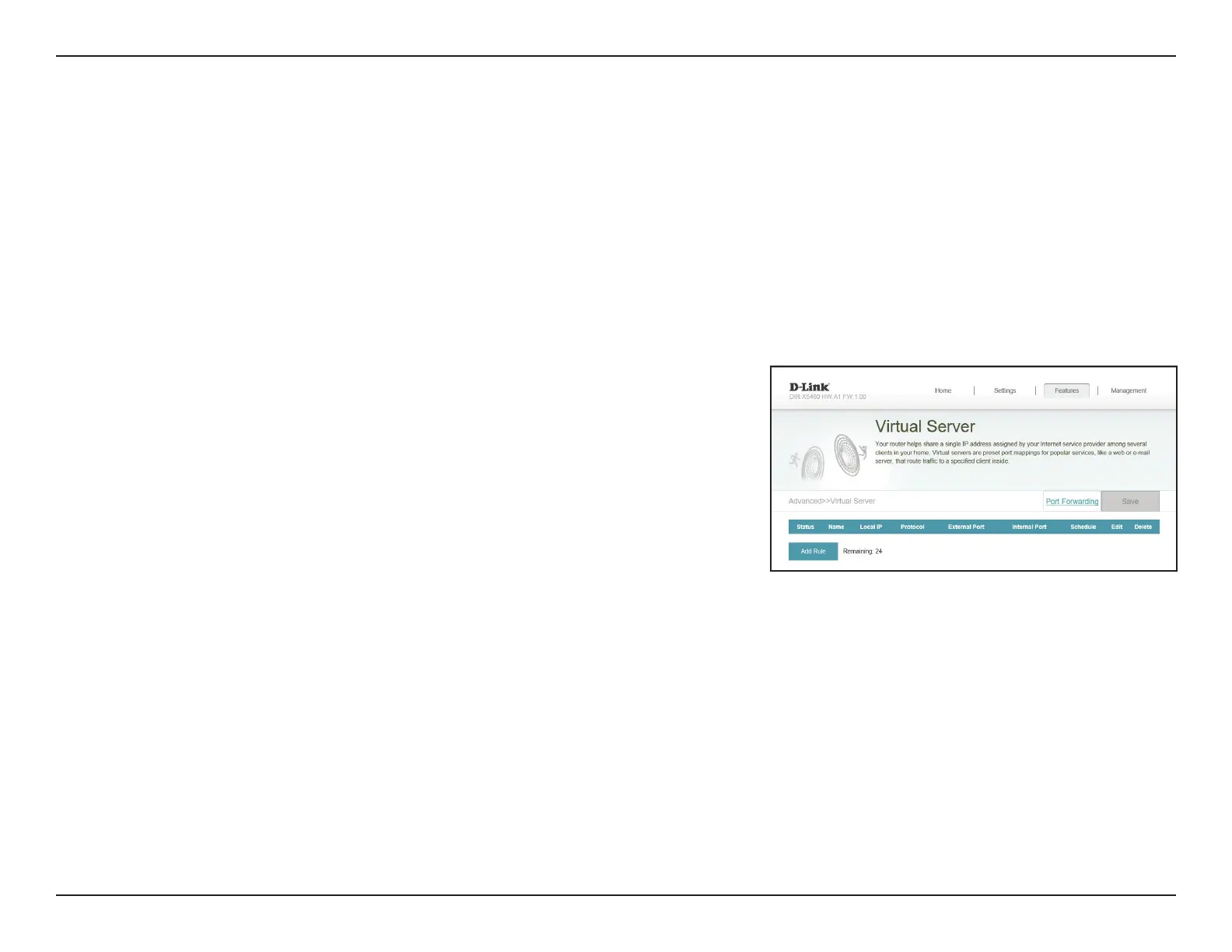

Port Forwarding - Virtual Server
In the Features menu on the bar at the top of the page, click Port Forwarding then click the Virtual Server link to congure
its settings and specify a single public port on your router for redirection to an internal LAN IP address and Private LAN port.
This might be necessary for certain applications to connect through the router.
To congure the Port Forwarding settings, click the Port Forwarding link. Refer to Port Forwarding on page 74
Click Save at any time to save the changes you have made on this page.
If you wish to remove a rule, click on the trash can icon in the Delete column. If you wish to
edit a rule, click on the pencil icon in the Edit column. If you wish to create a new rule, click
the Add Rule button.

D-Link Exo AX DIR-X5460 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Frequency range	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	2
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit AES, WPS
Flash memory	128 MB
Certification	FCC, IC, NCC, CE, RCM
Internal memory	512 MB
Minimum system requirements	Windows 10/8.1/8/7/Vista or MAC OS X 10.6 or higher Supports Internet Explorer 10, Firefox 28.0, Chrome 28.0, Safari 6.0, and up Network Interface Card Cable/DSL modem or other Internet service provider equipment with Ethernet port
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Product color	Black
LED indicators	Network, Power, USB
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	338.8 mm
Width	241.35 mm
Height	211.32 mm
Weight	732 g
