D-Link Exo AX DIR-X5460 User Manual

72D-Link DIR-X5460 User Manual
Section 3 - Conguration

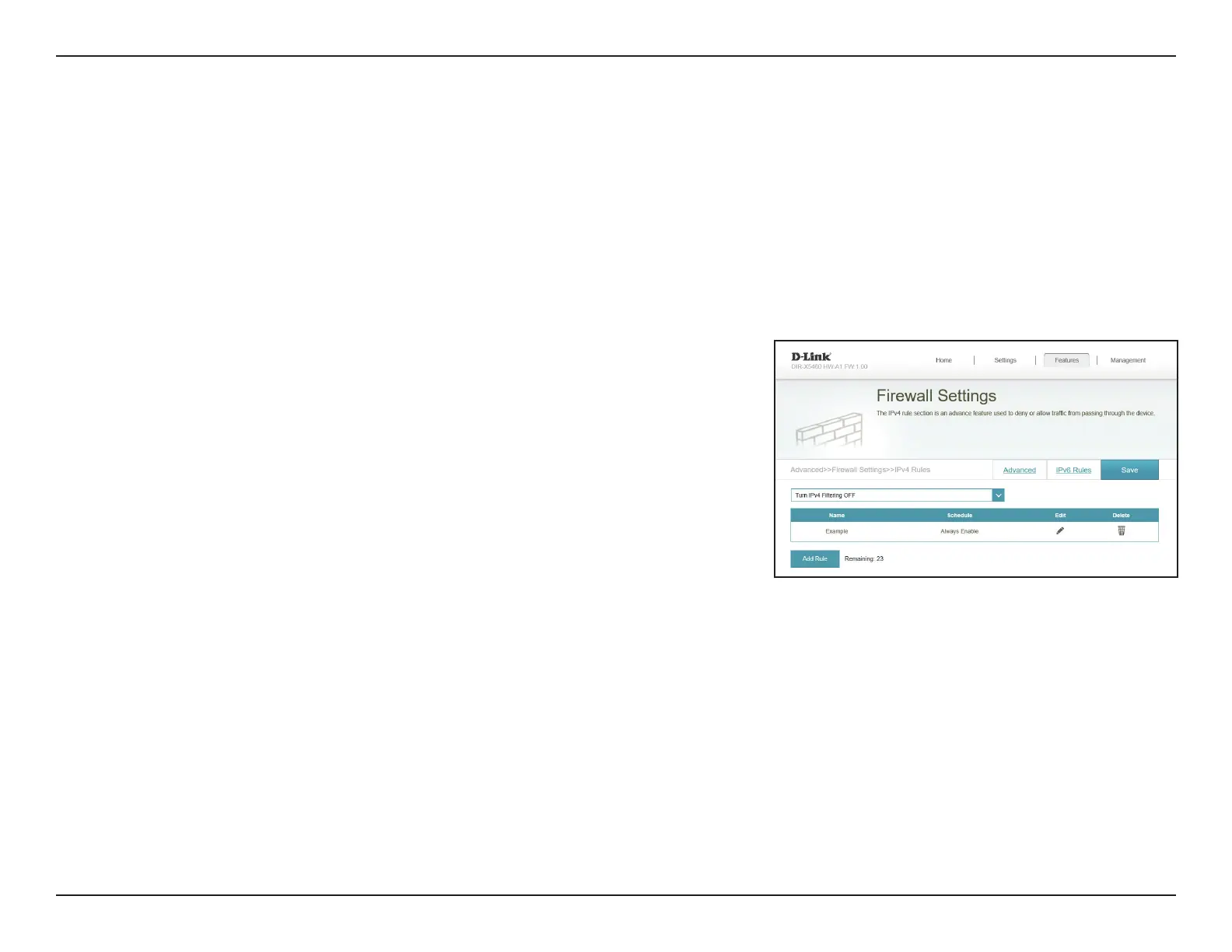

Firewall Settings - IPv4/IPv6 Rules
To begin, use the drop-down menu to select whether you want to ALLOW or DENY the
rules you create. You can also choose to turn ltering OFF.
If you wish to remove a rule, click on the trash can icon in the Delete column. If you wish to
edit a rule, click on the pencil icon in the Edit column. If you wish to create a new rule, click
the Add Rule button.
In the Features menu on the bar at the top of the page, click Firewall to congure the router’s rewall settings, then click
the IPv4 Rules link or the IPv6 Rules link to congure what kind of trac is allowed to pass through the network.
To congure the Firewall Advanced settings, click the Advanced link. Refer to Firewall Settings - Advanced on page 70
Click Save at any time to save the changes you have made on this page.

D-Link Exo AX DIR-X5460 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Frequency range	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	2
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit AES, WPS
Flash memory	128 MB
Certification	FCC, IC, NCC, CE, RCM
Internal memory	512 MB
Minimum system requirements	Windows 10/8.1/8/7/Vista or MAC OS X 10.6 or higher Supports Internet Explorer 10, Firefox 28.0, Chrome 28.0, Safari 6.0, and up Network Interface Card Cable/DSL modem or other Internet service provider equipment with Ethernet port
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Product color	Black
LED indicators	Network, Power, USB
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	338.8 mm
Width	241.35 mm
Height	211.32 mm
Weight	732 g
