Appendix H - Wall Mounting Information

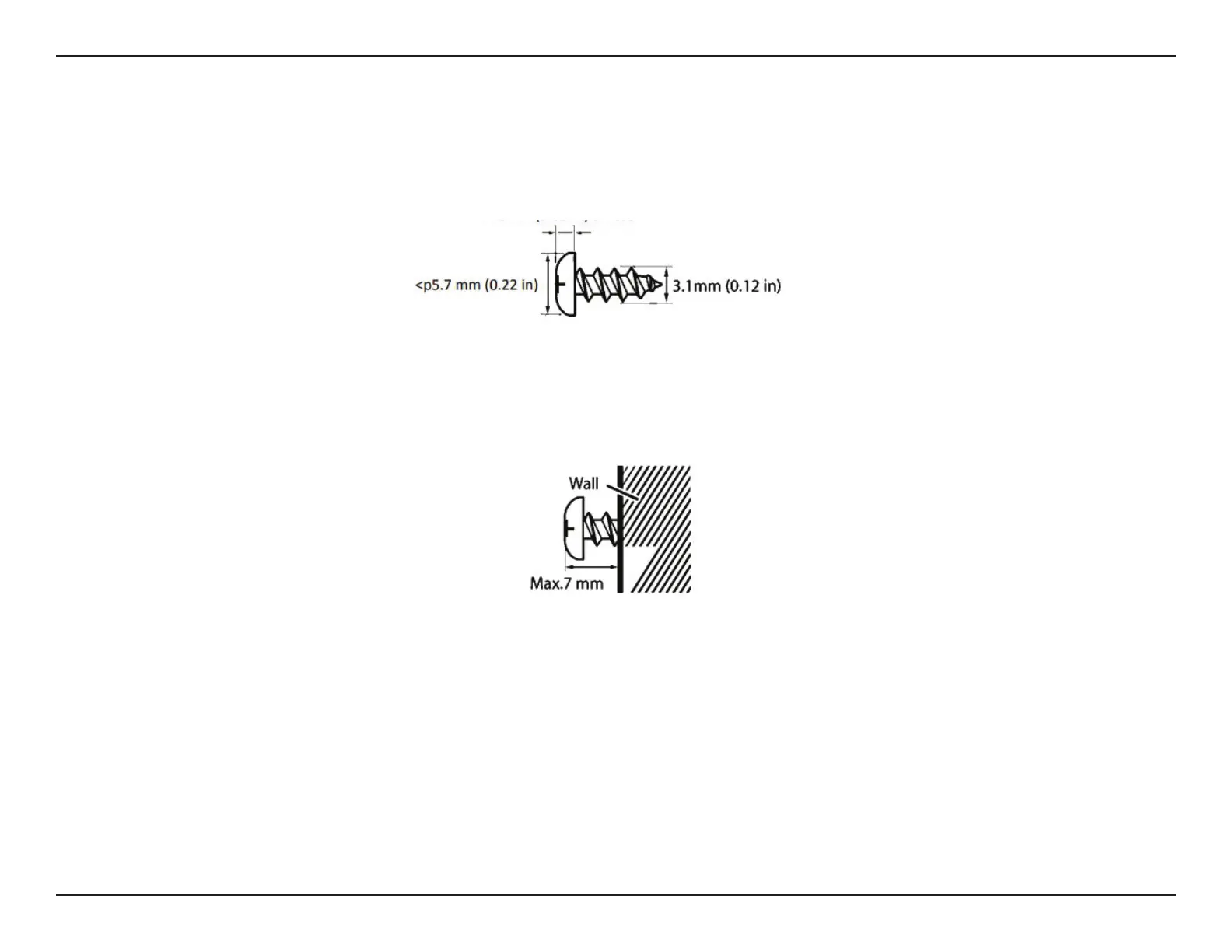

To mount the unit directly onto a wall, use 2 screws (not included) with the dimensions shown below. Install the screws 100 mm (3.94 in) apart
and slide the mounting holes into the base of the router over them.
The screw head should project out from the wall at 7 mm (0.28 in) as shown below.
Wall Mounting

D-Link Exo AX DIR-X5460 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Frequency range	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	2
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit AES, WPS
Flash memory	128 MB
Certification	FCC, IC, NCC, CE, RCM
Internal memory	512 MB
Minimum system requirements	Windows 10/8.1/8/7/Vista or MAC OS X 10.6 or higher Supports Internet Explorer 10, Firefox 28.0, Chrome 28.0, Safari 6.0, and up Network Interface Card Cable/DSL modem or other Internet service provider equipment with Ethernet port
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Product color	Black
LED indicators	Network, Power, USB
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	338.8 mm
Width	241.35 mm
Height	211.32 mm
Weight	732 g
