• N.B. : Video input can be via scart cable S-Video lead or yellow phono jack.
The red and white plugs are for left and right audio to accompany
the yellow video lead or to be used with the S-Video lead to produce sound.
32
Watching a DVD Image
• Component Input is
set to 480i/576i and
480p/576p mode.
• Connect the cable
from the DVD Video
output (Y, Pb/Cb,
Pr/Cr) to the
Component Input at
the back of PDP, and
connect the cable
from DVD audio
output (Left, Right)
to the Audio Input at
the back of PDP.
Watching a
DVD Image

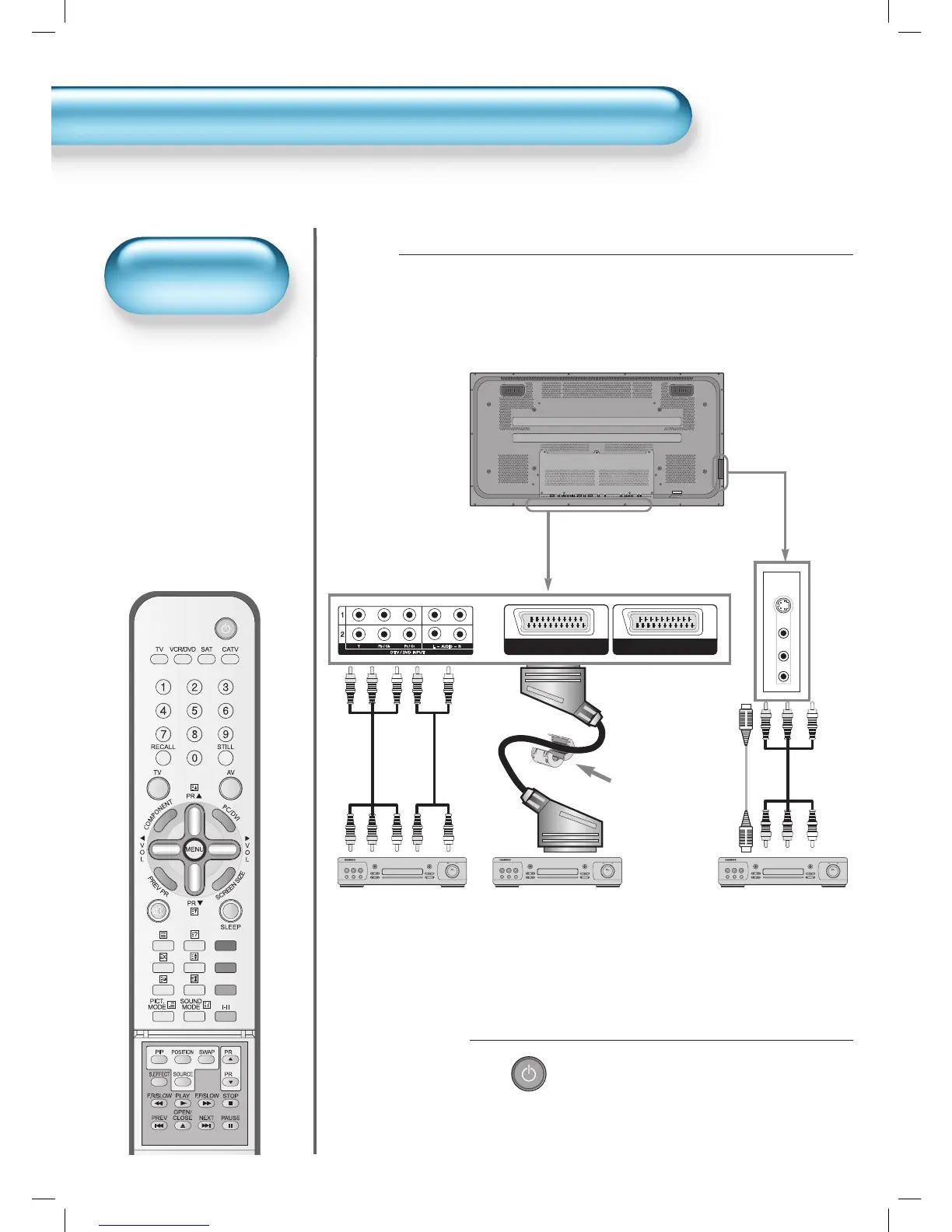

Connect a DVD Player to the PDP.
• Prepare the AV cable.
• Connect the DVD(Output) to the PDP(Component or Video Input) as shown
below.
• When connecting to an external AV source, be sure to match the colours.
• If using the scart cable for connection, put the ferrite core to the middle of
the cable for preventing EMI.
1
DVD
Video Audio
S-Video
Video/Audio
Ferrite Core
Press the Power Buttons
• Turn the PDP and the DVD ON.
2
Video/Audio
DVD DVD
To Next Page
