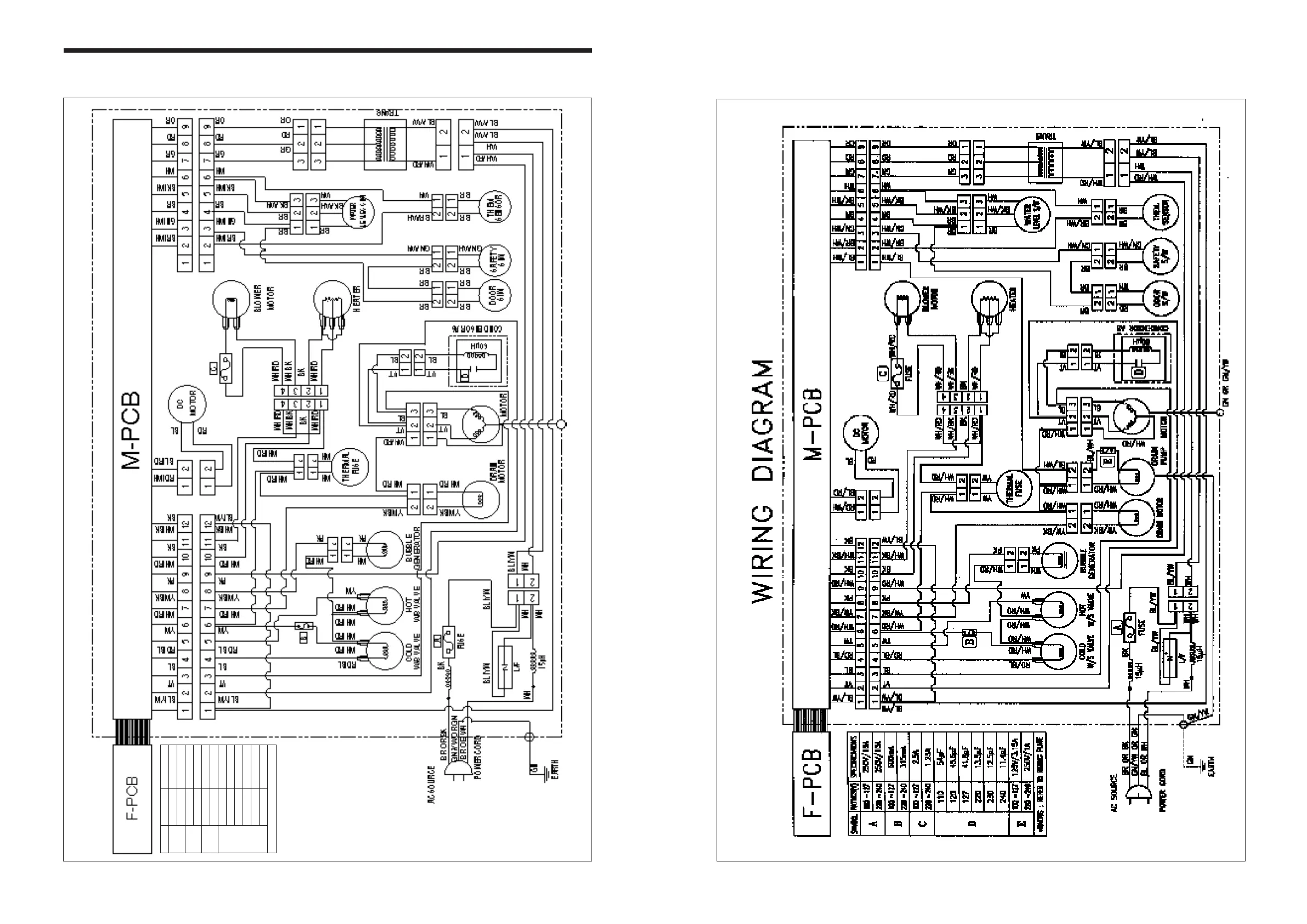

WIRING DIAGRAM (DFW-1095Px MODEL)
APPENDIX
WIRING DIAGRAM (DFW-1095xE MODEL)
SYMBOL RATINGS(V) SPECIFILATIONS
A
100~127 250V/15A
220~240 250V/10A
B
100~127 600MA
220~240 315MA
C
100~127 2.5A
220~240 1.25A
110 5.5µF
120 45.6µF
D 127 41.6µF
220 13.5µF
230 12.5µF
240 11.4µF
•RATING : REFER TO RATING PLATE
