SOFTENER DISPENSER
This is the device to dispense the softener automatically by centrifugal force.
This is installed inside the auto-balancer.

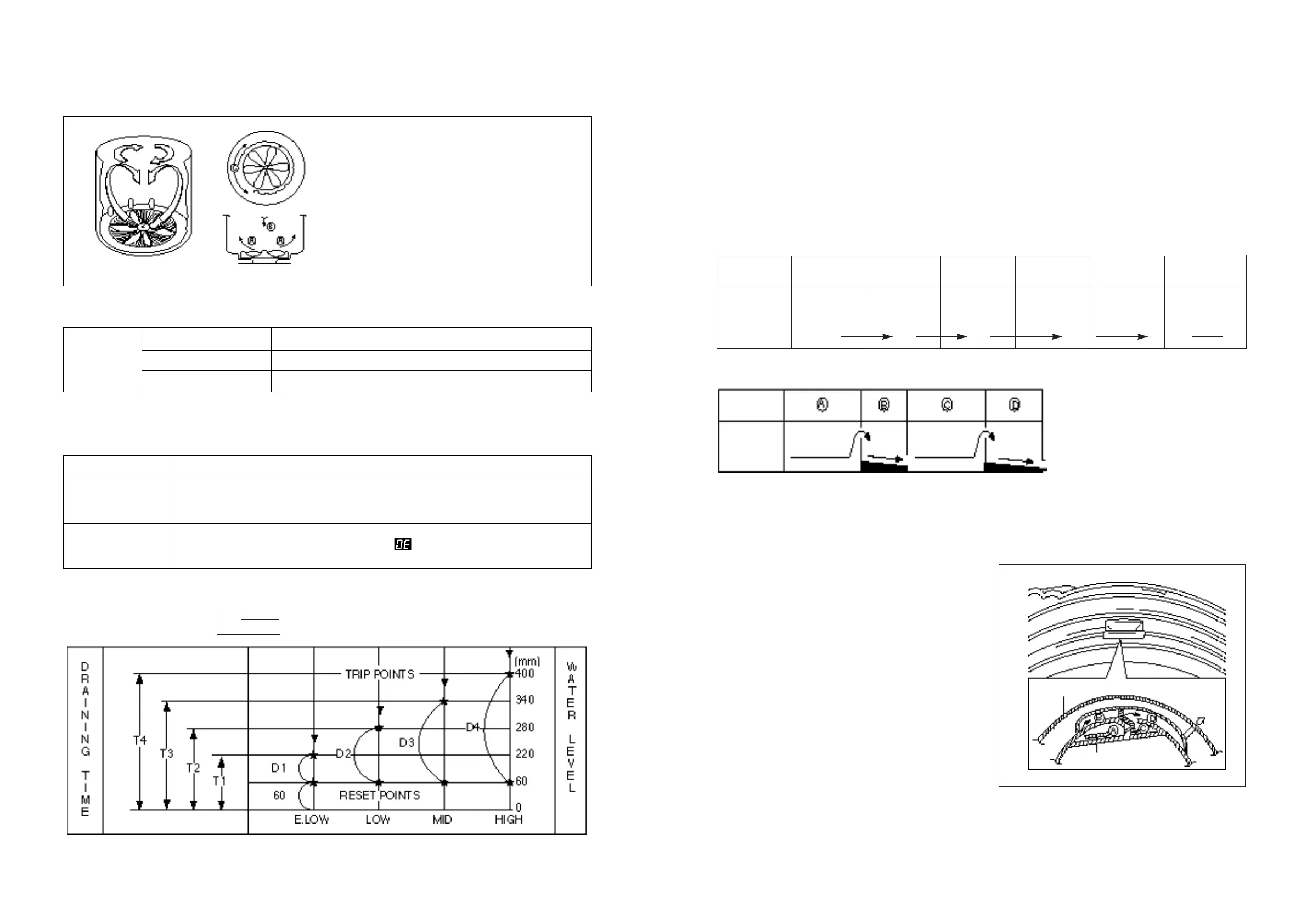

FUNCTIONAL PRINCIPLE
1) Softener stays in room (A) when poured into softener inlet.
2) Softener moves from (A) to (B) by centrifugal force during intermittent spin process.
3) Softener flows from (B) to (C) during rinse process next to intermittent spin.
4) Softener moves from (C) to (D) by centrigfugal force during second intermittent spin.
After spin process is finished, the softener is added into the tub through softener outlet.
FLOW OF THE SOFTENER
FLOW OF THE SOFTENER INSIDE OF THE BALANCER
NOTE : Softener moves into the next room when r.p.m of the tub is more than 100 r.p.m.
HOW TO CHECK MOVEMENT
Pour a reasonable amount of “MILK” into softener
dispenser and operate the washer with no load. In
final rinse cycle, make sure that the milk is added into
the tub through softener outler.
PULSATOR SYSTEM
When the new shaped pulsator is retated C.W or C.C.W at a high speed, it makes the ‘heart-shaped’
waater currents as shown below.
AUTOMATIC DRAINING TIME ADJUSTMENT
This system adjusts the draining time automatically according to the draining condition.
FUNCTIONAL PRINCIPLE
1) The micom can remember the time from the begining of drain to reset point when the pressure switch
reaches to “OFF” point
2) In case of continuous draining, residual drain time is determined by micom.
Draining time as a whole = D + 60
Residual drain time.
The time remembered by micom.
T1=D1+60 (Sec.) T2=D2+60(Sec.) T=D3+60(Sec.) T4=D4+60(Sec.)
WATER CURRENTS
A Water is pushed up near the tub
wall by rotation of the pulsator.
B Water is pulled down in the
middle of the tub by rotation of
the pulsator.
C Water currents is generated by
rotation of the pulsator.
Draining
Good draining The washer begins spin process after drainage.
condition
Bad draining Draininig time is prolonged.
No draining Program is stopped and gives the alarm.
Drain Time Movement of the Program
Less than
Continue draining
4 minutes
More than
Program stops and gives the alarm with blinked on display lamp.
4 minutes
Wash Intermittent Hold Intermittent Rinse Spin
Spin Spin
Normal Centrifugal Flow in Centrifugal Flow in
force force force
Course (A) (B) (C) (D)
Room inside
the balancer
Centrifugal
force Flowing
by weight
Balancer
Softener
outlet
Softener inlet
