5. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
12
GEAR MECHANISM ASS’Y REPLACEMENT
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCONNECT
THE POWER CORD FROM THE ELECTRIC OUTLET.
Warning

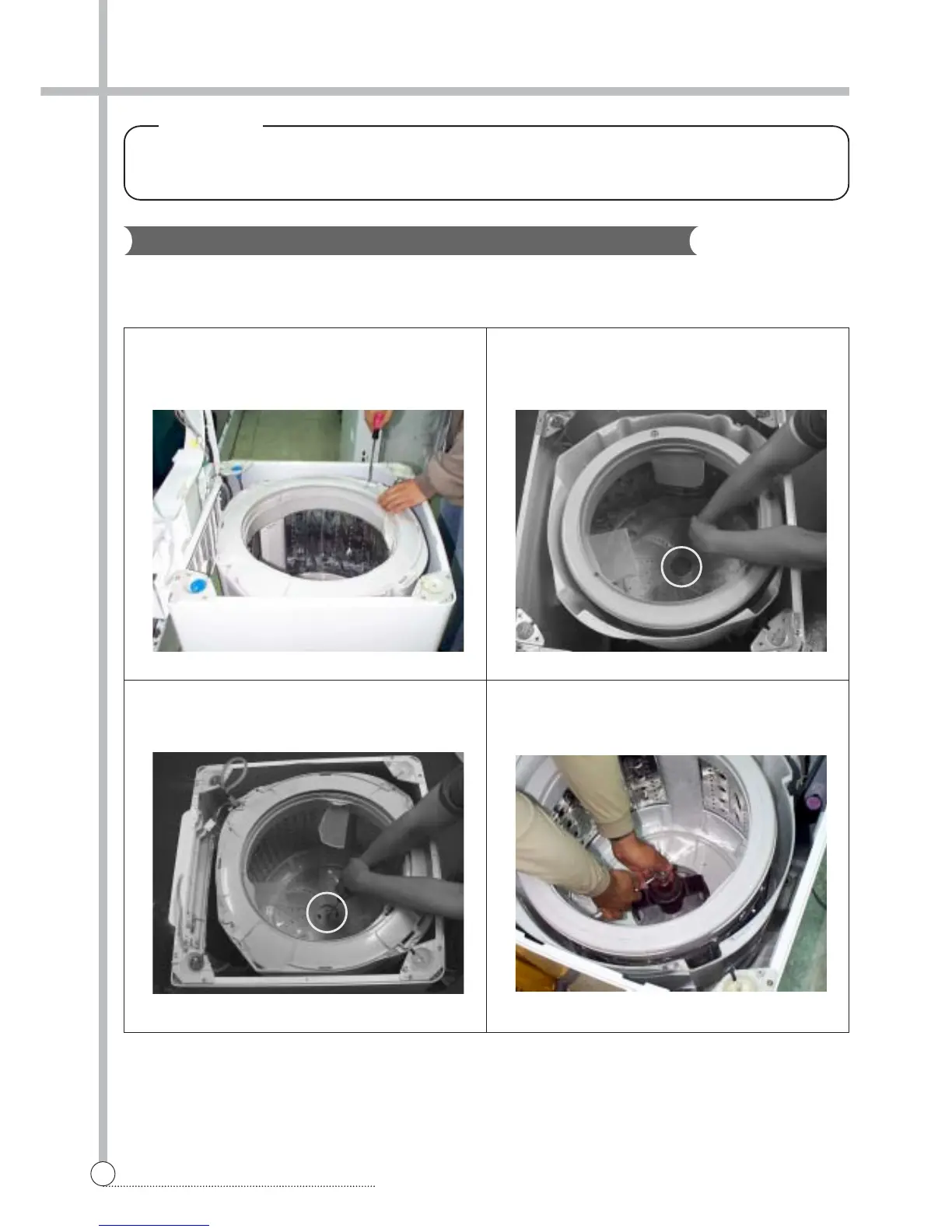

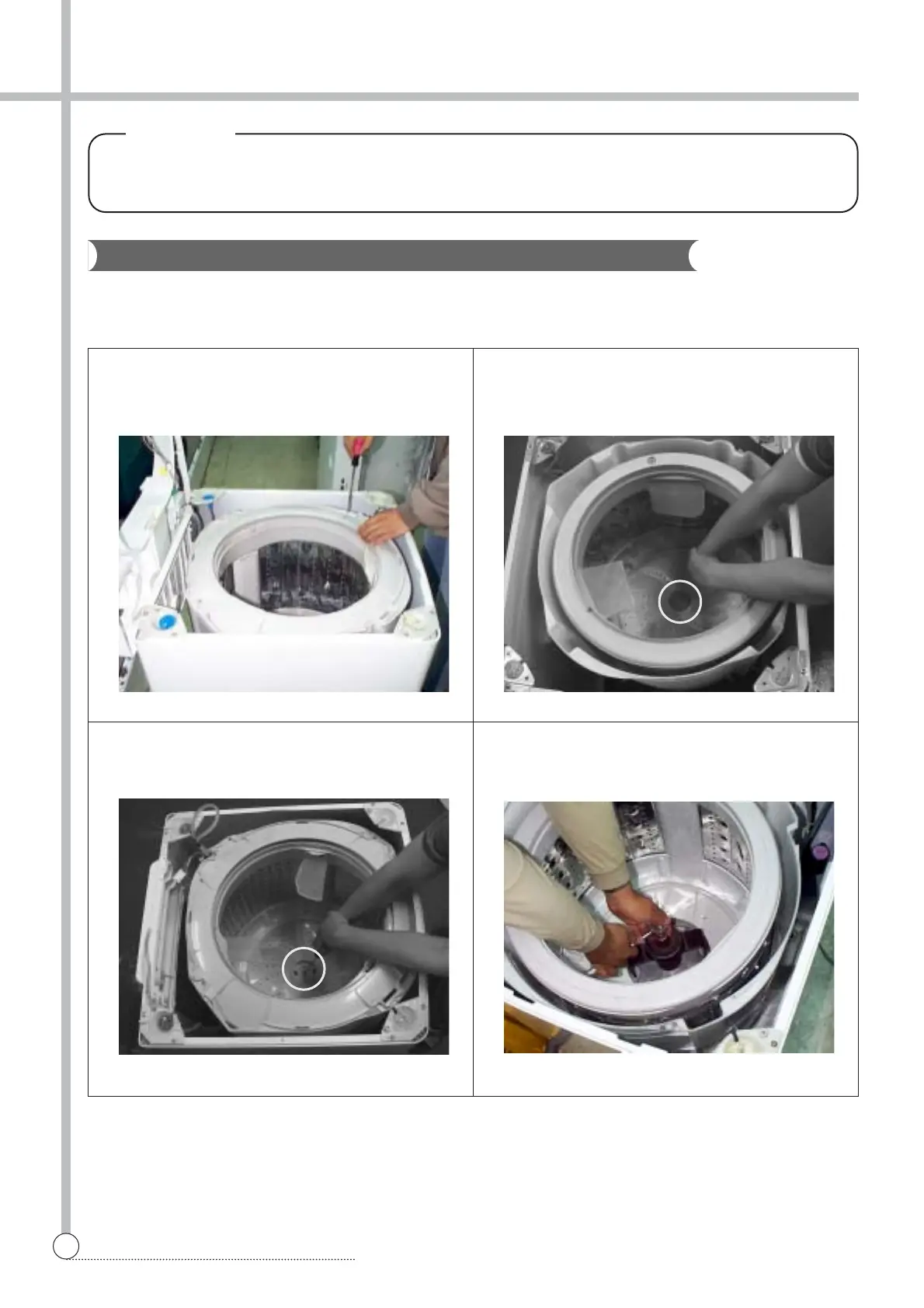

1 Raise the top plate on the outer cabinet.
2 Loosen four screws mounting outer tub cover and
remove outer tub cover from the tub ass’y.
4 Loosen the pulsator mounting screw and remove the
pulsator.
3 Remove the cap pulsator from the pulsator ass'y by
using screw driver.
5 Remove the special nut by using “T” type box
wrentch.
6 Remove the special washer.
GEAR MECHANISM ASSY REPLACEMENT
