THE REPAIR METHOD
21

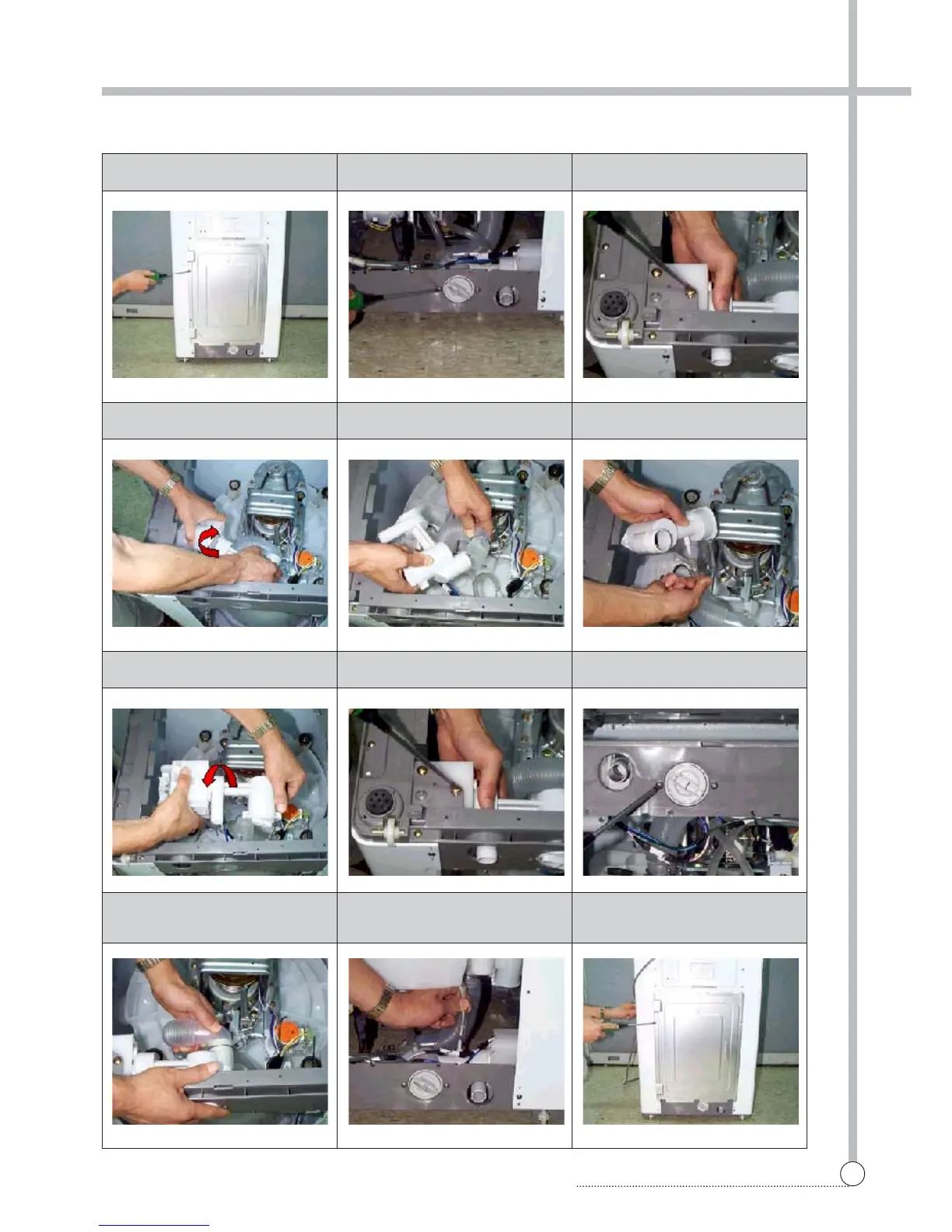

1 Separate the back cover from
washing machine.
2 Remove two screws. 3 Remove three screws.
REPLACE THE CASE FILTER ASS’Y
4 Turn the case filter ass’y and
separate it from the drain motor.
5 Separate the drain hose i from
the case filter ass’y.
6 Separate the cavitation hose
from the case filter ass’y.
7 Assemble the case filter ass’y
that purchased.
8 Tie up three screws. 9 Tie up two screws.
0 Assemble the hose drain I to the
case filter with bond & clamp.
q Assemble the cavitation hose to
the case filter with bond &
clamp.
w Assemble the back cover to the
washing machine.
