18

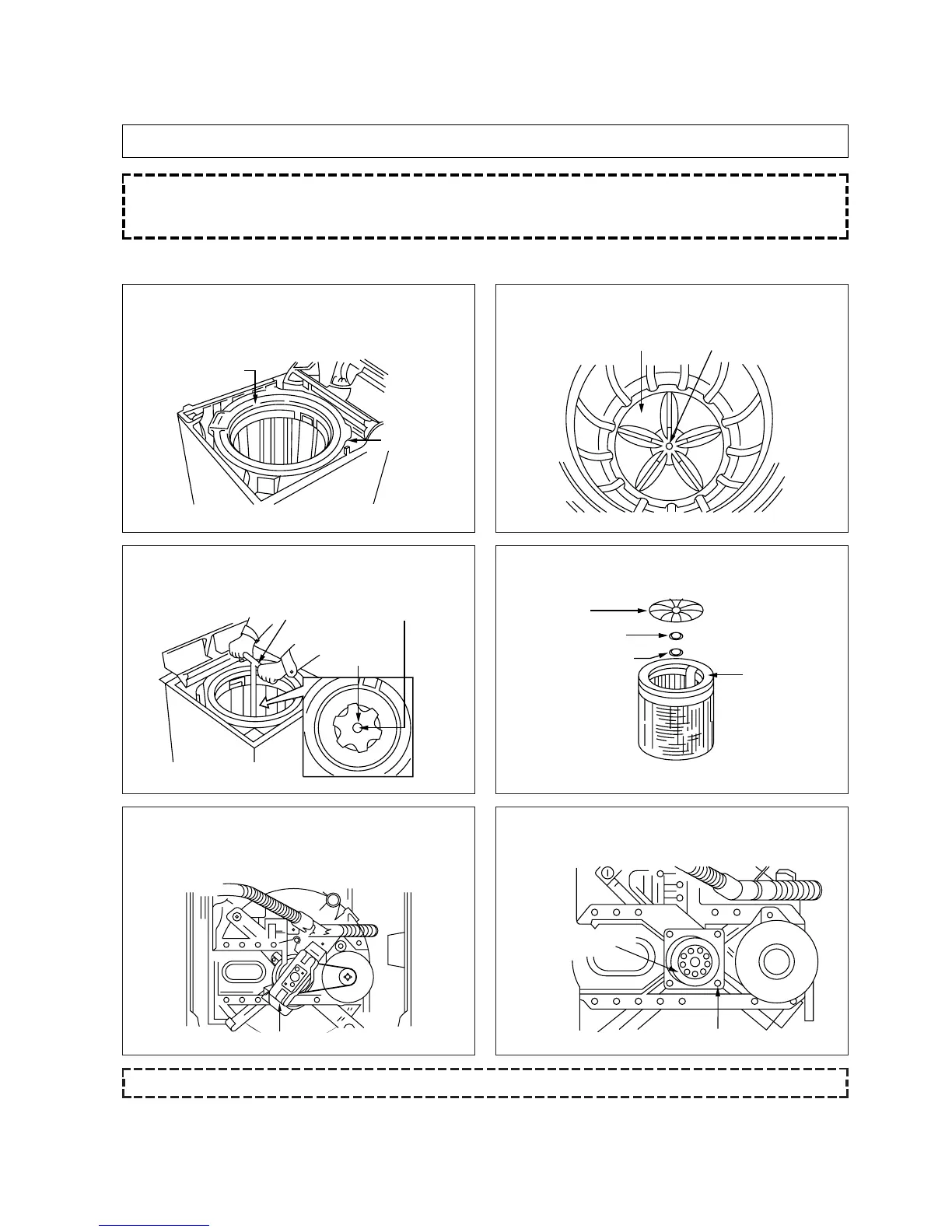

7. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
GEAR MECHANISM ASS'Y REPLACEMENT
WARNING
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCONNECT THE
POWER CORD FROM THE ELECTRIC OUTLET.
• Raise the top plate on the outer cabinet.
• Loosen four screws mounting outer tub cover and
remove outer tub cover from the tub ass'y
Mounting
screw
Outer tub cover
• Remove the special Nut by using 'T' type box wrench.
• Remove the special washer.
"T" type box
wrench
Special Nut
Special
Washer
• Lay the front of the washer on the floor.
• Remove four bolts mounting the gear protect by
using a box wrench and remove gear protect.
• Remove the V-belt.
• Loosen the pulsator mounting screw and remove
pulsator.
Pulsator
Special Nut
Special Washer
Tub ass'y
• Remove four bolts mounting the gear mechanism
ass'y by using a box wrench.
• Pull out the gear machanism ass'y.
Gear Mechanism
Ass'y
Mounting bolt
NOTE: To assemble the gear mechanism ass'y, reverse the disassembly procedure.
To Next Page
