5. DISASSEMBLING AND TREATMENT
5-1. CLEANER ASSEMB
LY
1.

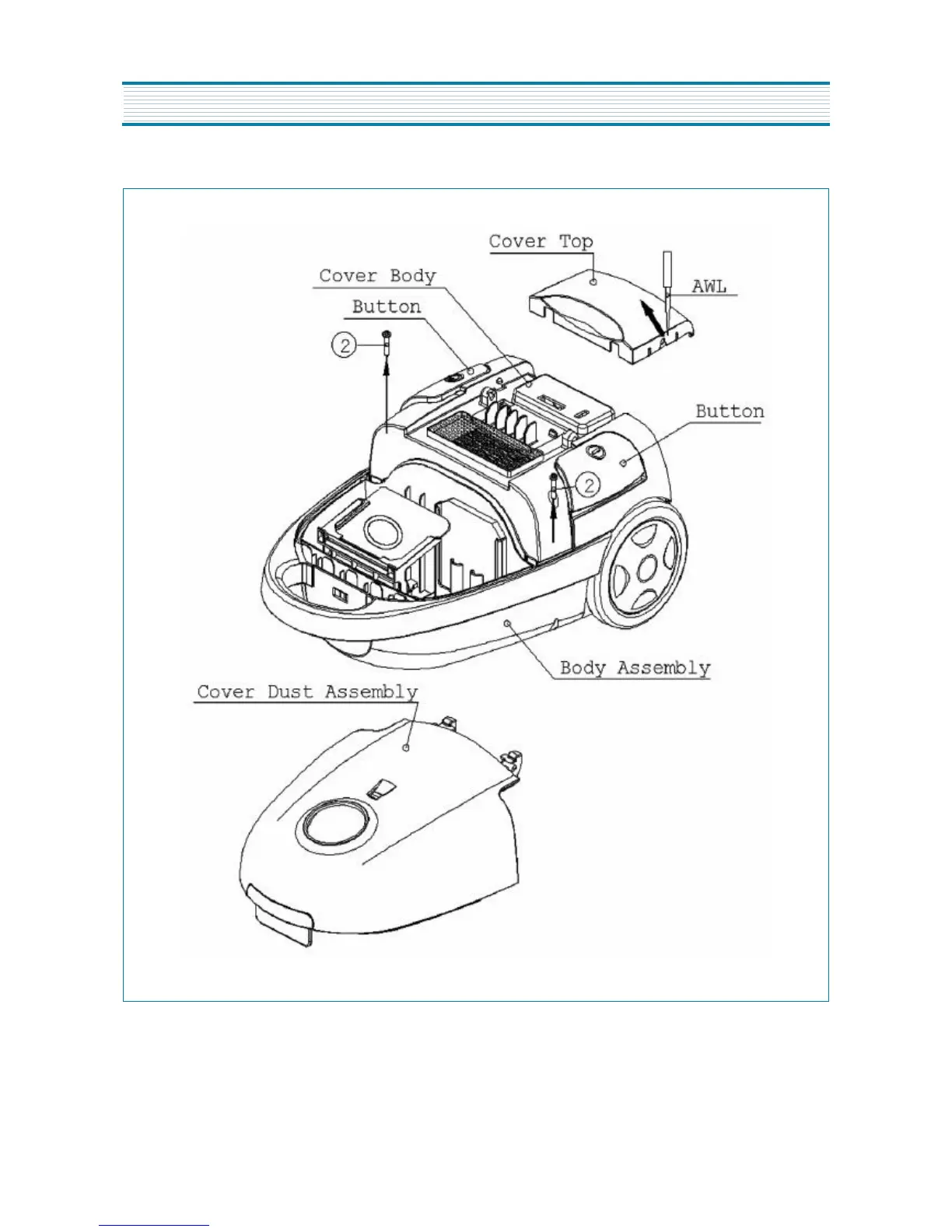

TAKE THE COVER TOP CUT OF THE COVER BODY BY USING AN AWL.
2. SE
PARATE THE COVER DUST ASSEMB
LY FROM THE COVER BOD
Y
.
3. UNSCREW THE 2 SCREWS(2) THEN LI
FT THE COVER BODY UP FROM
THE BODY ASSEMB
LY
.
4. SE
PARATE THE TWO BUTTONS FROM THE COVER BOD
Y
.
9
11
Table of Contents
Default Chapter
2
Table of Contents
2
1 Specifications
3
2 External View
3
Assembly
3
Model Rc-320F, Rc-320B, Rc-320S
4
3 Diagram
5
Wiring Diagram
5
Circuit Diagram
7
4 Trouble Shooting Guide
9
5 Disassembling and Treatment
10
Cleaner Assembly
10
Motor Assembly
11
Cord Reel Assembly
12
Cover Dust Assembly
13
Cover Body Assembly
14
6 Exploded View and Parts List
15
Cleaner Assembly
15
Body Assembly
20
Cover Assembly
22
Motor Assembly
24
Cord Reel Assembly
27
Hose Assembly
30
Brush Assembly
31
Pipe Assembly
33
