23

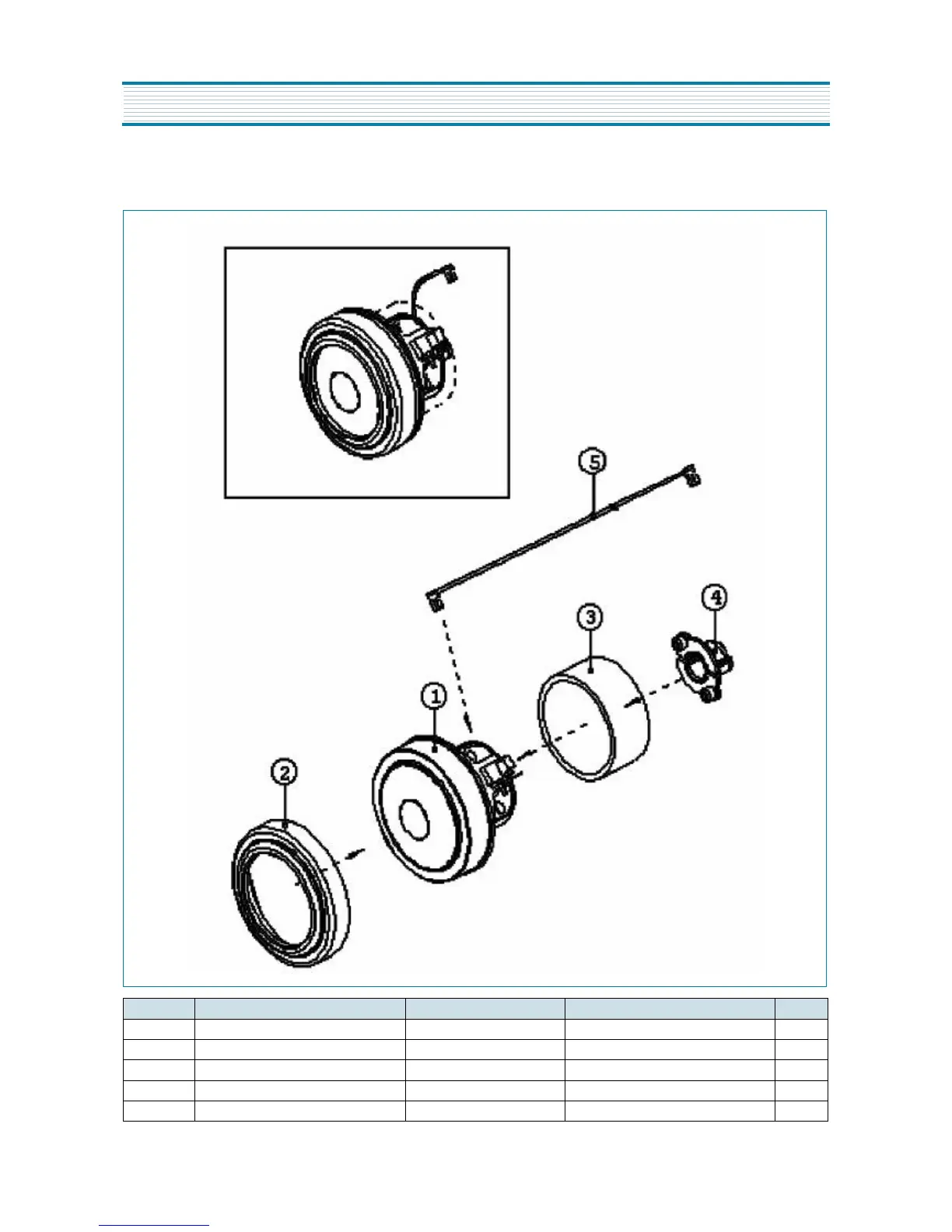

6-4. MOTOR ASSEMB
LY
1) MODEL RC-320F (3620013200)
NO
PART NAME
PART CODE
SPECS.
Q'YT
1
MOTOR UNIVERSAL
39625
11400
230V
1100W DMI(E)
1
2
PACKING MOTOR
3624006900
NR
1
3
ABSORBER SOUND
4569C10071
PU FOAM (T=10)
1
4
MOUNT MOTOR
3627900900
TPE
1
5
TERMINAL AS
36227
11900
ASSY
1
EXPLODED VIEW AND PARTS LIST
23
25
Table of Contents
Default Chapter
2
Table of Contents
2
1 Specifications
3
2 External View
3
Assembly
3
Model Rc-320F, Rc-320B, Rc-320S
4
3 Diagram
5
Wiring Diagram
5
Circuit Diagram
7
4 Trouble Shooting Guide
9
5 Disassembling and Treatment
10
Cleaner Assembly
10
Motor Assembly
11
Cord Reel Assembly
12
Cover Dust Assembly
13
Cover Body Assembly
14
6 Exploded View and Parts List
15
Cleaner Assembly
15
Body Assembly
20
Cover Assembly
22
Motor Assembly
24
Cord Reel Assembly
27
Hose Assembly
30
Brush Assembly
31
Pipe Assembly
33
