14

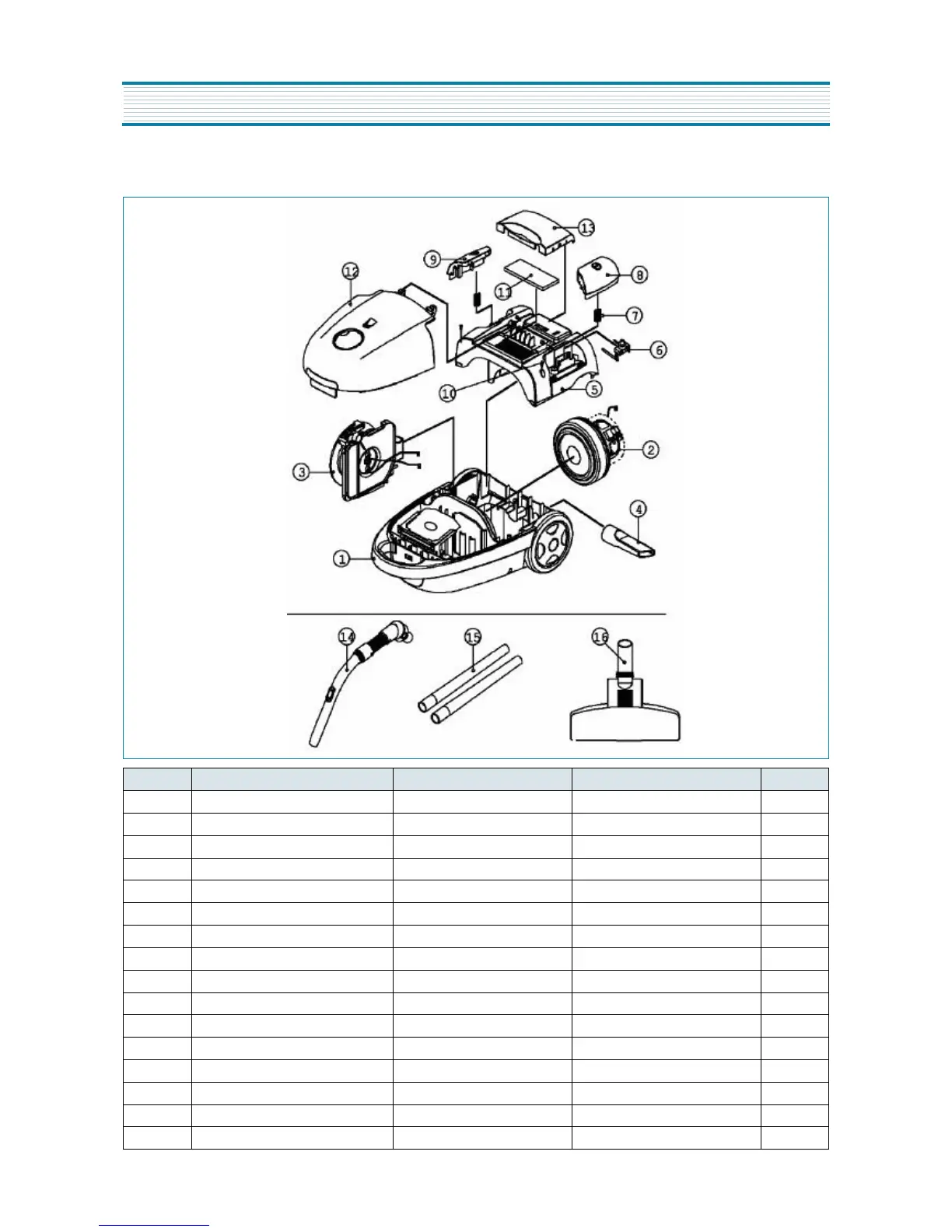

6. EXPLODED VIEW AND PARTS LIST
6-1. CLEANER ASSEMBLY
1) MODEL RC-320F(3620012900)
NO PART NAME PART CODE SPECS. Q'YT
1 BODY AS 3620409000 ASSY 1
2 ASSY MOTOR 3620013200 ASSY(RC-320F) 1
3 CORD REEL AS 3629507000 ASSY 1
4 NOZZLE CREVICE 3628100600 PP 1
5 COVER BODY 3621424400 PP 1
6 SWTICH PUSH 3629002000 7A/250V, (SKT) 1
7 SPRING BUTTON 3625107400 HSW3 2
8 BUTTON SWITCH 3626605200 ABS 1
9 BUTTON CR 3626605300 ABS 1
10 SCREW TAPPTITE 7171402011 TT2 PAN 4X20 MFZN 2
11 FILTER EXHAUST 3621906900 POLYESTER 1
12 COVER DUST AS 3621425900 ASSY 1
13 COVER TOP 3621424600 PP 1
14 HOSE AS 3623206200 ASSY 1
15 PIPE EXTENSION 3624408500 PP 2
16 BRUSH AS 3629304920 ASSY(CLEAN 31) 1
To Next Page
