11

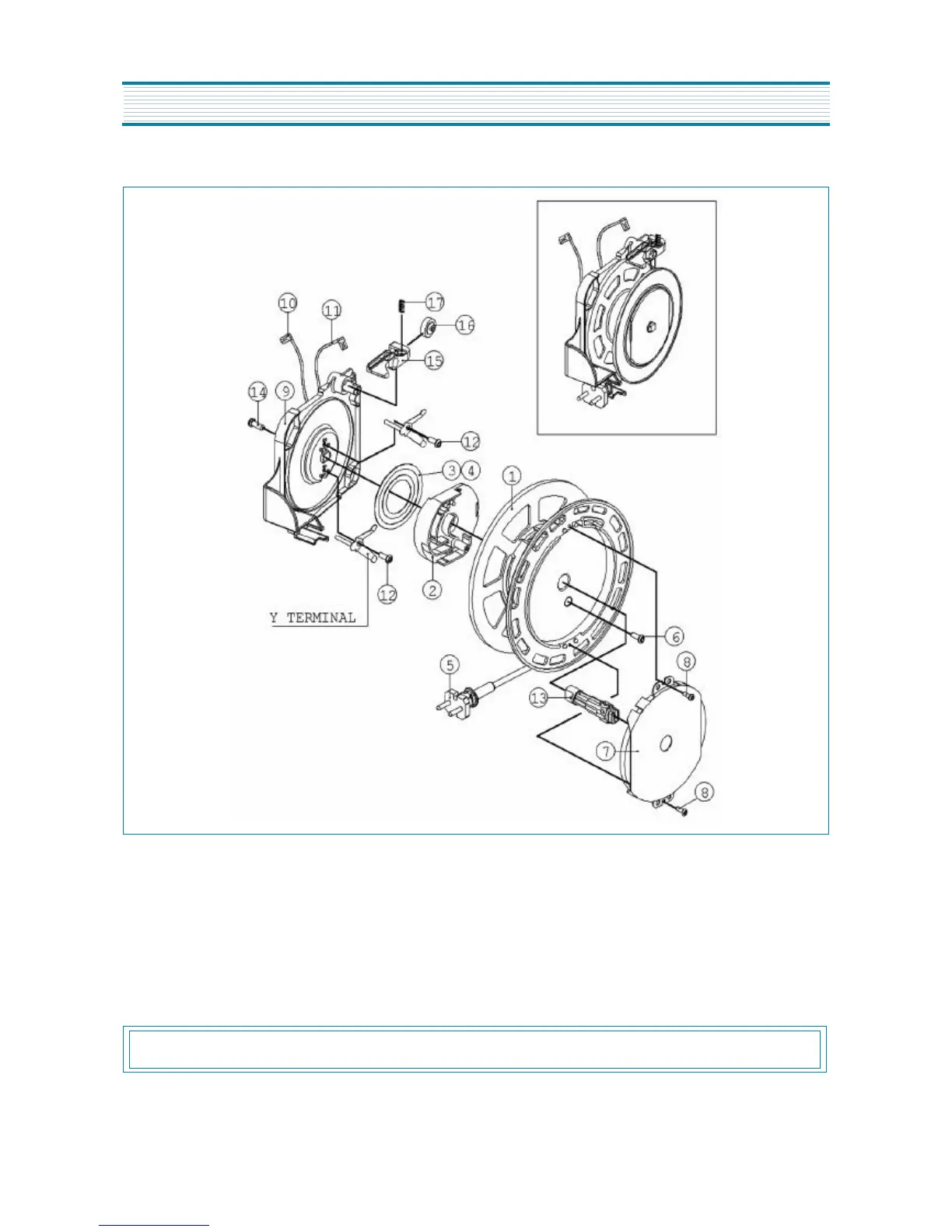

5-3 CORD REEL ASSEMBLY
1) TAKE THE CORD REEL OUT OF THE BODY.
2) UNSCREW THE SCREW(14) AND SEPARATE THE BOBBIN(1) FROM THE BRACKET(9) AND CHECK THE
CONTACTS BETWEEN THE Y TYPE TERMINALS AND THE RING TYPE TERMINALS(3, 4).
4) CHECK THE LEVER SPRING(17).
5) IF THE ROLLER BRAKE(16) IS WORN OUT AND SEPARATE THE LEVER(15) FROM
THE BRACKET(9), THEN REPLACE THE ROLLER BRAKE(16).
AT THIS TIME, THE BOBBIN(1) IS ROTATED COUNTERCLOCKWISE DUE TO THE PRESERVED WINDING.
6) IF THE REEL SPRING(7) IS BROKEN, UNSCREW THE 2 SCREWS(8) AND REPLACE IT.
7) UNSCREW THE SCREW (6) AND SEPARATE THE HOLDER TERMINAL(2) FROM THE BOBBIN(1).
DISASSEMBLING AND TREATMENT
CAUTION : WHEN DISASSEMBLING, THE REEL SPRING MAY SPRING OUT OF THE COVER.
To Next Page
