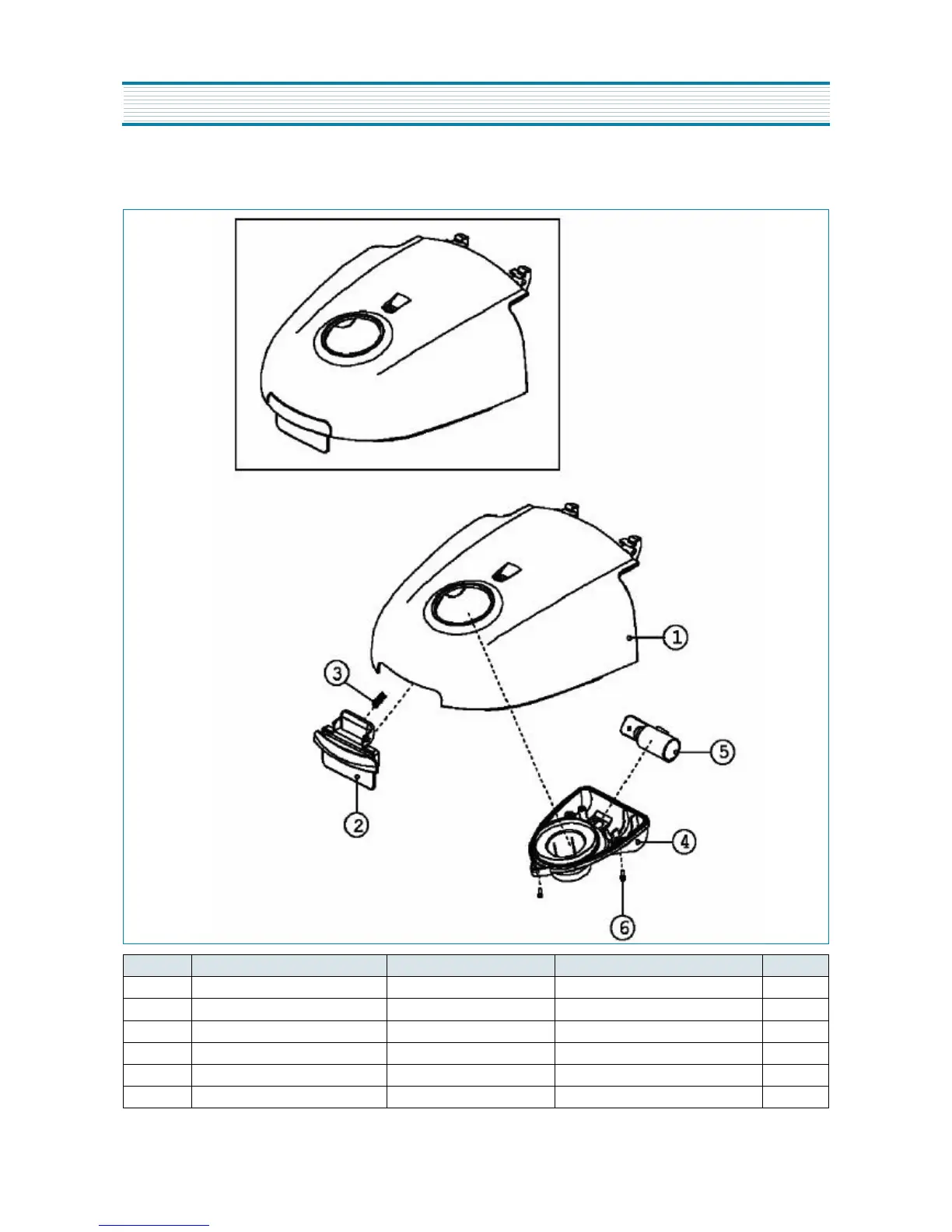

EXPLODED VIEW AND PARTS LIST
6-3. COVER ASSEMB
LY
1) COVER DUST ASSEMB
LY (3621425900)
NO
PART NAME
PART CODE
SPECS.
Q'YT
1
COVER DUST
3621424500
ABS
1
2
CLAMP COVER
3621202600
ABS
1
3
SPRING CLAMP
3625106400
HSW3
1
4
SOCKET
3629801200
PP
1
5
DUST METER AS
3629702000
ASSY
1
6
SCREW TAPPING
7121401011
T2S PAN 4X10 MFZN
3
21
23
Table of Contents
Default Chapter
2
Table of Contents
2
1 Specifications
3
2 External View
3
Assembly
3
Model Rc-320F, Rc-320B, Rc-320S
4
3 Diagram
5
Wiring Diagram
5
Circuit Diagram
7
4 Trouble Shooting Guide
9
5 Disassembling and Treatment
10
Cleaner Assembly
10
Motor Assembly
11
Cord Reel Assembly
12
Cover Dust Assembly
13
Cover Body Assembly
14
6 Exploded View and Parts List
15
Cleaner Assembly
15
Body Assembly
20
Cover Assembly
22
Motor Assembly
24
Cord Reel Assembly
27
Hose Assembly
30
Brush Assembly
31
Pipe Assembly
33
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Daewoo RC-320B and is the answer not in the manual?
Ask a question
Daewoo RC-320B Specifications
General
Brand
Daewoo
Model
RC-320B
Category
Vacuum Cleaner
Language
English
