29

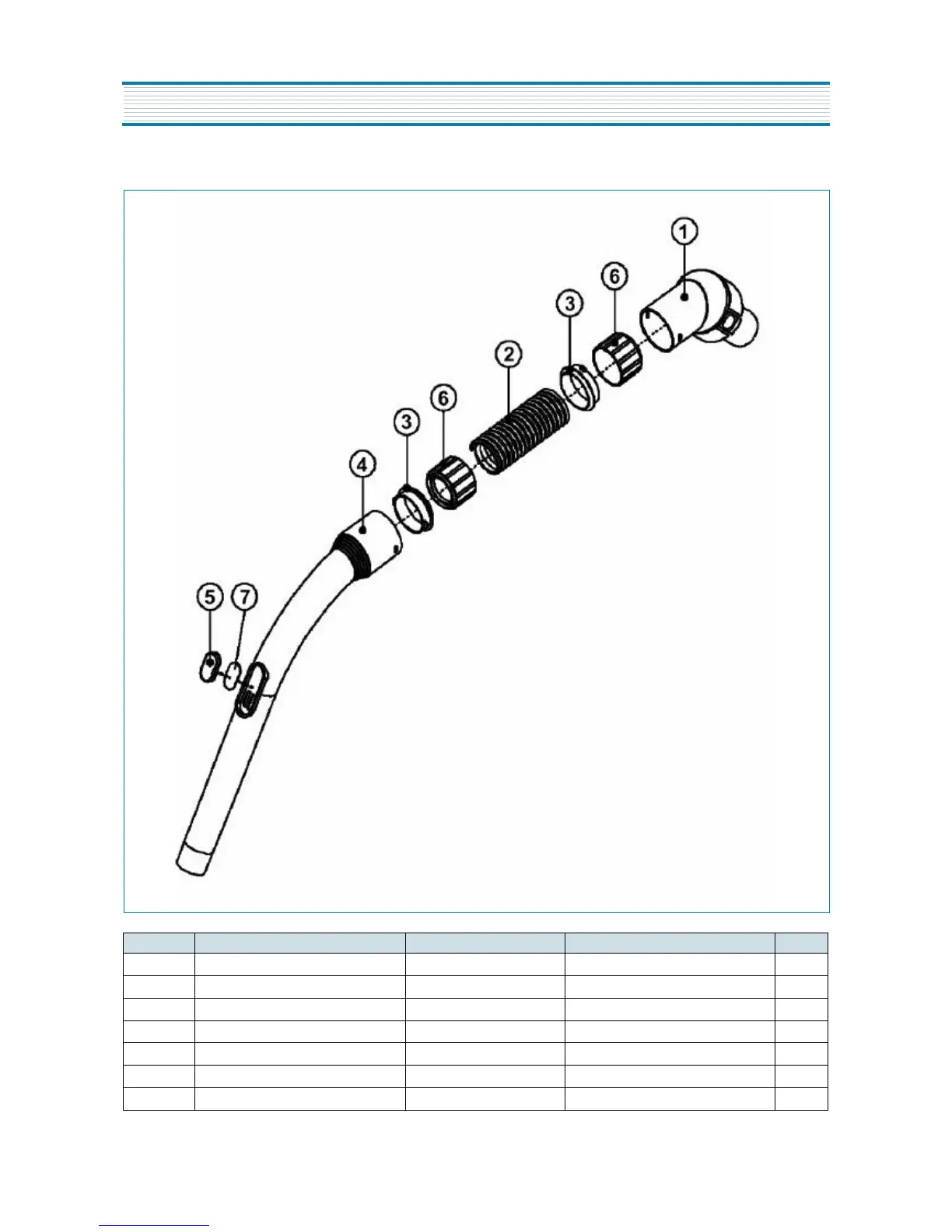

6-6. HOSE ASSEMB
LY(3623206200)
NO
PART NAME
PART CODE
SPECS.
Q'YT
1
PIPE ADAPTER
3629101700
PP
1
2
HOSE
3623206300
EVA 1.6m (Non-Current)
1
3
HOLDER HOSE
4569A71021
PP
2
4
PIPE HOSE
3624408200
PP
1
5
VALVE AIR
3625400400
PP
1
6
CUFF HOSE
3626800200
LDPE
2
7
PACKING HOSE
3624005900
SPONGE
1
EXPLODED VIEW AND PARTS LIST
29
31
Table of Contents
Default Chapter
2
Table of Contents
2
1 Specifications
3
2 External View
3
Assembly
3
Model Rc-320F, Rc-320B, Rc-320S
4
3 Diagram
5
Wiring Diagram
5
Circuit Diagram
7
4 Trouble Shooting Guide
9
5 Disassembling and Treatment
10
Cleaner Assembly
10
Motor Assembly
11
Cord Reel Assembly
12
Cover Dust Assembly
13
Cover Body Assembly
14
6 Exploded View and Parts List
15
Cleaner Assembly
15
Body Assembly
20
Cover Assembly
22
Motor Assembly
24
Cord Reel Assembly
27
Hose Assembly
30
Brush Assembly
31
Pipe Assembly
33
