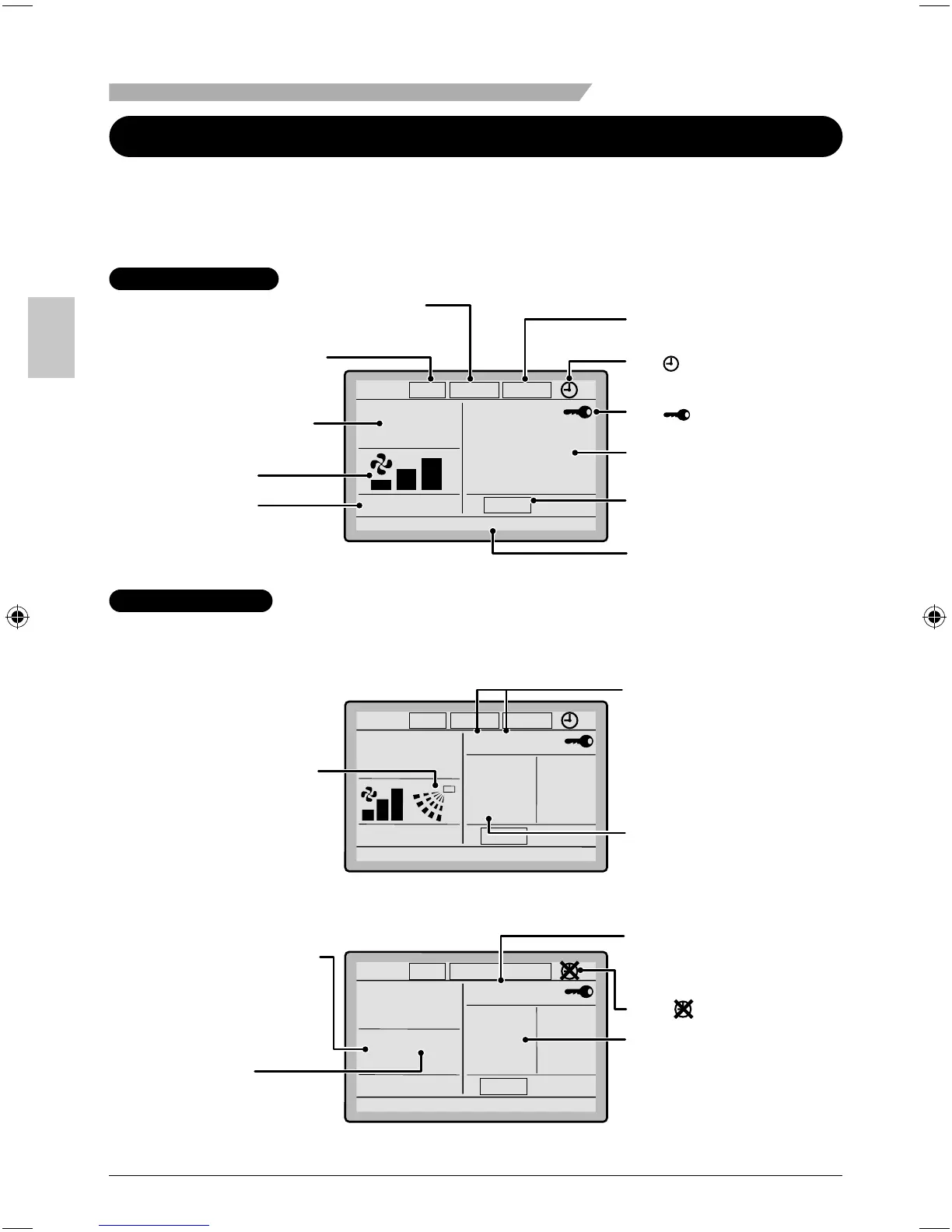

Liquid Crystal Display
Two types of liquid crystal display (LCD) are available. The standard display is set by default. ●
Detailed display can be selected in the main menu. ● (See page 37.)
The displayed contents of the screen vary with the operation mode of the indoor unit model. (The ●
following display will appear when the indoor unit is in automatic operation.)
Standard display
Set to
Cool
Heat
74F
70F
Auto
This function is not available
<Standard display example>
6. Ventilation
2. Fan Speed
1. Operation mode
11.Setback
7. ( ) display
3. Setpoint display
4.
Stand by for Defrost/
Hot start
5. Message
10. Changeover controlled by
the master indoor unit
9.Under centralized
control
8. ( ) display
AUTO
ERV
AIR
PURIFY
CENTRAL
CONTROL
MASTER
CONTROLLED
SETBACK
STANDBY
Detailed Display
The air fl ow direction, clock, and detailed selection items appear on the detailed 
display screen in addition to the items appearing on the standard display.
Cool
Heat
74 F
70 F
Room
Fri
11
:
03
A
Set to
74
F
Auto
Return Setting
14. Detailed selection
12.
Air Flow Direction
(Displayed only when
the air conditioner is in
operation.)
13. Current Day/time
(12/24 hour time
display)
<Detailed display example 1>
AUTO
ERV
AIR
PURIFY
CENTRAL
CONTROL
MASTER
CONTROLLED
SETBACK
STANDBY
Auto
Return Setting
<Detailed display example 2>
No Air Flow
Direction display
(with no air flow direction
settings)
No Fan speed display
(with no fan speed
control function)
No Detailed item display
(with no detailed items
selected)
No Clock display
(when the clock has
not been set)
15. ( ) display
--
:
--
CENTRAL
CONTROL
MASTER
CONTROLLED
SETBACK
AUTO
ERV
AIR
PURIFY
STANDBY
Names and Functions
