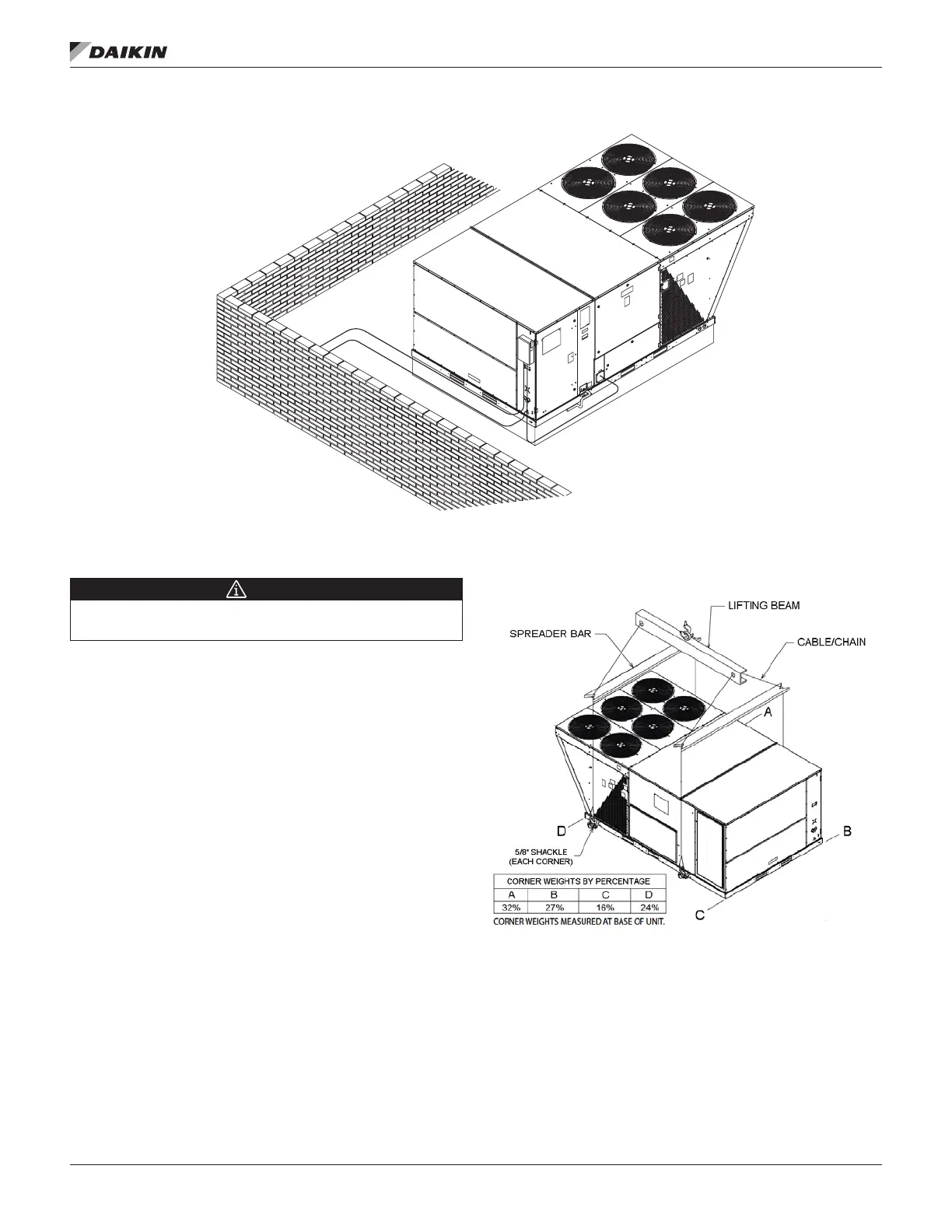

Figure 4: Unit Mounted on Roofcurb
Rooftop Installation
NOTICE
If unit will not be put into service immediately, block off supply and return air
openings to prevent excessive condensation.
1. Before locating the unit on the roof, make sure that
the roof structure is adequate to support the weight
involved. (See “Wiring Diagrams” & “Physical Data” in
this manual.) THIS IS VERY IMPORTANT AND THE
INSTALLER’S RESPONSIBILITY.
2. Remove shipping boards.
3. For rigging and roof curb details, see Figure 5 and Figure
6.
4. The location of the unit on the roof should be such as to
provide proper access for inspection and servicing.
Figure 5: Lifting Detail
