Daikin RXS09LVJU Service Manual

SiUS091133 Indoor Unit: FTXS09/12LVJU
Removal Procedure 158
3. Remove the Titanium
apatite photocatalytic air-
purifying filters.
1
The Titanium apatite
photocatalytic air-
purifying filter ASSY is
attached to the back of
the air filter.
 The right and left filters are
interchangeable.
2
Remove the Titanium
apatite photocatalytic
air-purifying filter ASSY
by unfastening the
projections from the
back of the air filter
frame.
3
Unfasten the 5 hooks
and remove the
Titanium apatite
photocatalytic air-
purifying filter from its
frame.

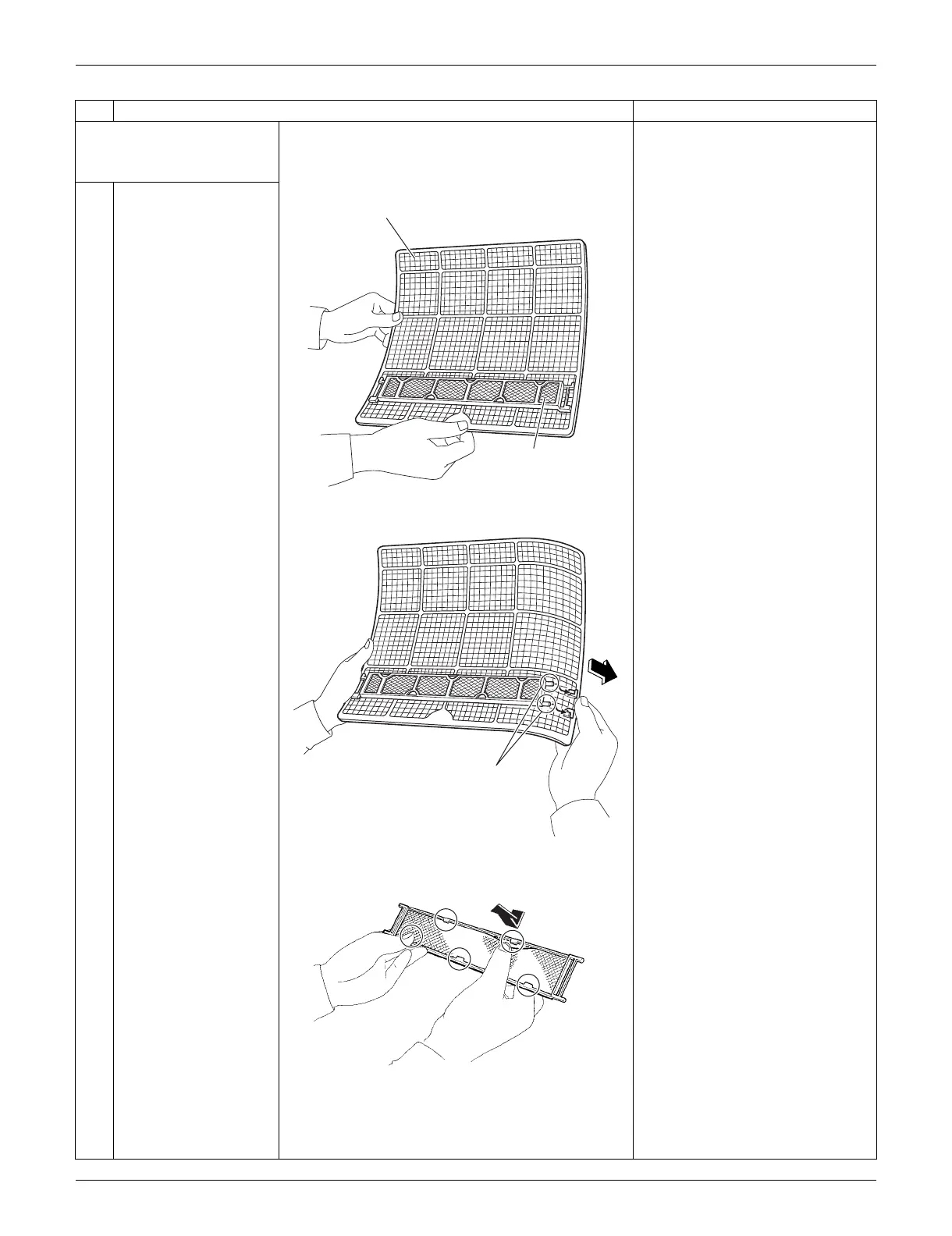

Step
Procedure Points
(R7904)
Air filter
Titanium apatite
photocatalytic
air-purifying filter ASSY
(R13487)
Projection
(R13174)
