SiUS091133 Outdoor Unit: RXS15/18LVJU
Removal Procedure 290
5. Outdoor Unit: RXS15/18LVJU
5.1 Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

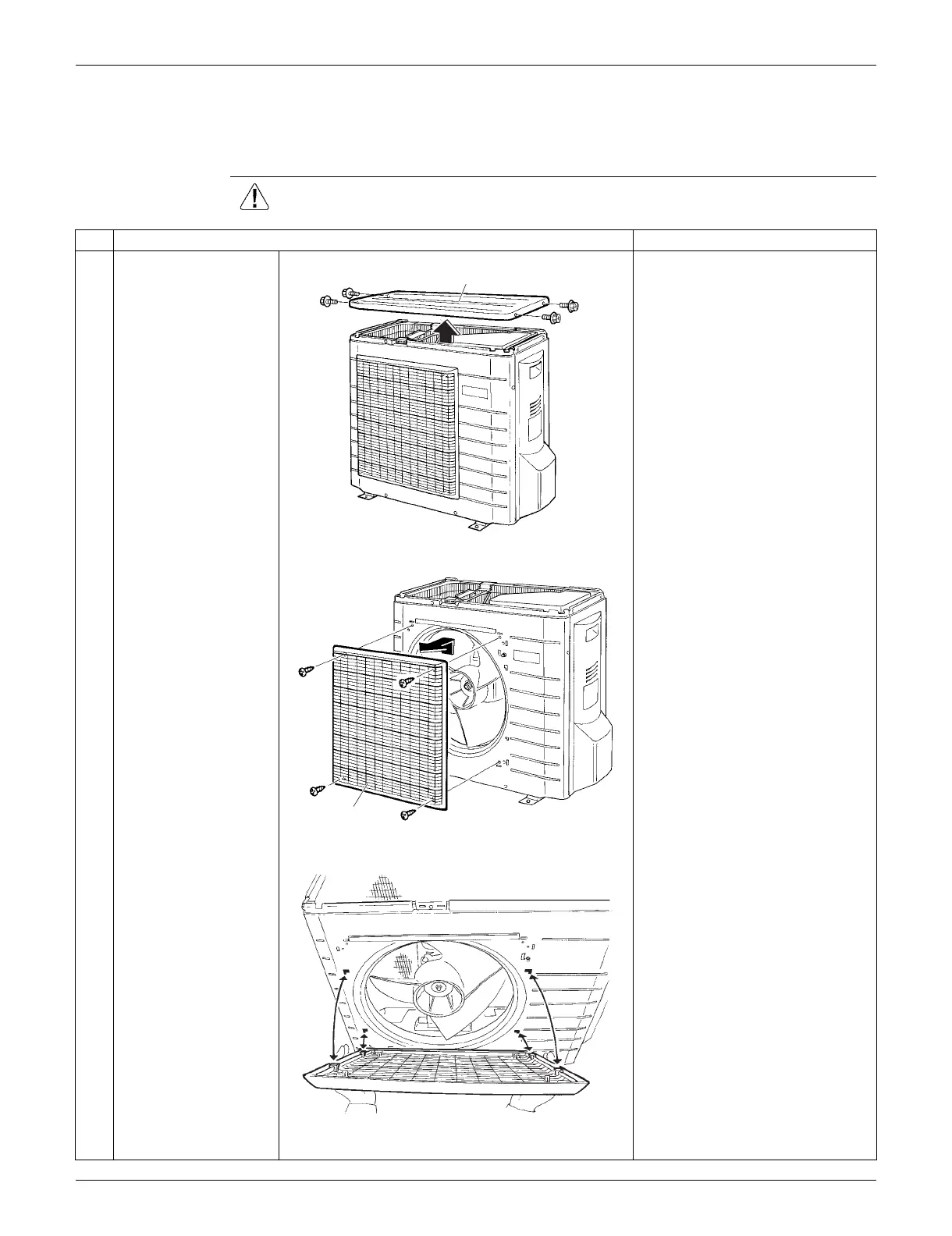

1
Remove the 4 screws
and remove the top
panel.
Take care not to cut your finger
by the fins of the outdoor heat
exchanger.
2
Remove the 4 screws
and remove the
discharge grille.
Slide the discharge grille
upward and remove it.
The discharge grille has 4
hooks.
To Next Page
