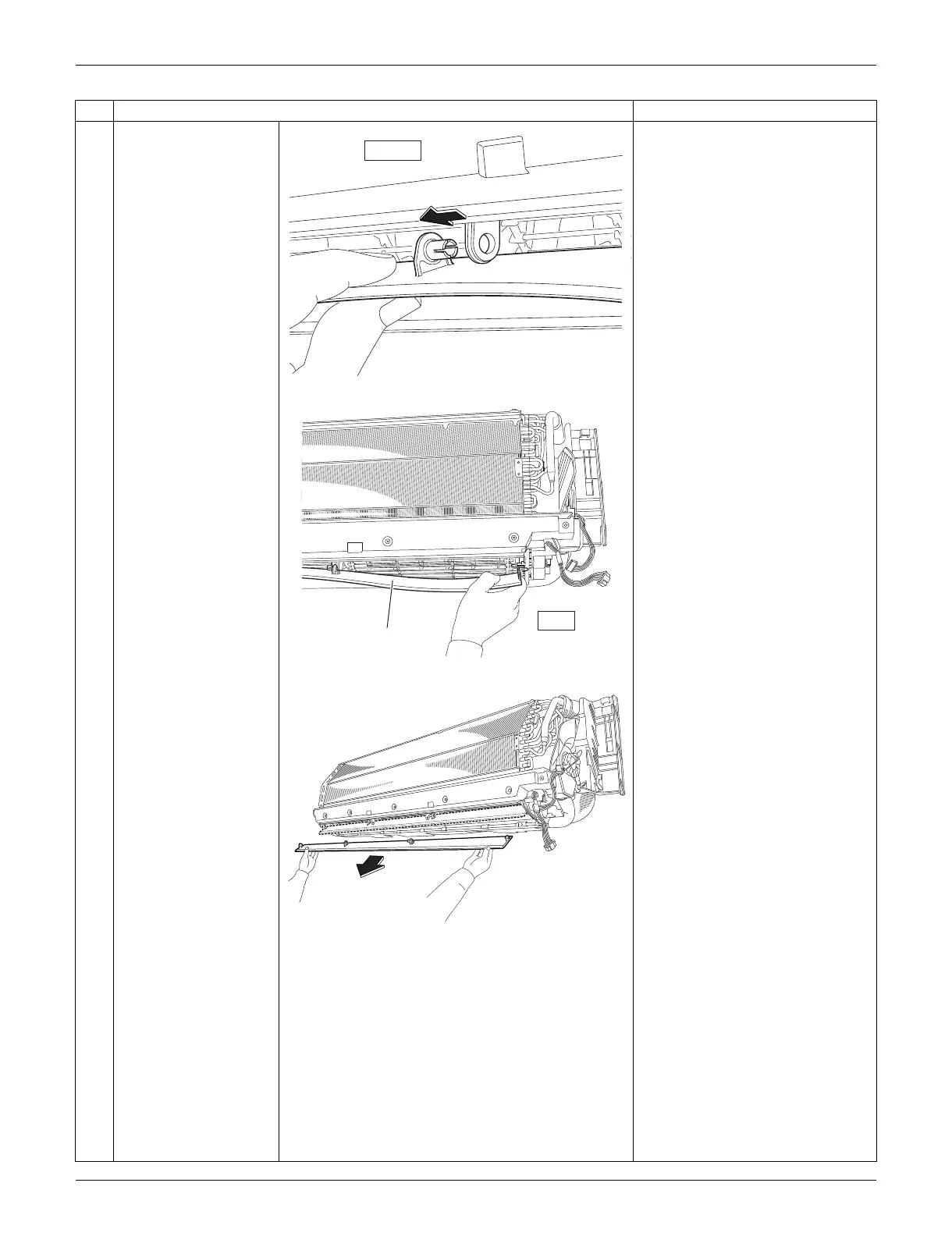

SiUS091133 Indoor Unit: FTXS15/18/24LVJU
Removal Procedure 206
3
Remove the horizontal
blade.
Remove both the horizontal
blades (upper and lower) in the
same way.
Step
Procedure Points
inner left
(R9538)
right
Horizontal
blade
(R9535)
