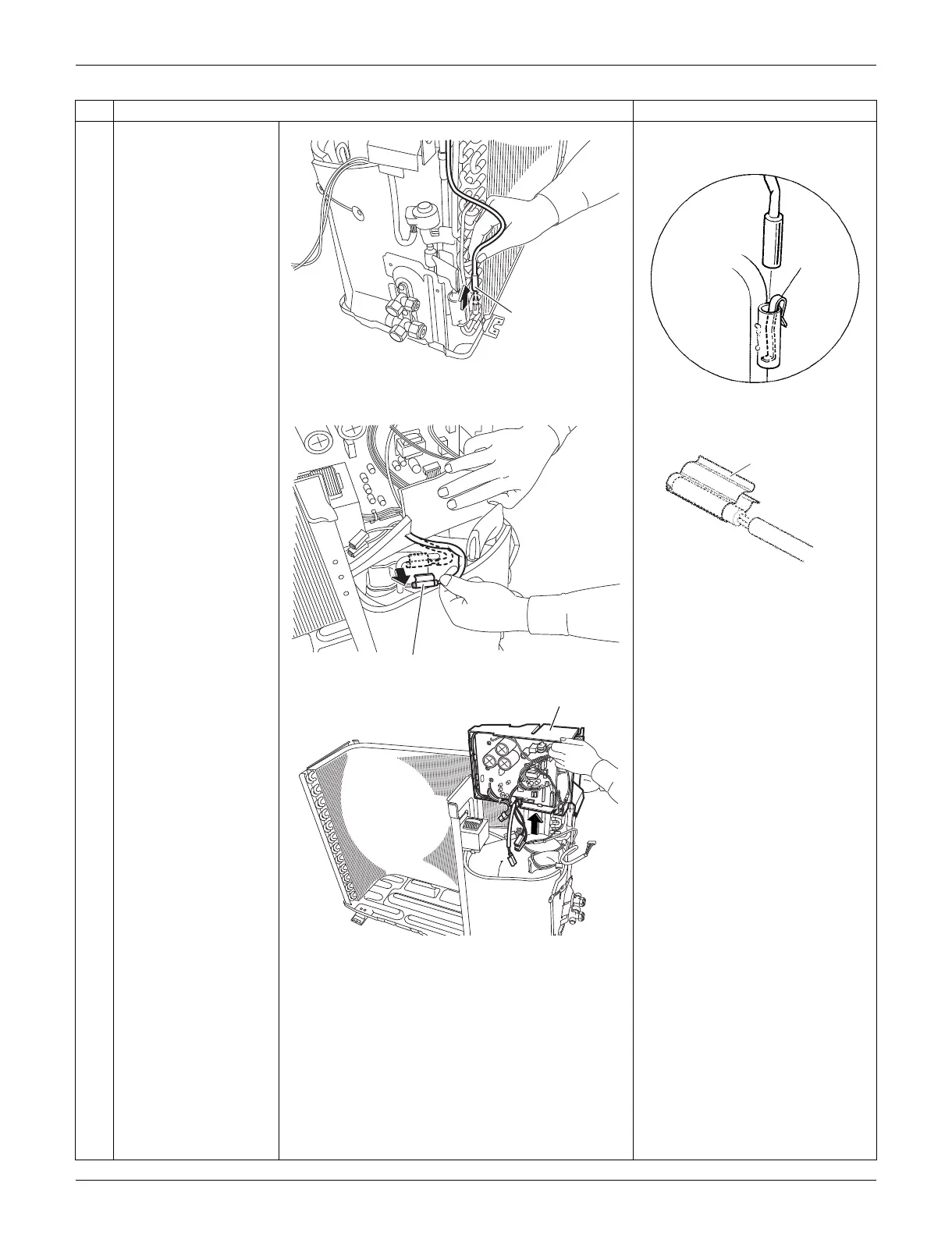

SiUS091133
Outdoor Unit: RXS09/12LVJU
Removal Procedure
272
7
Pull out the outdoor
heat exchanger
thermistor.
Be careful not to lose the clip for
the thermistor.
8
Release the discharge
pipe thermistor.
Be careful not to lose the clip for
the thermistor.
9
Lift and remove the
electric
al box
.
Step
Procedure
Points
Outdoor heat
exchanger thermistor
(R16995)
Clip
(R3264)
Discharge pipe thermistor
(R11849)
(R12279)
Clip
Electrical Box
(R16996)
