Internal Fan Isolation Assembly Adjustment
NOTICE
Fan assemblies with internal isolation are locked down for
shipment. The assembly is secured at four location. On
units with internally isolated fan and motor assemblies, the
assemblies are secured for shipment. Make sure all shipping
brackets are removed before installation and while there is
access to both sides of the unit.
Remove the shipping brackets and tie-down bolts (see Figure
35 and Figure 36) and discard. The shipping brackets located
on the opposite drive side of the unit are dicult to access from
the drive side of the unit. Either remove them before the unit is
assembled, or remove the panel on the opposite drive side to
gain access.

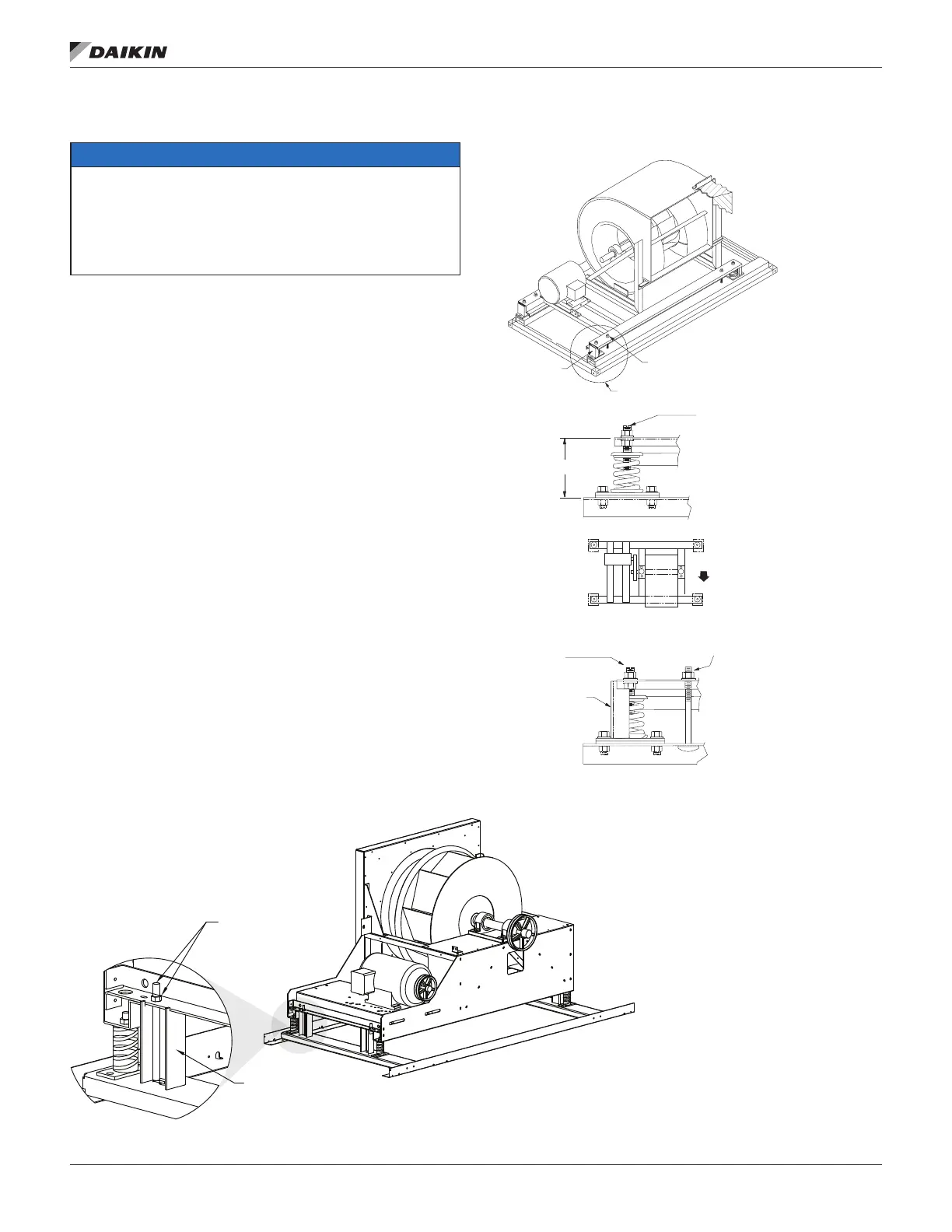

Figure 35: Removing Shipping Brackets
Figure 36: Class II Belt-Drive Fan Shipping Bracket
Shipping hold-down nut and bolt
Remove and discard - 4 places
Shipping bracket -
Remove and discard - 4 places
