Daikin VRV IV+ User Manual

26 | Technical data
Installer and user reference guide
165
REYQ8~20+REMQ5U7Y1B
VRV IV+ heat recovery
4P561154-1A – 2020.10

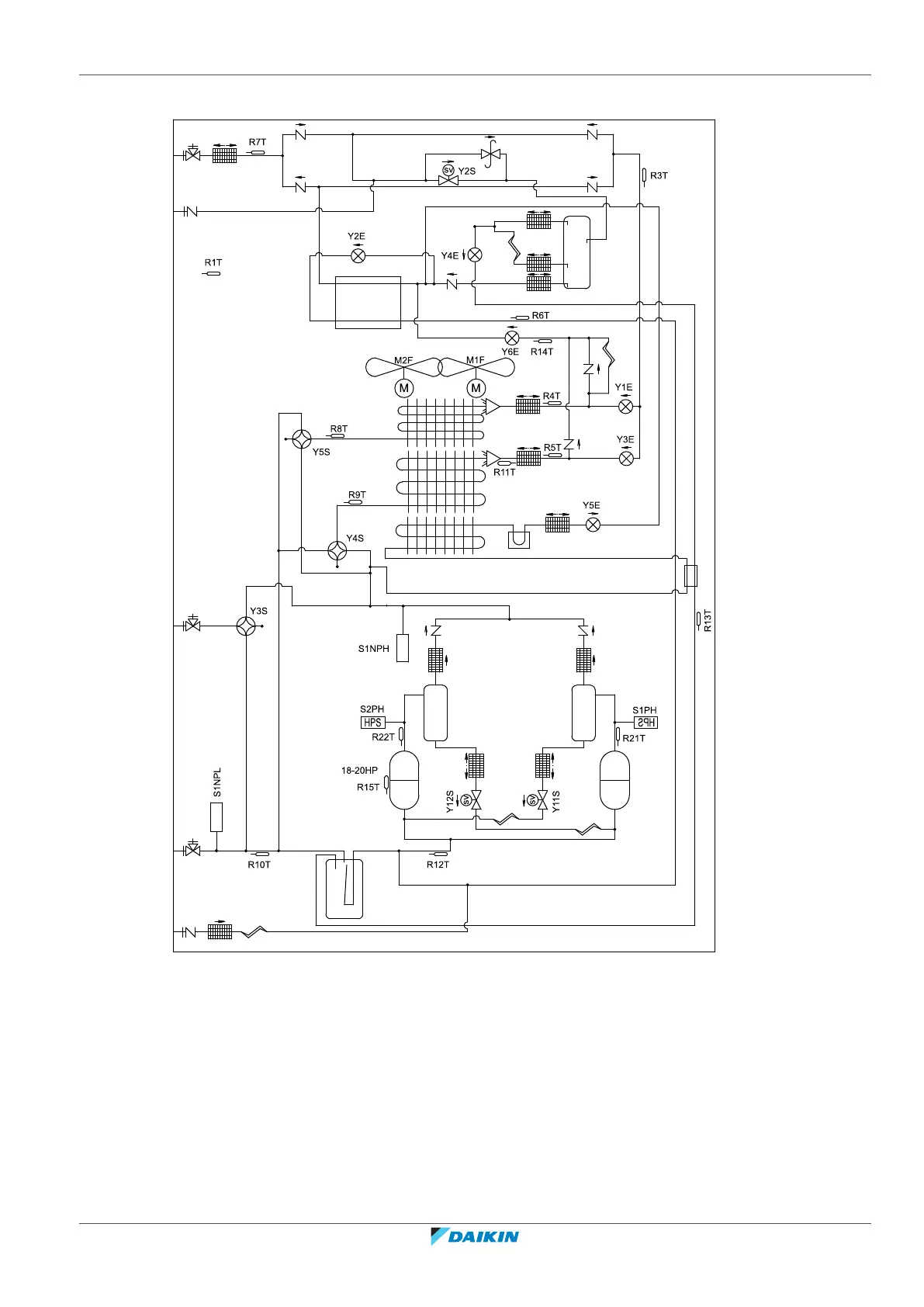

Piping diagram: 14~20 HP
a
b
d
e
c
a Stop valve (liquid)
b Service port
c Stop valve (high pressure/low pressure)
d Stop valve (gas)
e Charge port

Daikin VRV IV+ Specifications

General

Type	VRV (Variable Refrigerant Volume)
Series	VRV IV+
Refrigerant	R-410A
Energy Efficiency	High
Inverter Technology	Yes
Operating Temperature Range (Cooling)	-5°C to 46°C
Cooling Capacity Range	22.4 kW - 168 kW
Indoor Unit Compatibility	Wide range
Maximum Piping Length	Up to 1000 m
Power Supply	380-415V, 50Hz, 3-phase
Maximum Height Difference	Up to 50 meters
