Daikin VRV IV+ User Manual

17 | Unit installation
Installer and user reference guide
69
REYQ8~20+REMQ5U7Y1B
VRV IV+ heat recovery
4P561154-1A – 2020.10
NOTICE
▪ Prepare a water drainage channel around the foundation to drain waste water
from around the unit. During heating operation and when the outdoor
temperatures are negative, the drained water from the outdoor unit will freeze
up. If the water drainage is not taken care of, the area around the unit might be
very slippery.

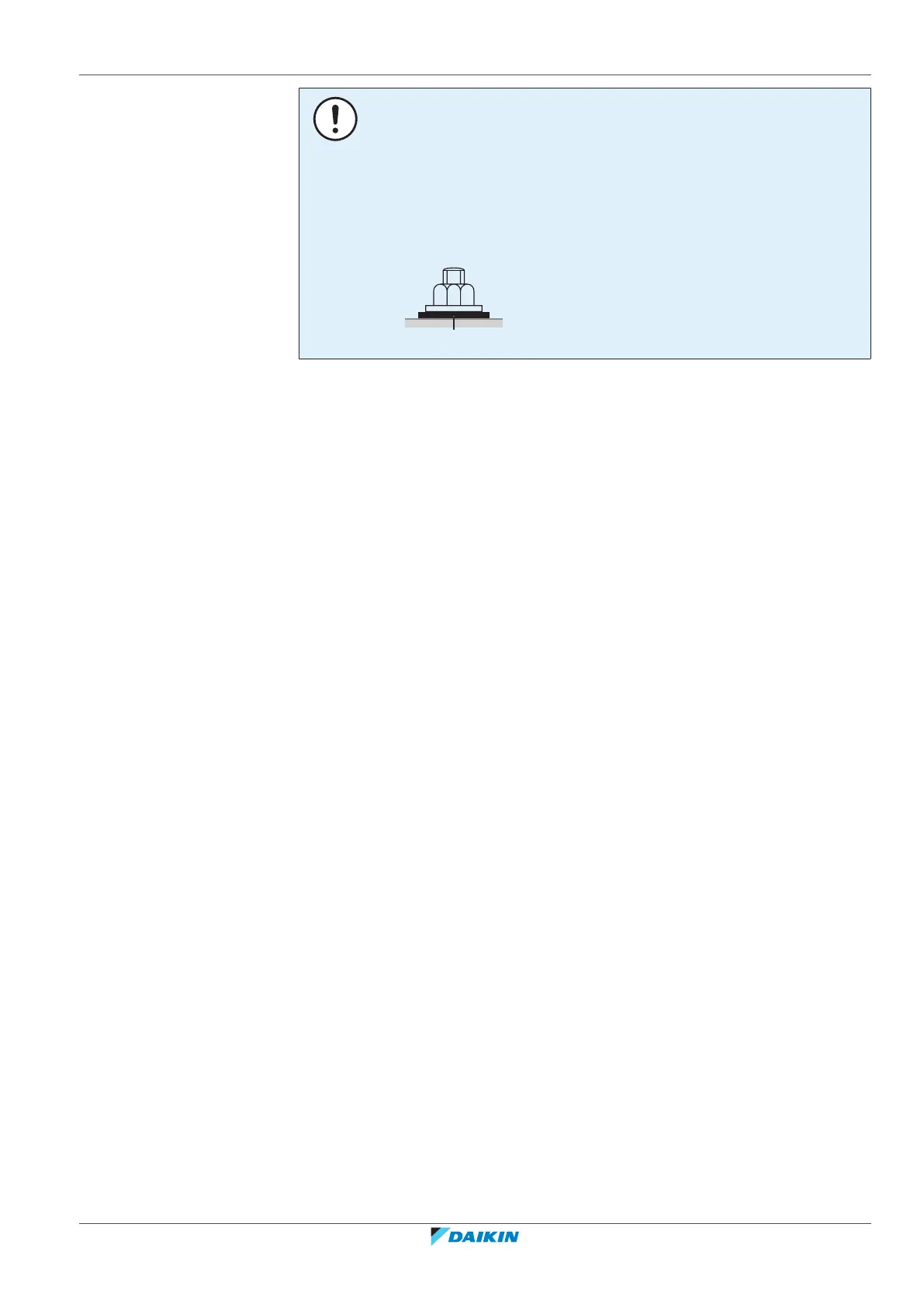

▪ When installed in a corrosive environment, use a nut with plastic washer (a) to
protect the nut tightening part from rust.
a

Daikin VRV IV+ Specifications

General

Type	VRV (Variable Refrigerant Volume)
Series	VRV IV+
Refrigerant	R-410A
Energy Efficiency	High
Inverter Technology	Yes
Operating Temperature Range (Cooling)	-5°C to 46°C
Cooling Capacity Range	22.4 kW - 168 kW
Indoor Unit Compatibility	Wide range
Maximum Piping Length	Up to 1000 m
Power Supply	380-415V, 50Hz, 3-phase
Maximum Height Difference	Up to 50 meters
