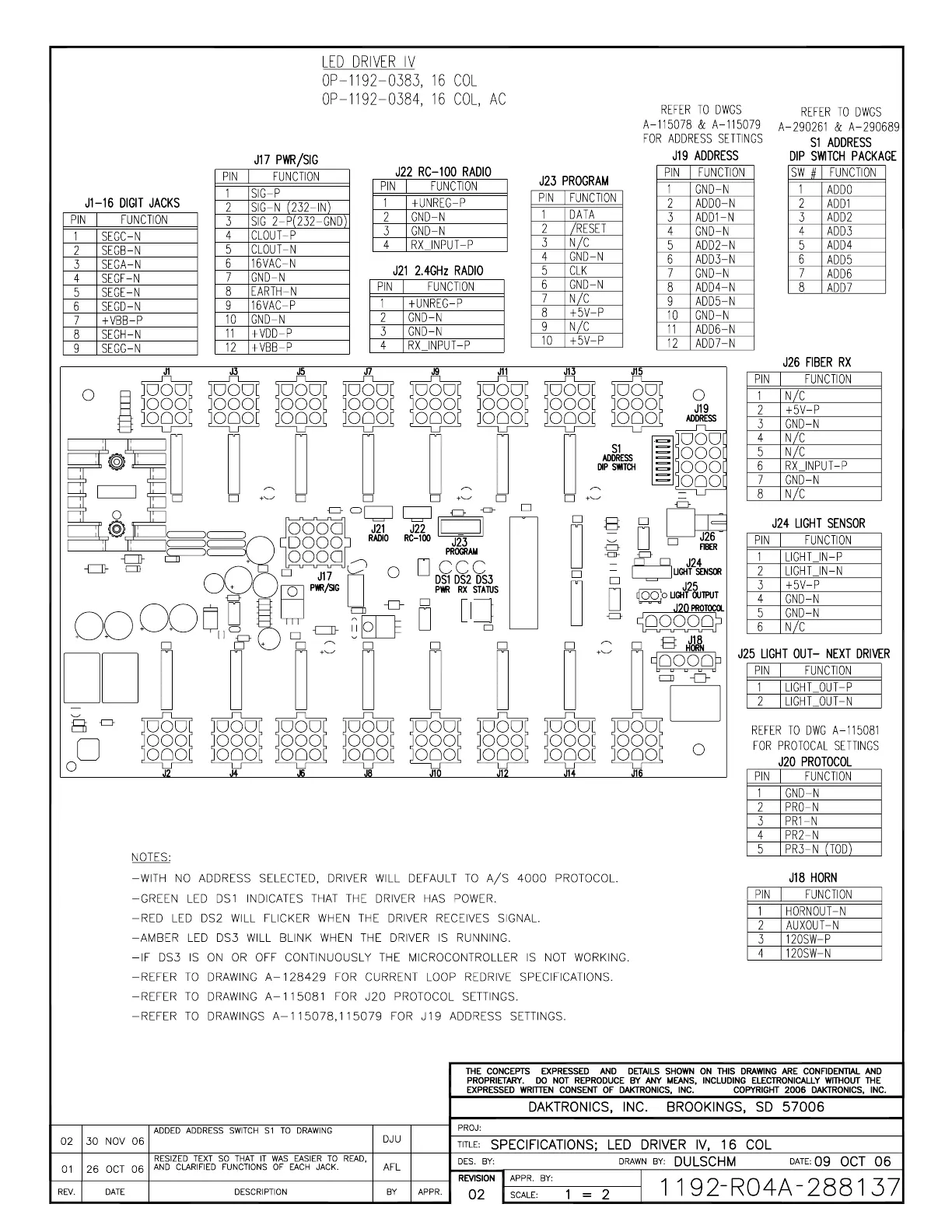

Removing/Changing the Controller
LED Color Function Operation Summary
DS1 Red CL signal
RX
Steady on
or blinking
DS1 will be on or blinking when the
driver is receiving signal and off
when there is no signal.
DS2 Green CL signal
TX
Steady on
or blinking
DS2 will be on or blinking when the
driver is receiving signal and off
when there is no signal.
DS3
(Not used
with TNMC
functions)
Red CAN signal Steady on
or blinking
DS3 will be blinking when the driver
is receiving signal and on when
there is no signal with CAN
(controller area network).
If there is no CAN device connected
to TB1, both DS3 and DS4 will be
on and steady.
DS4
(Not used
with TNMC
functions)
Green CAN signal Steady on
or blinking
DS4 will be blinking when the driver
is receiving signal and on when
there is no signal with CAN
(controller area network).
If there is no CAN device connected
to TB1, both DS3 and DS4 will be
on and steady.
DS5
(Not used
with TNMC
functions)
Red RS-232
signal
Steady on
or blinking
DS5 will be on or blinking when the
driver is receiving signal and off
when there is no signal with
RS-232.
DS6
(Not used
with TNMC
functions)
Green RS-232
signal
Steady on
or blinking
DS6 will be on or blinking when the
driver is receiving signal and off
when there is no signal with
RS-232.
DS7 Green Power Steady on DS7 will be on and steady indicating
the driver has power.
TNMC Maintenance 9-5
