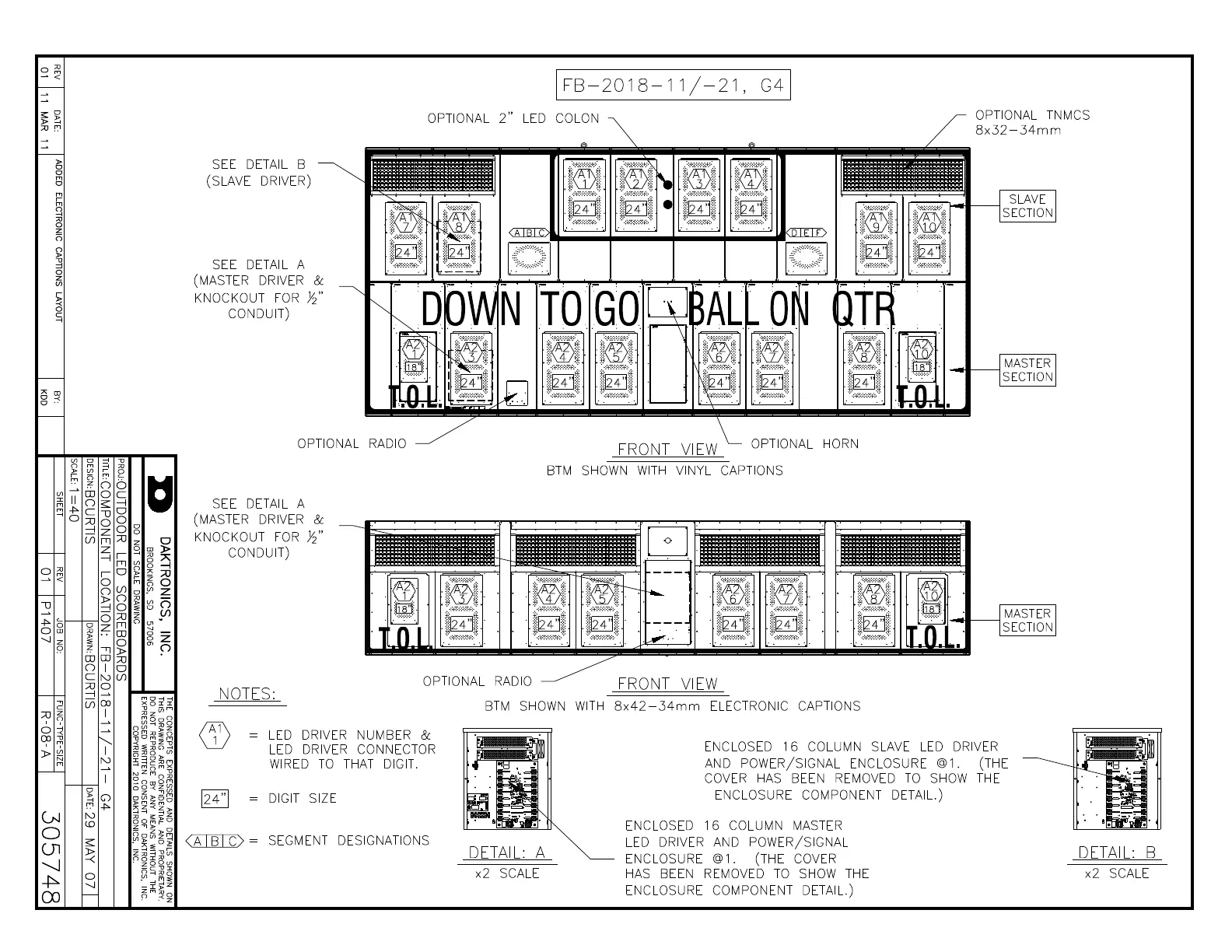

10.2 Trumpet Horn
Trumpet horn options are available for installation only on scoreboards that have clocks.
There are two types of trumpet horns:
Internally mounted 120 V trumpet horn
Externally mounted 12 V DC trumpet horn
For additional information on the Trumpet Horn please refer to the Trumpet Horn:
Installation Manual, ED-10006.
Reference Drawings:
Schematic, Outdoor Scbd
12 V DC Trumpet Horn AS5K .................. Drawing A-128938
Schematic; 120 V AC Trumpet Horn............... Drawing A-132173
120 V DC Horn Mounting ................................ Drawing A-162100
F.Assy; LED, 12V DC Horn Mounting ............. Drawing B-242731
Trumpet Horn Part Numbers
Part Description Part Number
Typical Model
Usage
120 V AC Trumpet Horn
Bottom Extrusion Mounting,
See Drawing A-162100
Left most illustration
0A-1091-0469 MS-2009, MS-2020,
SO-2011
12 V DC Trumpet Horn, AS5000;
Outdoor
See Drawing A-162100
Right most illustration
0A-1092-1112 FB-1424, FB-1430, FB-
1530, FB-1624, FB-
1630, FB-1630L, FB-
1730, FB-1830, FB-
1830L, FB-2001, FB-
2002, FB-2003, FB-
2004, FB-2007, MS-
2118, MS2918, SO-
1424, SO-1624, SO-
1830L, SO-1930, SO-
2014, SO-2030
12 V DC Trumpet, AS5000 0A-1191-1213 FB-1424, FB-1430, FB-
1530, FB-1624, FB-
1630, FB-1630L, FB-
1730, FB-1830, FB-
1830L, FB-2001, FB-
2002, FB-2003, FB-
2004, FB-2007, MS-
2118, MS2918, SO-
1424, SO-1624, SO-
1830L, SO-1930, SO-
2014, SO-2030
10.3 Radio Control
Radio control is an option with all Daktronics outdoor LED scoreboards, the system providing
scoreboard control via a 2.4 GHz, extra-high frequency FM signal.
10-2 Scoreboard Options
