Danfoss H1B 060 Service Manual

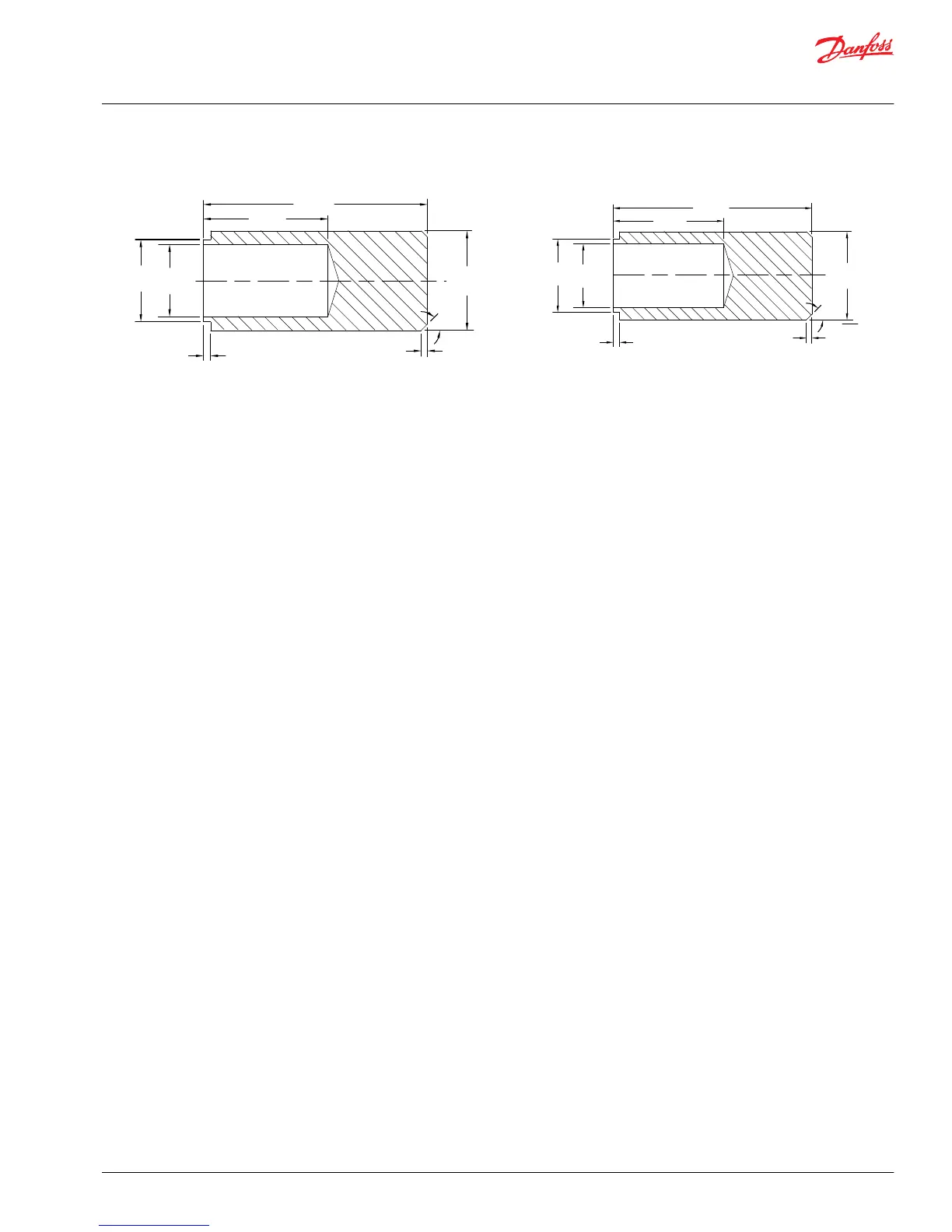

110/160/210/250 - Seal installation tool dimensions, 060/080 - Seal installation tool dimensions
P107 738E
180 mm
[7.09 in]
82 mm
[3.15 in]
5 mm
[0.2 in]
45°
5.15 mm
100 mm
[3.94 in]
69 mm
[2.6 in]
58 mm
[2.3 in]
+ 0.10
- 0.0
[0.20 in
+ 0.004
- 0.0
]
150 mm
[5.90 in]
70 mm
[2.76 in]
5 mm
[0.2 in]
45°
5.4 mm
100 mm
[3.94 in]
56 mm
[2.2 in]
48 mm
[1.9 in]
+ 0.10
- 0.0
[0.21 in
+ 0.004
- 0.0
]
Service Manual
H1 Bent Axis Motors, Size 060/080/110/160/210/250 cm3
Minor repair
©
Danfoss | August 2018 AX00000025en-US0504 | 41
