Danfoss H1B 060 Service Manual

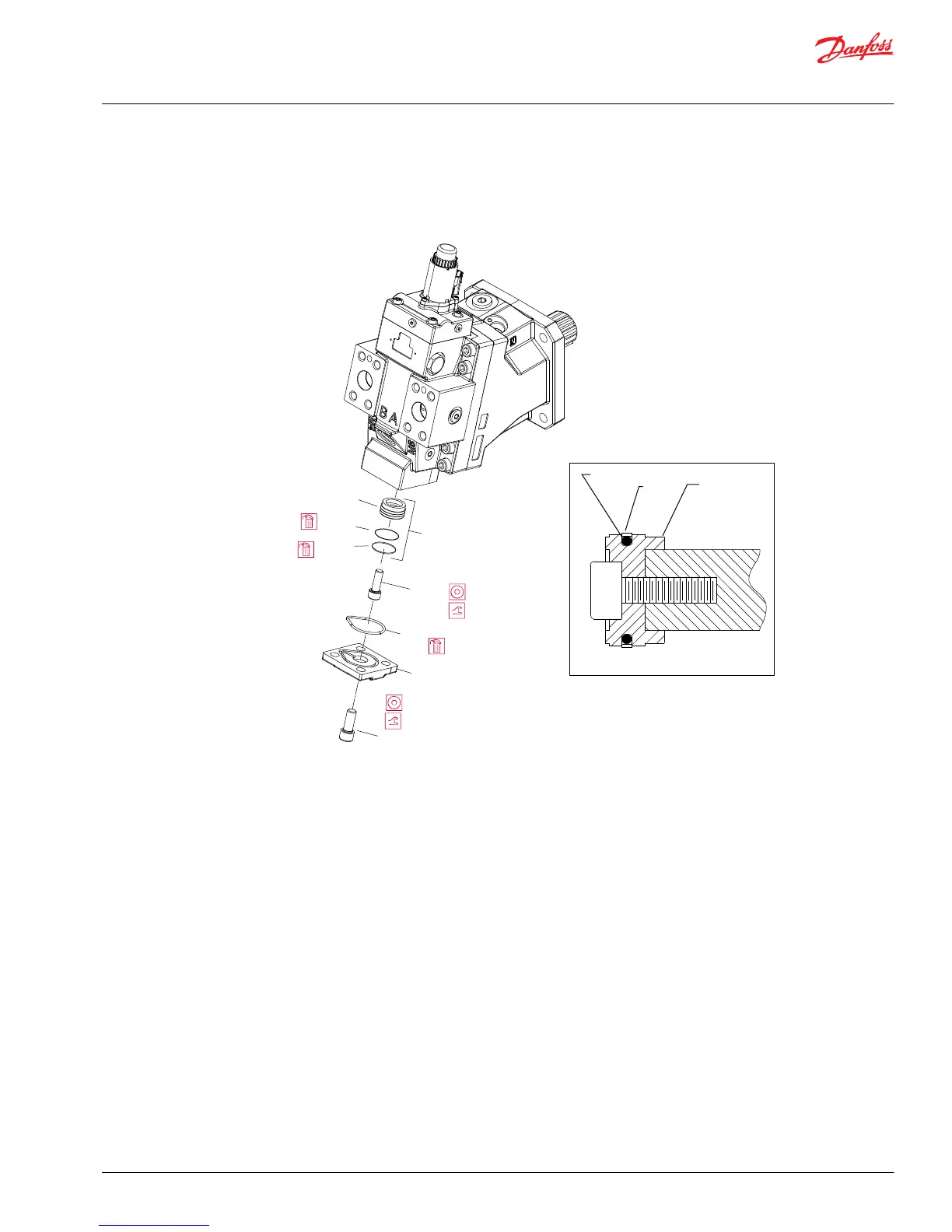

Servo piston cover – proportional control
Removal
P0043
P0050
P0030
P0010
P0020
10 mm
115 N•m [85 lbf•ft]
see table
P0040
P0044
P0041
Seal ring
(P0044)
O-ring
(P0043)
Piston
1. Remove four screws (P0020) using a 10 mm internal hex wrench.
2. Remove servo piston cover (P0010).
3. Remove and discard O-ring (P0030).
4. Remove screw (P0050).
Service Manual
H1 Bent Axis Motors, Size 060/080/110/160/210/250 cm3
Minor repair
©
Danfoss | August 2018 AX00000025en-US0504 | 59
