Danfoss H1B 060 Service Manual

Assembly

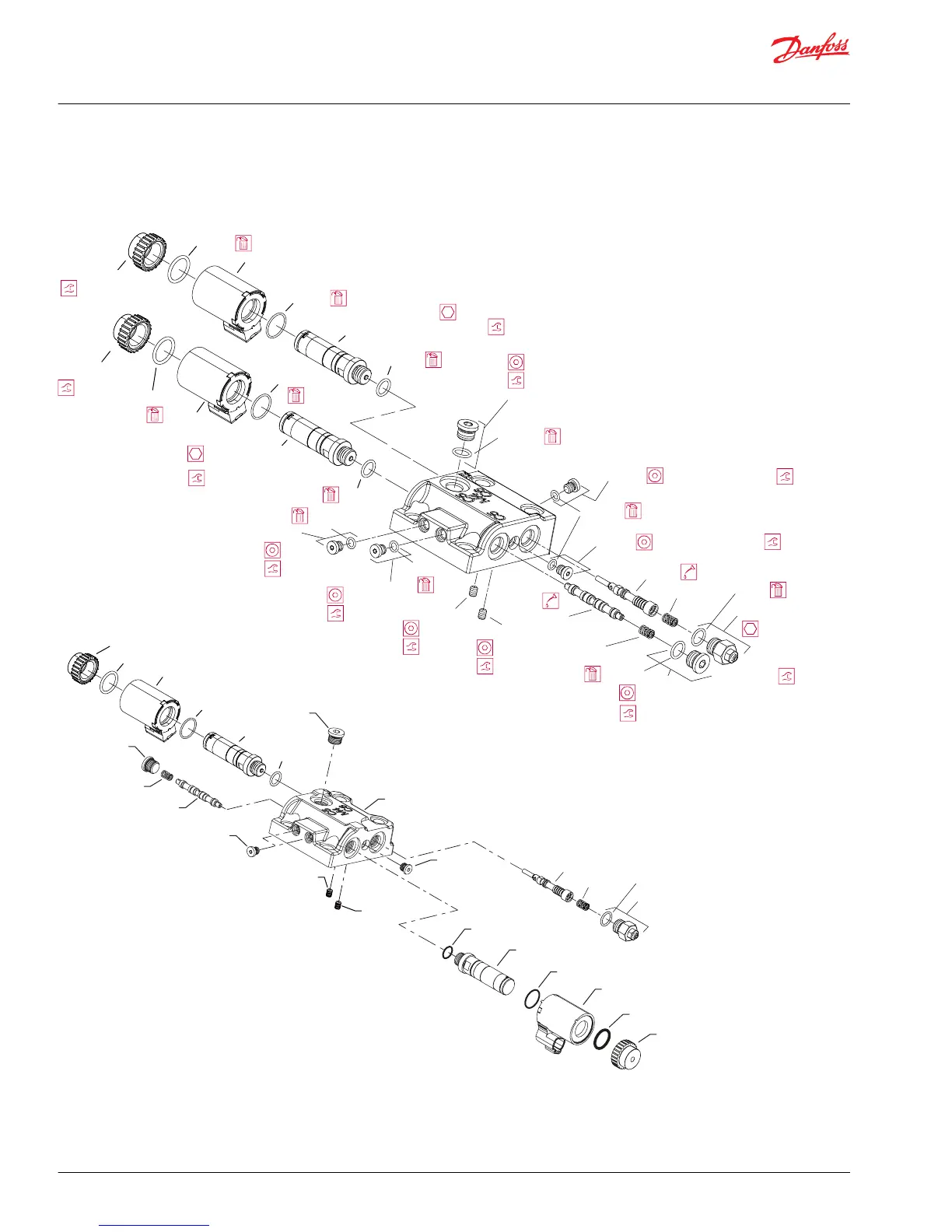

Two-position control assembly
1/8 in
8 N•m [6 lbf•ft]
17 mm
25 N•m [19 lbf•ft]
C0060
C0060A
C0060A
C0060
E00T3
E00T2
C0020
C0030
1/4 in
40 N•m [30 lbf•ft]
C0050
C0050A
1/8 in 8 N•m [6 lbf•ft]
C0060
C0060A
3 mm
6 N•m
[4 lbf•ft]
1/8 in 8 N•m [6 lbf•ft]
C0060
C0070
C0080
C0050
C0050A
17 mm
C0090
M223
1/8 in
8 N•m [6 lbf•ft]
3 mm
6 N•m
[4 lbf•ft]
1/4 in
40 N•m [30 lbf•ft]
25 N•m
[18 lbf•ft]
B0028
B0022
B0024
B0032
B0028
B0022
B0024
B0032
B0034
17 mm
25 N•m [19 lbf•ft]
B0034
B0026
3.5 N•m
[2.6 lbf•ft]
B0026
3.5 N•m
[2.6 lbf•ft]
T*D* and P*D*
C0060
E00T2
E00T3
C0010
C0060
C0050
C0030
C0020
C0050
B0024
B0026
B0028
B0034
T*G* and P*G*
B0022
B0032
B0028
B0022
B0024
B0032
B0034
B0026
C0070
C0080
C0090
M223
Service Manual
H1 Bent Axis Motors, Size 060/080/110/160/210/250 cm3
Minor repair
52 |
©
Danfoss | August 2018 AX00000025en-US0504
