PVG 32 PVED-CC series 5

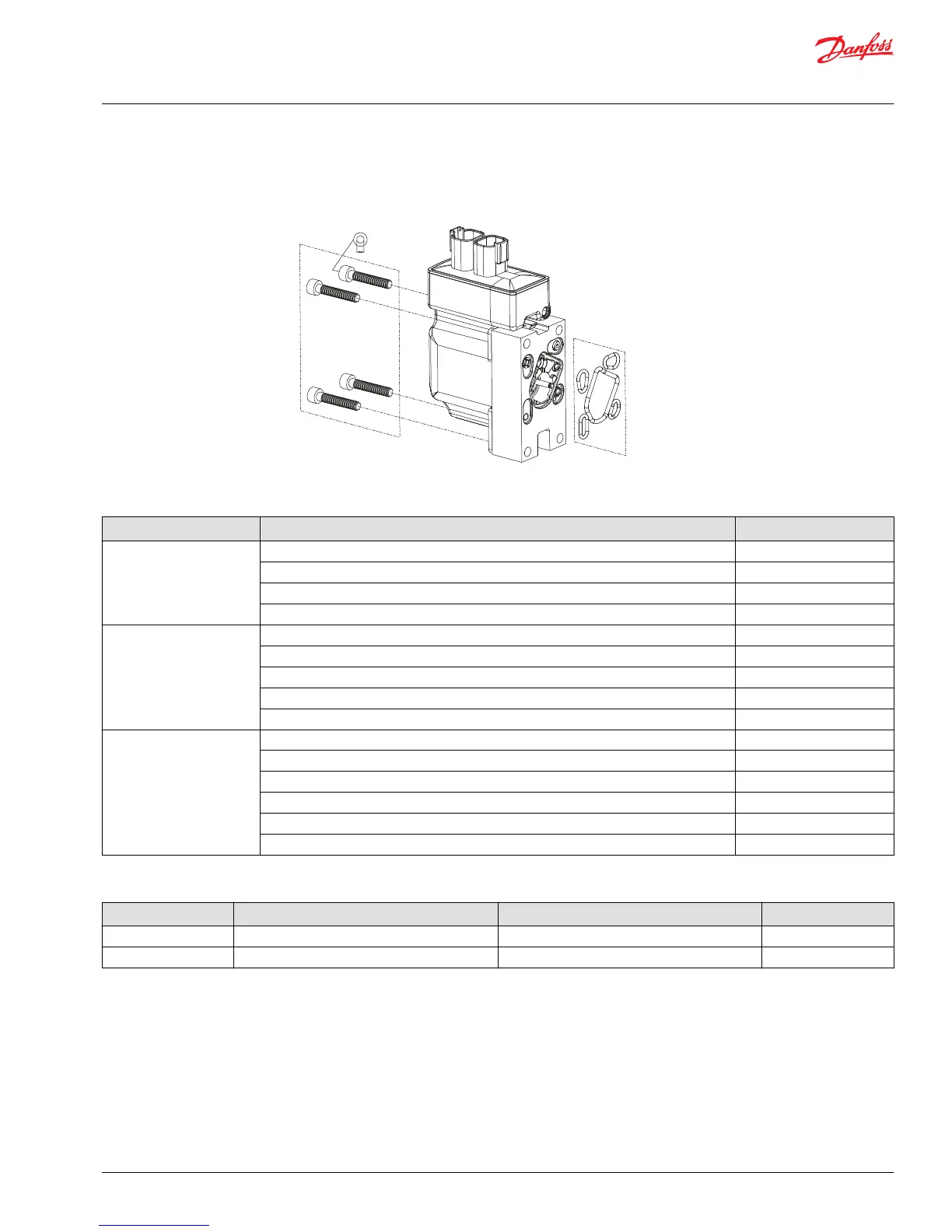

PVED-CC exploded view
1
5 [0.2]
8 ± 0.5 Nm
[70 ± 4.4 lbf in]
2
PVED-CC kits
Type Description Code number
PVED-CC 2x4 DEUTSCH – ISObus 11107869
2x4 AMP – ISObus 11107870
2x4 DEUTSCH – CANopen 11172734
2x4 AMP – CANopen 11169142
Spare parts for DEUTSCH-
connector
4 m cable 11007498
0.1 m loop cable 11007531
0.3 m loop cable 11111916
0.175 m loop cable 11095622
CAN bus terminator 11007561
Spare parts for AMP-
connector
4 m cable with gray connector 157B4994
4 m cable with black connector 157B4995
0.1 m loop cable 157B4987
0.175 m loop cable 11095581
CAN bus terminator with gray connector 11163647
CAN bus terminator with black connector 157B4988
PVED-CC parts list
Item Description Code number Amount
1 Screw - 4
2 Seal kit 157B3999 1
Service and Parts Manual
PVG 16/32/128/256
Service Parts
©
Danfoss | October 2018 AX284661889190en-000101 | 113
