PVG 16 PVM mechanical activation

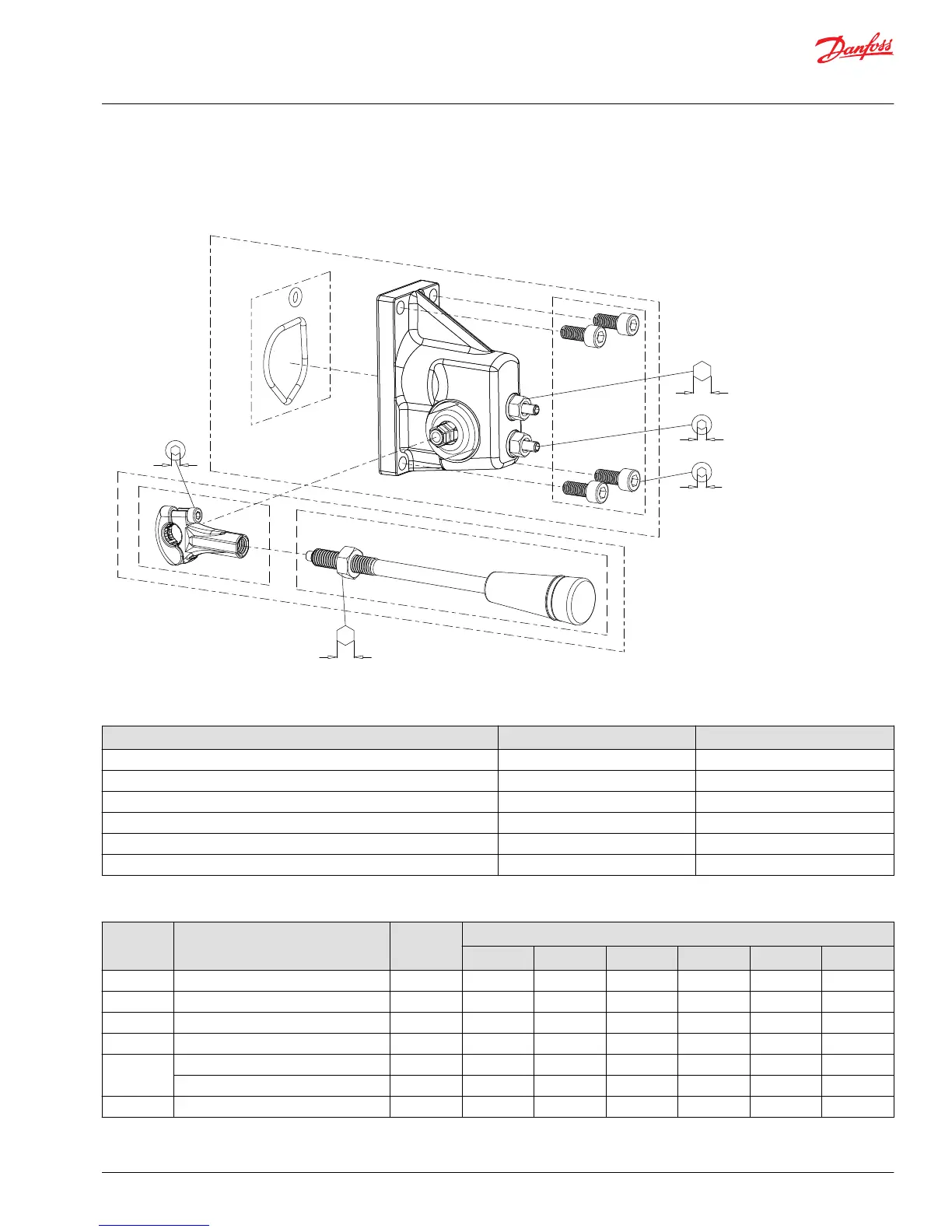

PVM exploded view
5[0.20]
8±0.5Nm
[70±4.5lbf-in]
10[0.40]
6±1Nm
[53±9lbf-in]
3[0.12]
13[0.51]
8±1Nm
[70±9lbf-in]
4[0.12]
2.5±1Nm
[22±9lbf-in]
1
2
3
6
5
4
PVM kits
Description Code number Letter
Non-adjustable 11107505 A
Non-adjustable with float 11107506 B
Non-adjustable with lever base and lever 11107333 C
Non-adjustable with float, lever base and lever 11107335 D
Adjustable 11107507 E
Adjustable with lever base and lever 11107332 F
PVM parts list
Item Description Code
number
Letter
A B C D E F
1 PVM - 1 1 1 1 1 1
2 Seal kit 157B3999 1 1 1 1 1 1
3 Lever base 11064641 - - 1 1 - 1
4 Lever with black knob 11077262 - - 1 1 - 1
5 Lever base and lever with black knob 11107587 - - 1 1 - 1
Lever base and lever with red knob 11134809 - - - - - -
6 Screw M6x15 - 4 4 4 4 4 4
Service and Parts Manual
PVG 16/32/128/256
Service Parts
©
Danfoss | October 2018 AX284661889190en-000101 | 65
